Yamaha WR250F 2003 [227/304] Front brake and rear brake
![Yamaha WR250F 2003 [227/304] Front brake and rear brake](/views2/1012986/page227/bge3.png)
5 - 23
CHAS

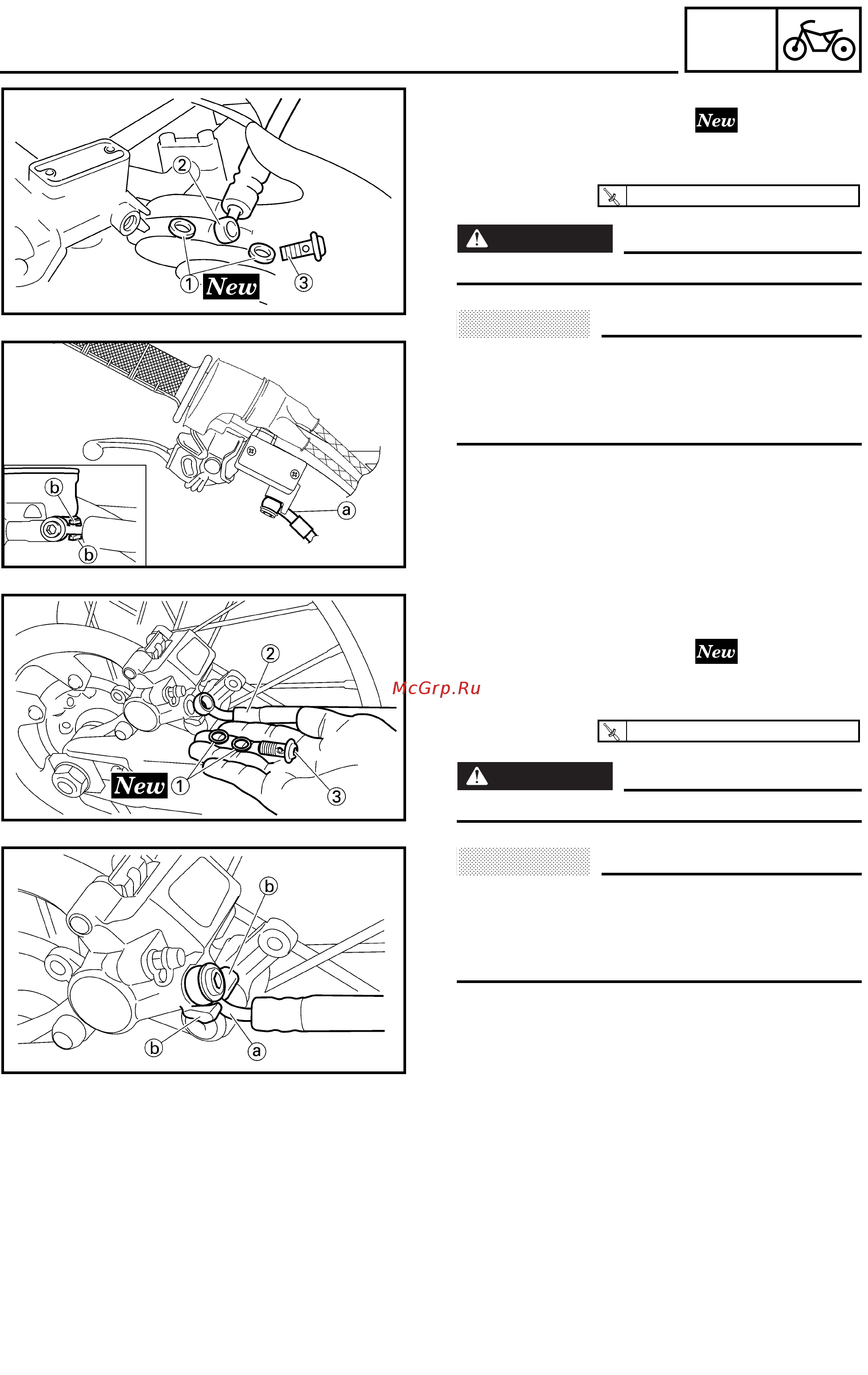

FRONT BRAKE AND REAR BRAKE
4. Install:
● Copper washer 1
● Brake hose 2
● Union bolt 3
WARNING
Always use new copper washers.
ACHTUNG:
CAUTION:
Install the brake hose so that its pipe por-
tion a directs as shown and lightly
touches the projection b on the brake
master cylinder.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
Rear brake hose
1. Install:
● Copper washer 1
● Brake hose 2
● Union bolt 3
WARNING
Always use new copper washers.
ACHTUNG:
CAUTION:
Install the brake hose so that its pipe por-
tion a directs as shown and lightly
touches the projection b on the brake cali-
per.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
