5 - 45
CHAS
EC560000
STEERING

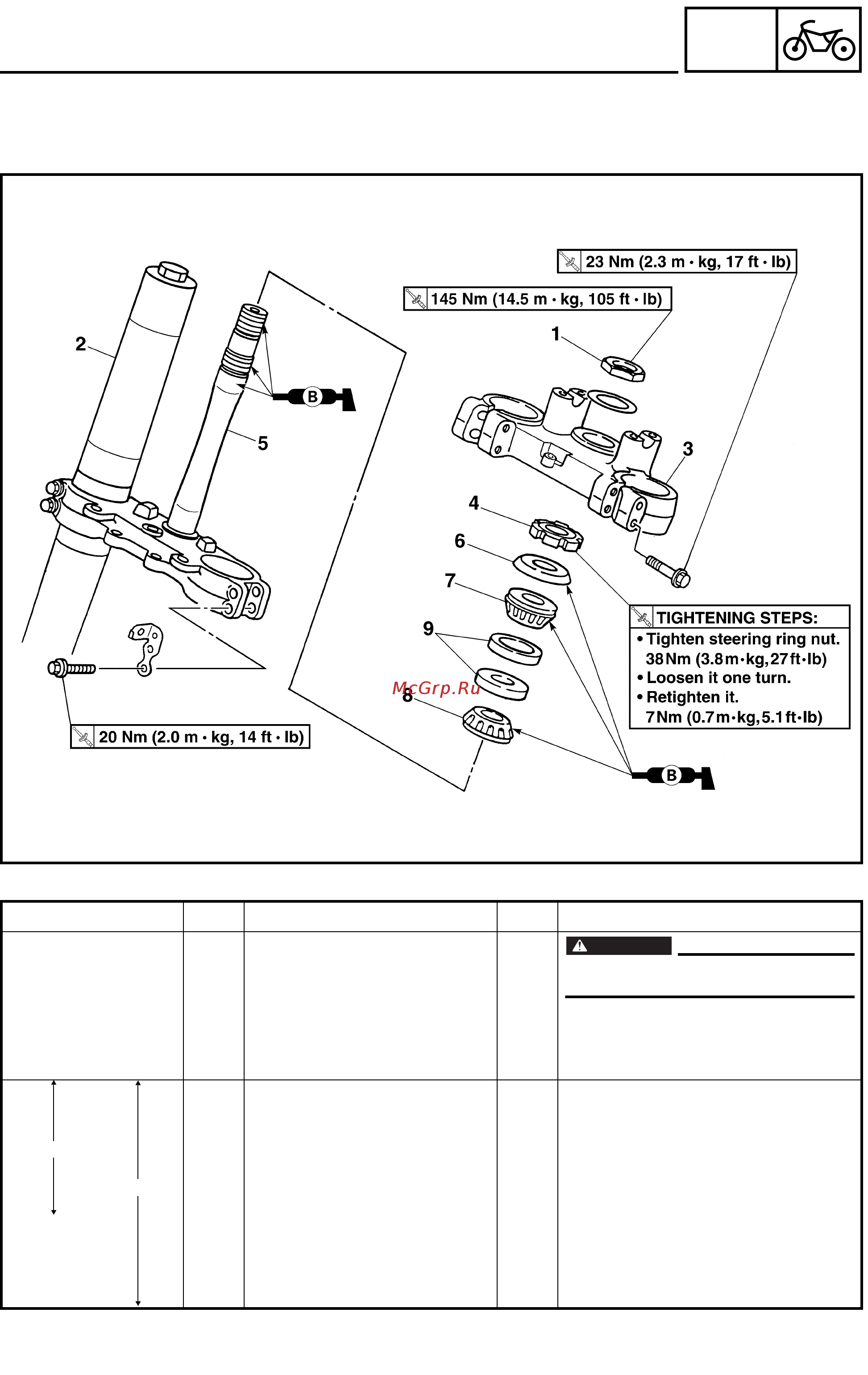

Extent of removal: 1 Lower bracket removal 2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Number plate
Handlebar
Cable guide
Front fender
Refer to “HANDLEBAR” section.
1 Steering stem nut 1
2 Front fork 2 Refer to “FRONT FORK” section.
3 Upper bracket 1
4 Steering ring nut 1 Use special tool.
Refer to “REMOVAL POINTS”.
5 Lower bracket 1
6 Ball race cover 1
7 Upper bearing 1
8 Lower bearing 1 Refer to “REMOVAL POINTS”.
9
Ball race
2
Refer to “REMOVAL POINTS”.
2
1
STEERING
