Yamaha WR250F 2003 [243/304] Handlebar
![Yamaha WR250F 2003 [243/304] Handlebar](/views2/1012986/page243/bgf3.png)
5 - 39
CHAS

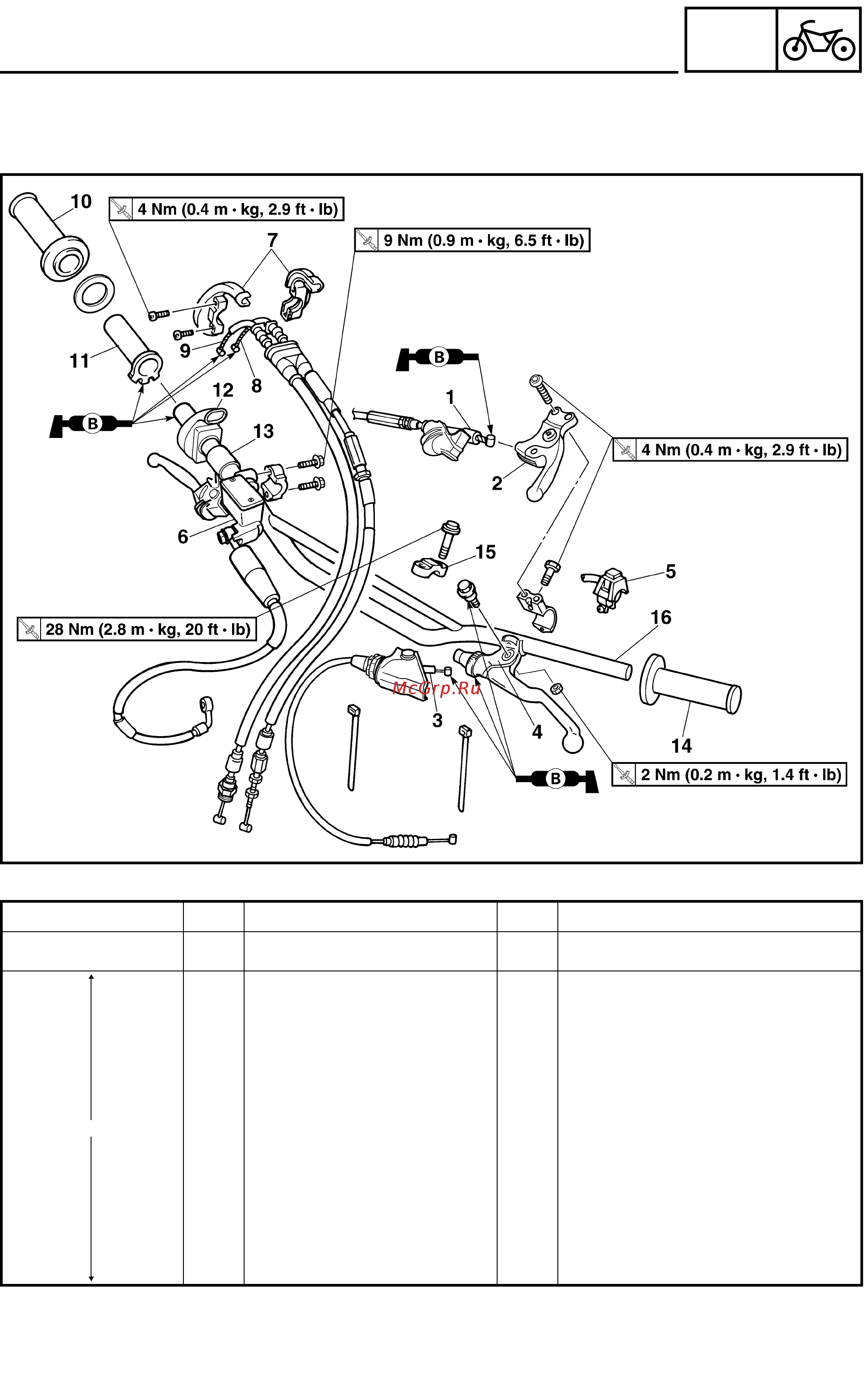

HANDLEBAR
EC5B0000
HANDLEBAR
Extent of removal: 1 Handlebar removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
HANDLEBAR REMOVAL
Number plate Remove the clamp portion only.
1 Hot starter cable 1 Disconnect at the lever side.
2 Hot starter lever holder 1
3 Clutch cable 1 Disconnect at the lever side.
4 Clutch lever holder 1
5 Engine stop switch 1
6 Brake master cylinder 1 Refer to “REMOVAL POINTS”.
7 Throttle cable cap 1
8 Throttle cable #2 (pushed) 1 Disconnect at the throttle side.
9 Throttle cable #1 (pulled) 1 Disconnect at the throttle side.
10 Right grip 1 Refer to “REMOVAL POINTS”.
11 Tube guide 1
12 Grip cap cover 1
13 Collar 1
14 Left grip 1 Refer to “REMOVAL POINTS”.
15 Handlebar upper holder 2
16 Handlebar 1
