Yamaha WR250F 2003 [261/304] Swingarm

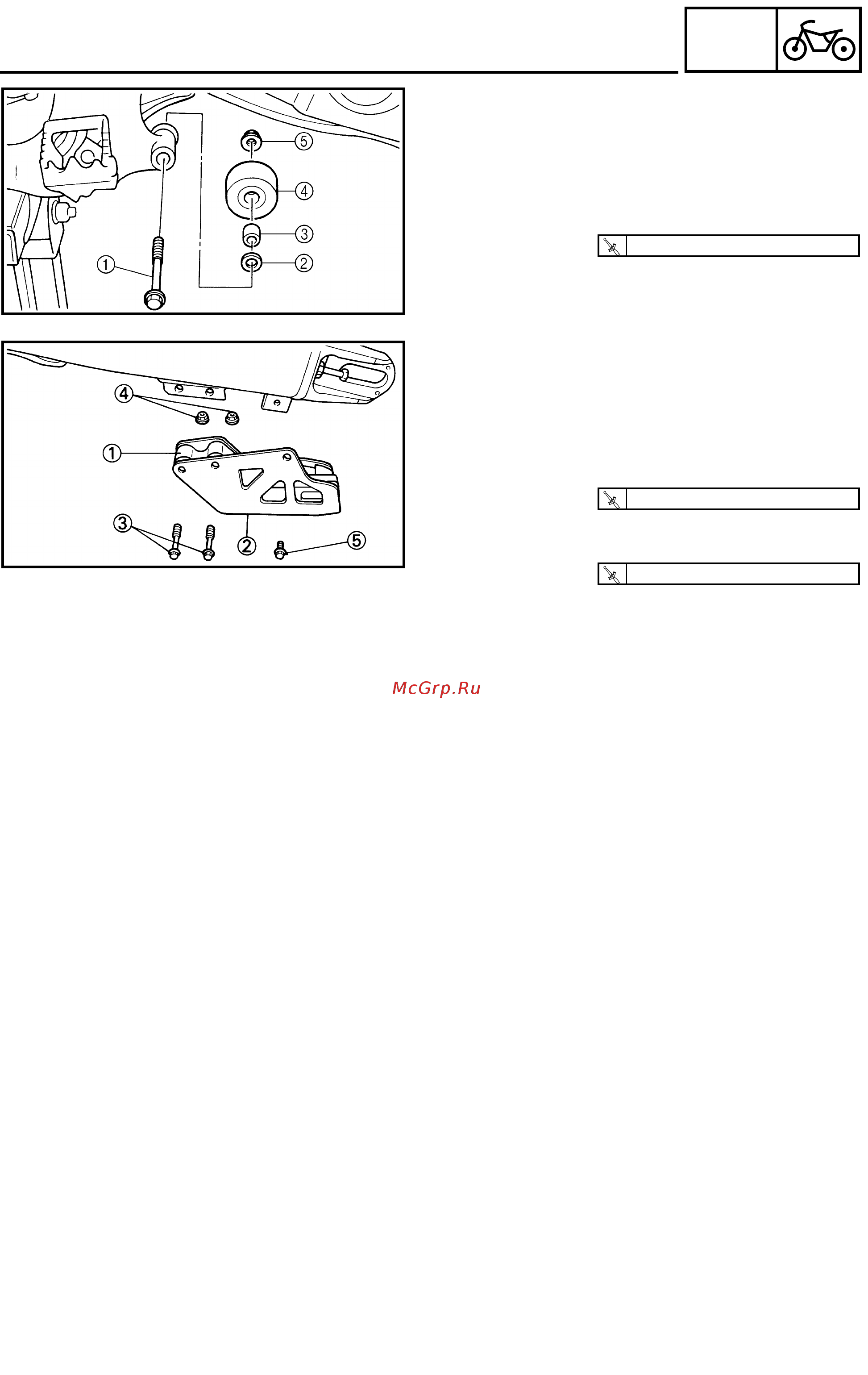

![Yamaha WR250F 2003 [261/304] Swingarm](/views2/1012986/page261/bg105.png)
5 - 57
CHAS
SWINGARM
13. Install:
● Bolt (lower chain tensioner) 1
● Washer 2
● Collar 3
● Lower chain tensioner 4
● Nut (lower chain tensioner) 5
T
R
.
.
20 Nm (2.0 m · kg, 14 ft · lb)
14. Install:
● Drive chain support 1
● Drive chain support cover 2
● Bolt {drive chain support
[r= 50 mm (1.97 in)]} 3
● Nut (drive chain support) 4
● Bolt {drive chain support cover
[r= 10 mm (0.39 in)]} 5
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
