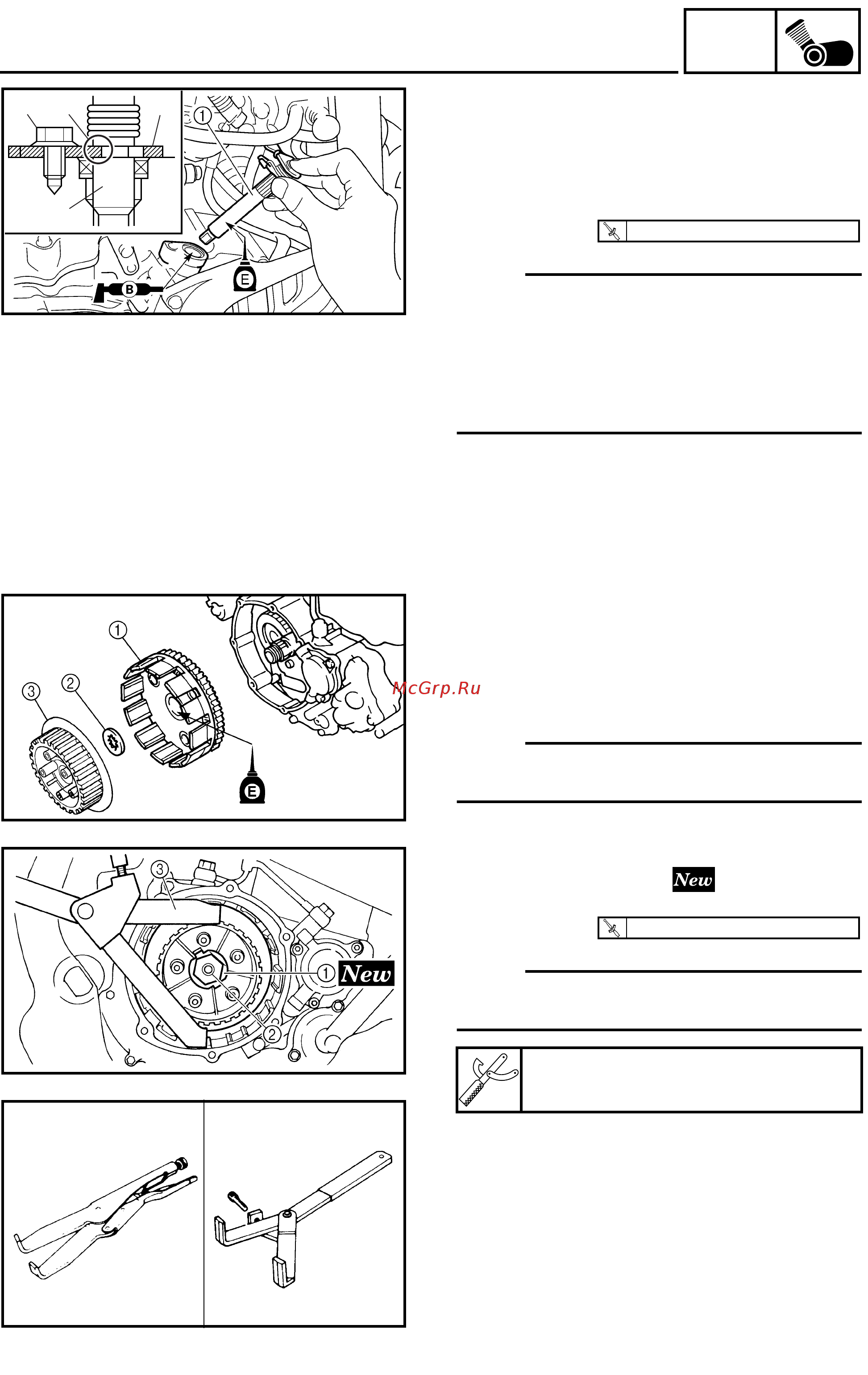

Yamaha WR250F 2003 [157/304] Clutch
![Yamaha WR250F 2003 [157/304] Clutch](/views2/1012986/page157/bg9d.png)
4 - 53
ENG
CLUTCH
EC4A5000
ASSEMBLY AND INSTALLATION
Push lever shaft
1. Install:
●
Push lever shaft
1
●
Bolt (push lever shaft)
2
NOTE:
●
Apply the lithium soap base grease on the oil
seal lip.
●
Apply the engine oil on the push lever shaft.
●
Fit the seat plate
3
in the groove
a
of the
push lever shaft and tighten the bolt (seat
plate).
3
1
a
2
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
Clutch
1. Install:
●
Primary driven gear
1
●
Thrust washer 2
● Clutch boss 3
NOTE:
Apply the engine oil on the primary driven gear
inner circumference.
2. Install:
● Lock washer 1
● Nut (clutch boss) 2
NOTE:
Use the clutch holding tool 3 to hold the clutch
boss.
Å For USA and CDN
ı Except for USA and CDN
Clutch holding tool:
YM-91042/90890-04086
T
R
.
.
60 Nm (6.0 m · kg, 43 ft · lb)
Å
ı
