3 - 15
INSP
ADJ
ENGINE OIL REPLACEMENT
ENGINE OIL REPLACEMENT
1. Start the engine and warm it up for sev-
eral minutes, and then turn off the engine
and wait for five minute.
2. Place the machine on a level place and
hold it on upright position by placing the
suitable stand under the engine.
3. Place a suitable container under the
engine.

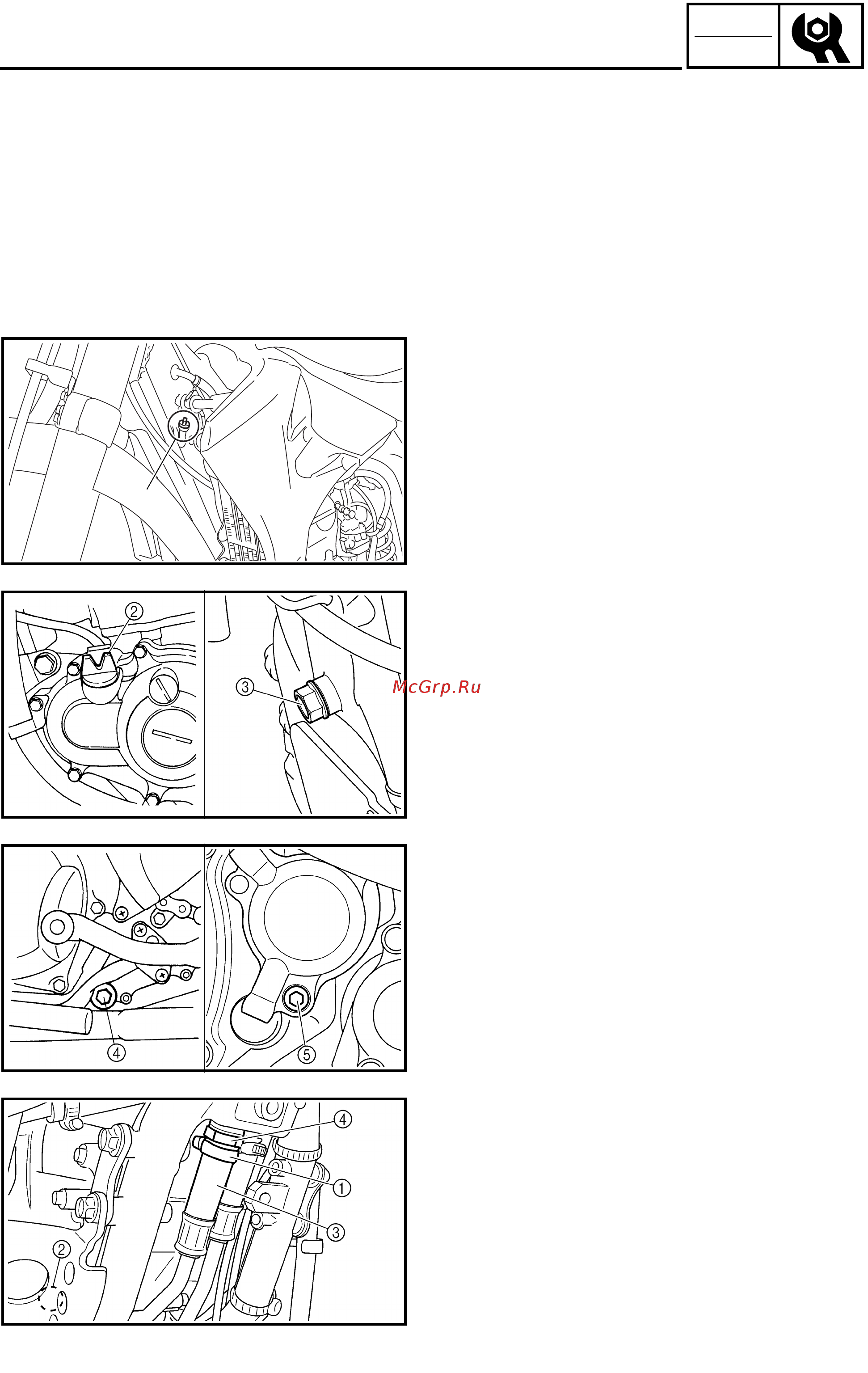

4. Remove:
● Oil tank cap 1
● Oil filler cap 2
● Frame oil drain bolt 3
● Crankcase oil drain bolt 4
● Oil filter element drain bolt 5
Drain the crankcase and oil tank
(frame) of its oil.
1
5. Remove:
● Lower engine bracket
● Oil hose clamp 1
● Bolt (oil hose) 2
● Oil hose 3
● Oil strainer (frame) 4
6. Inspect:
● Oil strainer (frame)
Clogged → Blow.
