Yamaha WR250F 2003 [212/304] Front wheel and rear wheel
![Yamaha WR250F 2003 [212/304] Front wheel and rear wheel](/views2/1012986/page212/bgd4.png)
5 - 8
CHAS

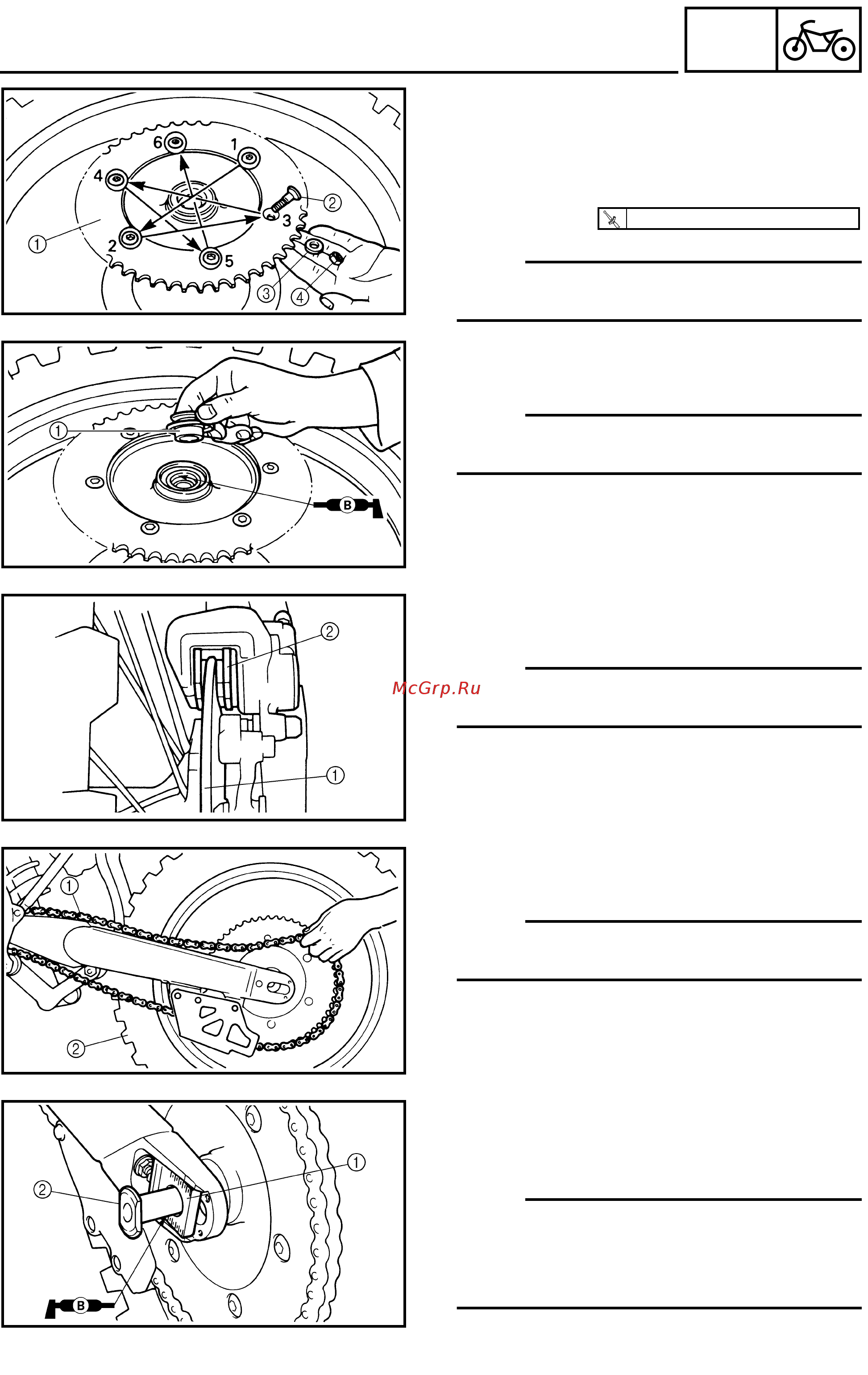

3. Install:
● Rear wheel sprocket 1
● Bolt (rear wheel sprocket) 2
● Washer (rear wheel sprocket) 3
● Nut (rear wheel sprocket) 4
NOTE:
Tighten the nuts in stage, using a crisscross
pattern.
T
R
.
.
42 Nm (4.2 m · kg, 30 ft · lb)
FRONT WHEEL AND REAR WHEEL
4. Install:
● Collar 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip.
5. Install:
● Wheel
NOTE:
Install the brake disc 1 between the brake
pads 2 correctly.
6. Install:
● Drive chain 1
NOTE:
Push the wheel 2 forward and install the drive
chain.
7. Install:
● Left drive chain puller 1
● Wheel axle 2
NOTE:
● Install the left drive chain puller, and insert
the wheel axle from left side.
● Apply the lithium soap base grease on the
wheel axle.
