3 - 46
INSP
ADJ

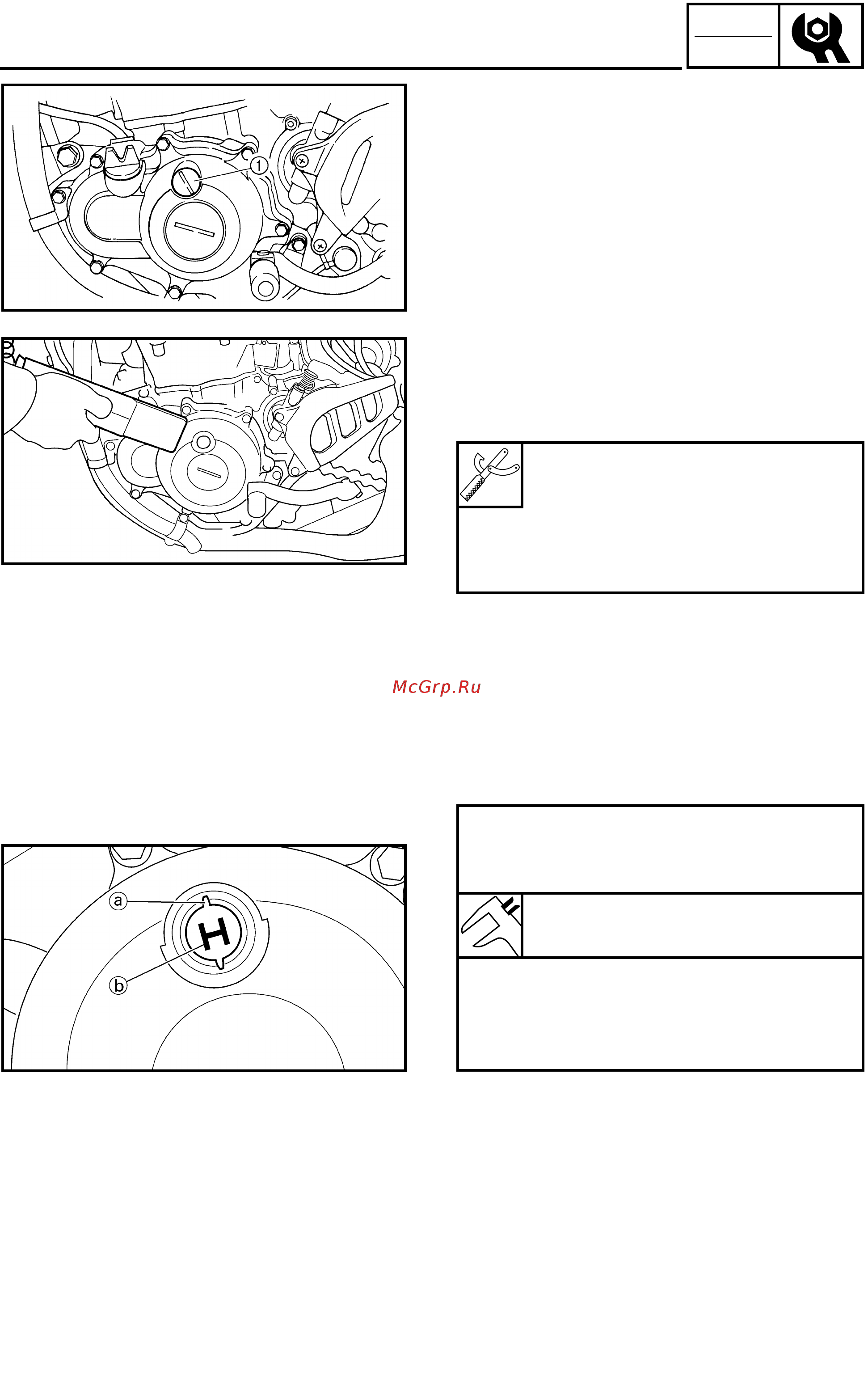

IGNITION TIMING CHECK
IGNITION TIMING CHECK
1. Remove:
● Timing mark accessing screw 1
2. Attach:
● Timing light
● Inductive tachometer
To the spark plug lead.
3. Check:
● Ignition timing
Timing light:
YM-33277-A/90890-03141
Inductive tachometer:
YU-8036-B
Engine tachometer:
90890-03113
Checking steps:
● Start the engine and let it warm up. Let the
engine run at the specified speed.
Engine speed:
1,900 ~ 2,100 r/min
● Visually check the stationary pointer a is
within the firing range b on the rotor.
Incorrect firing range → Check rotor and
pickup assembly.
4. Install:
● Timing mark accessing screw
