2 - 21
SPEC

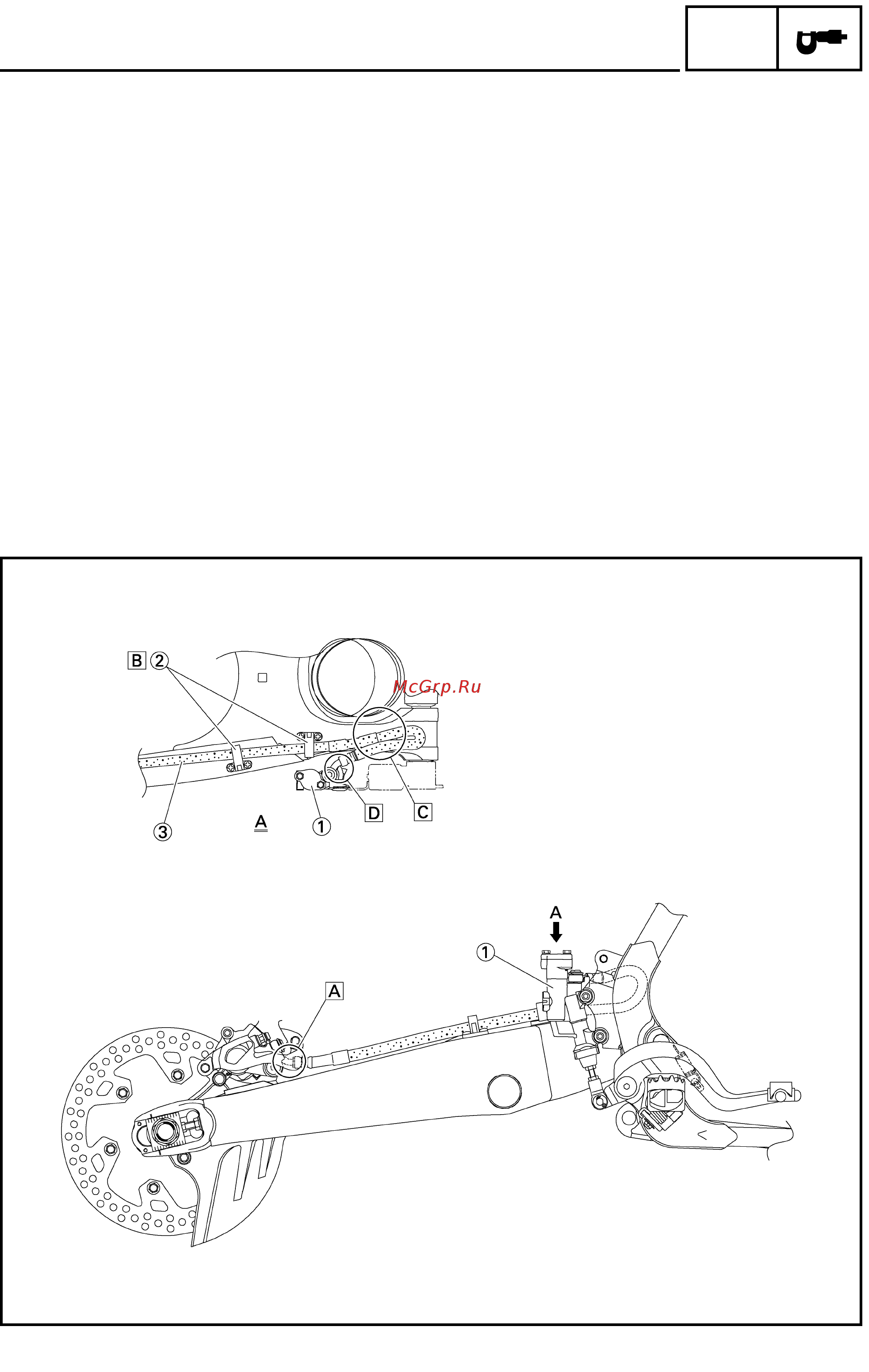

CABLE ROUTING DIAGRAM
1 Brake master cylinder
2 Brake hose holder
3 Brake hose
Å Install the brake hose so that its pipe portion
directs as shown and lightly touches the projection
on the brake caliper.
ı Pass the brake hose into the brake hose holders.
Ç If the brake hose contacts the spring (rear shock
absorber), correct its twist.
Î Install the brake hose so that its pipe portion
directs as shown and lightly touches the projection
on the brake master cylinder.
