5 - 9
CHAS
FRONT WHEEL AND REAR WHEEL

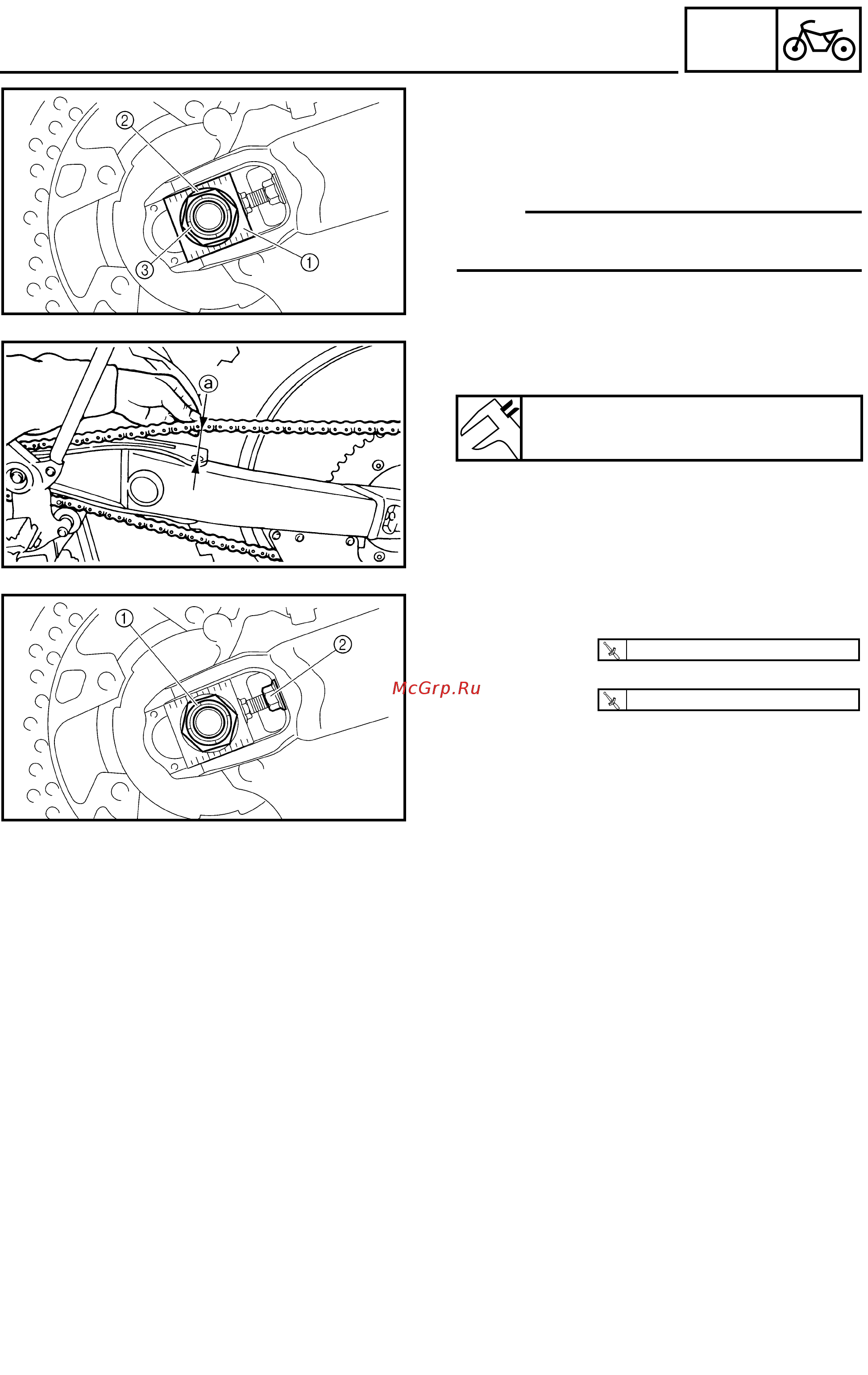

8. Install:
● Right drive chain puller 1
● Washer 2
● Nut (wheel axle) 3
NOTE:
Temporarily tighten the nut (wheel axle) at this
point.
9. Adjust:
● Drive chain slack a
Refer to “DRIVE CHAIN SLACK
ADJUSTMENT” section in the CHAP-
TER 3.
Drive chain slack:
40 ~ 50 mm (1.6 ~ 2.0 in)
10. Tighten:
● Nut (wheel axle) 1
● Locknut 2
T
R
.
.
125 Nm (12.5 m · kg, 90 ft · lb)
T
R
.
.
16 Nm (1.6 m · kg, 11 ft · lb)
