4 - 62
ENG

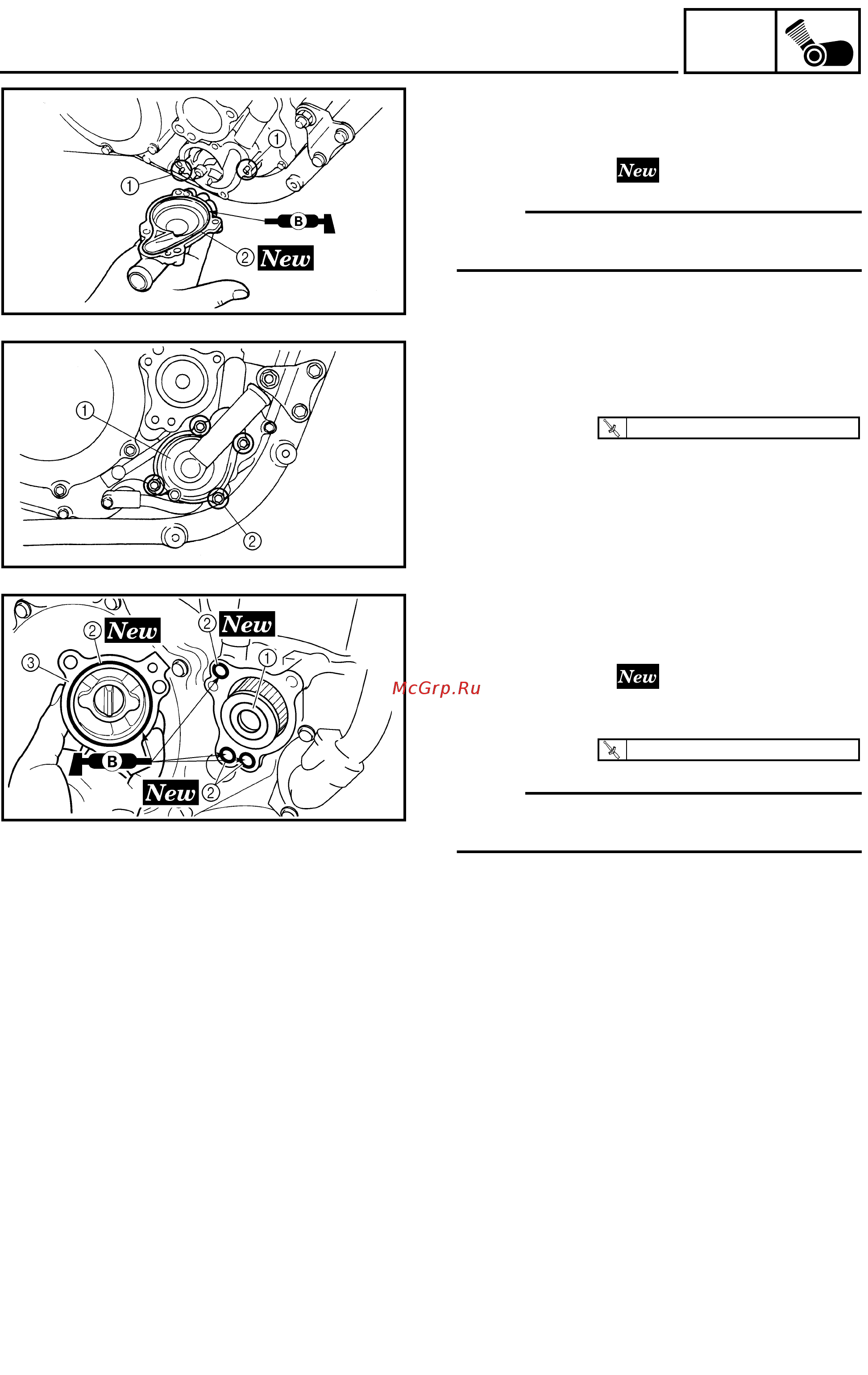

OIL FILTER ELEMENT, WATER PUMP AND RIGHT
CRANKCASE COVER
Water pump housing
1. Install:
● Dowel pin 1
● O-ring 2
NOTE:
Apply the lithium soap base grease on the O-
ring.
2. Install:
● Water pump housing 1
● Bolt (water pump housing) 2
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
Oil filter element
1. Install:
● Oil filter element 1
● O-ring 2
● Oil filter element cover 3
● Bolt (oil filter element cover)
NOTE:
Apply the lithium soap base grease on the O-
ring.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
