Yamaha WR250F 2003 [109/304] Radiator
![Yamaha WR250F 2003 [109/304] Radiator](/views2/1012986/page109/bg6d.png)
4 - 5
ENG
RADIATOR
EC450001

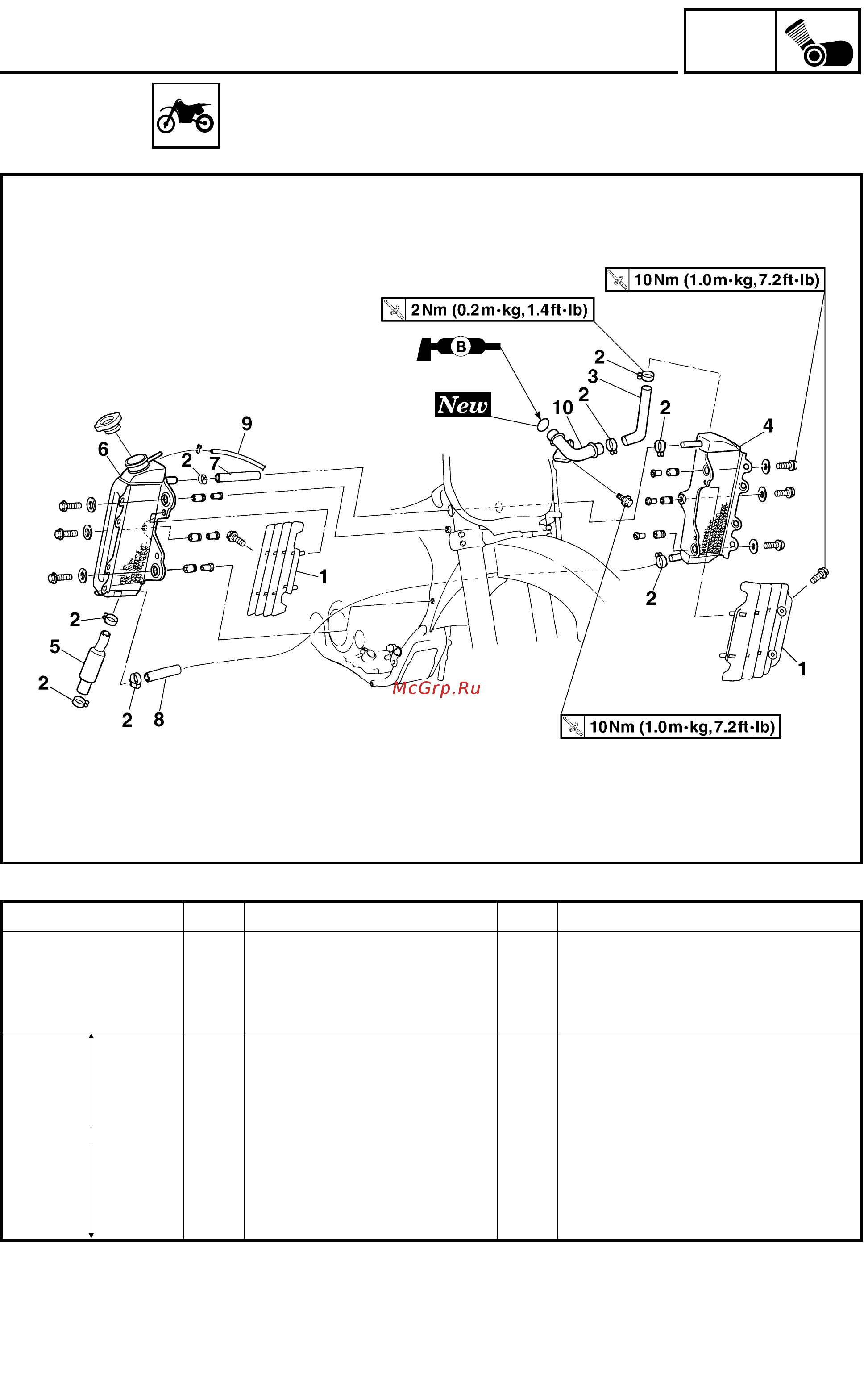

RADIATOR
Extent of removal:
1
Radiator removal
Extent of removal Order Part name Q’ty Remarks
RADIATOR REMOVAL
Preparation for removal Drain the coolant. Refer to “COOLANT REPLACEMENT”
section in the CHAPTER 3.
Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
1 Radiator guard 2
2 Radiator hose clamp 8 Only loosening.
3 Radiator hose 1 1
4 Left radiator 1
5 Radiator hose 3 1
6 Right radiator 1
7 Radiator hose 2 1
8 Radiator hose 4 1
9 Radiator breather hose 1
10 Radiator pipe 1
1
