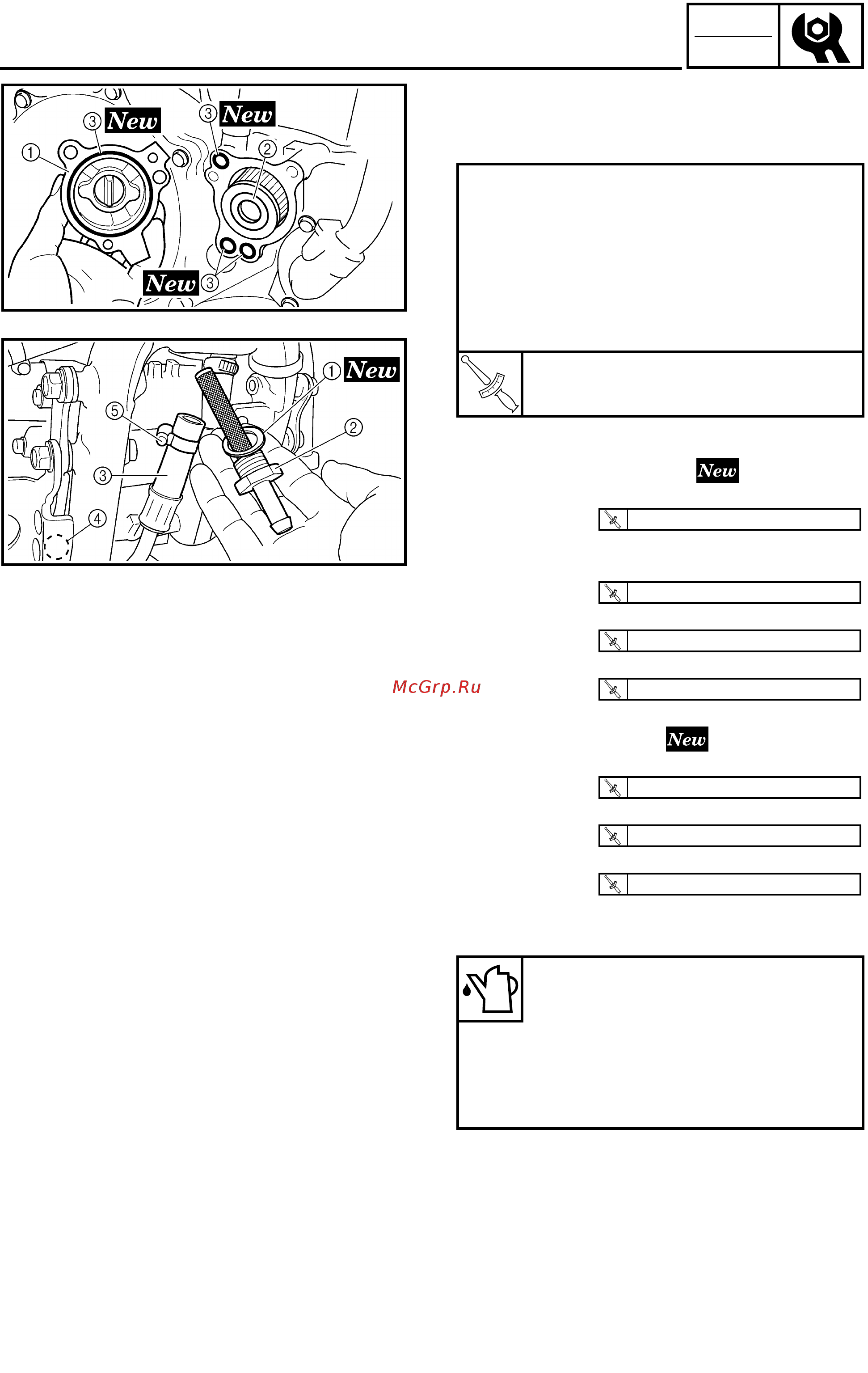

3 - 16
INSP
ADJ
ENGINE OIL REPLACEMENT
7. If the oil filter is to be replaced during this
oil change, remove the following parts
and reinstall them.
8. Install:
● Copper washer 1
● Oil strainer (frame) 2
● Oil hose 3
● Bolt (oil hose) 4
● Oil hose clamp 5
● Lower engine bracket
9. Install:
● Copper washer
● Oil filter element drain bolt
● Crankcase oil drain bolt
● Frame oil drain bolt
10. Fill:
● Engine oil
11. Check:
● Oil leakage
12. Install:
● Oil tank cap
13. Check:
● Engine oil level
Replacement steps:
● Remove the oil filter element cover 1 and
oil filter element 2.
● Check the O-rings 3, if cracked or dam-
aged, replace them with a new one.
● Install the oil filter element and oil filter ele-
ment cover.
T
R
.
.
Oil filter element cover:
10 Nm (1.0 m • kg, 7.2 ft • lb)
Oil quantity:
Total amount:
1.2 L (1.06 Imp qt, 1.27 US qt)
Periodic oil change:
1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement:
1.1 L (0.97 Imp qt, 1.27 US qt)
T
R
.
.
70 Nm (7.0 m · kg, 50 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
20 Nm (2.0 m · kg, 14 ft · lb)
T
R
.
.
23 Nm (2.3 m · kg, 17 ft · lb)
