Yamaha WR250F 2003 [220/304] Front brake and rear brake
![Yamaha WR250F 2003 [220/304] Front brake and rear brake](/views2/1012986/page220/bgdc.png)
5 - 16
CHAS

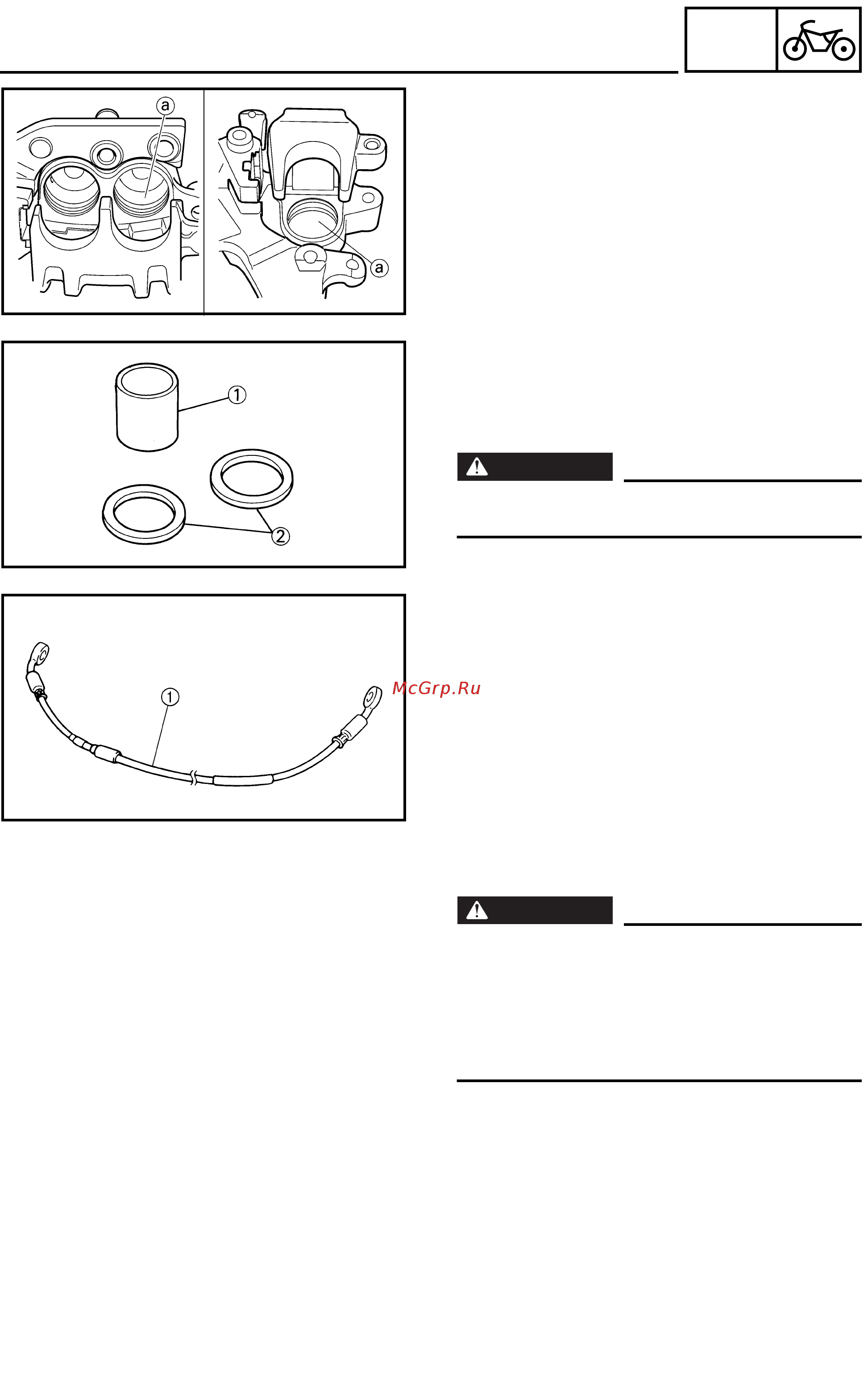

Brake caliper
1. Inspect:
● Brake caliper cylinder inner surface a
Wear/score marks → Replace brake
caliper assembly.
Å Front
ı Rear
ı
Å
2. Inspect:
● Brake caliper piston 1
Wear/score marks → Replace brake
caliper piston assembly.
WARNING
Replace the piston seals and dust seals 2
whenever a caliper is disassembled.
EC534301
Brake hose
1. Inspect:
● Brake hose 1
Crack/damage → Replace.
EC5A5000
ASSEMBLY AND INSTALLATION
WARNING
● All internal parts should be cleaned in
new brake fluid only.
● Internal parts should be lubricated with
brake fluid when installed.
● Replace the piston seals and dust seals
whenever a caliper is disassembled.
Brake caliper piston
1. Clean:
● Brake caliper
● Piston seal
● Dust seal
● Brake caliper piston
Clean them with brake fluid.
FRONT BRAKE AND REAR BRAKE
