DIGITAL MODE OPERATION
11
DD
Message Transmission
Select the message transmission function ON and OFF.
When ON is selected, the transceiver transmits a text mes-
sage (pre-programmed). (default: OFF)
q Set the operating frequency, call signs and other settings,
such as repeater, as desired.
w Push [SET•LOCK] to enter message set mode.
• Rotate [DIAL] to select “MESSAG,” if “CALLS” or “SET” is dis-
played.
e Push [SET•LOCK] or [S.MW•MW] several times until
“TXM-C” appears.
r Rotate [DIAL] to select the desired message channel.
•“C1” to “C6” available.
• See pgs. 80 and 81 for message programming.

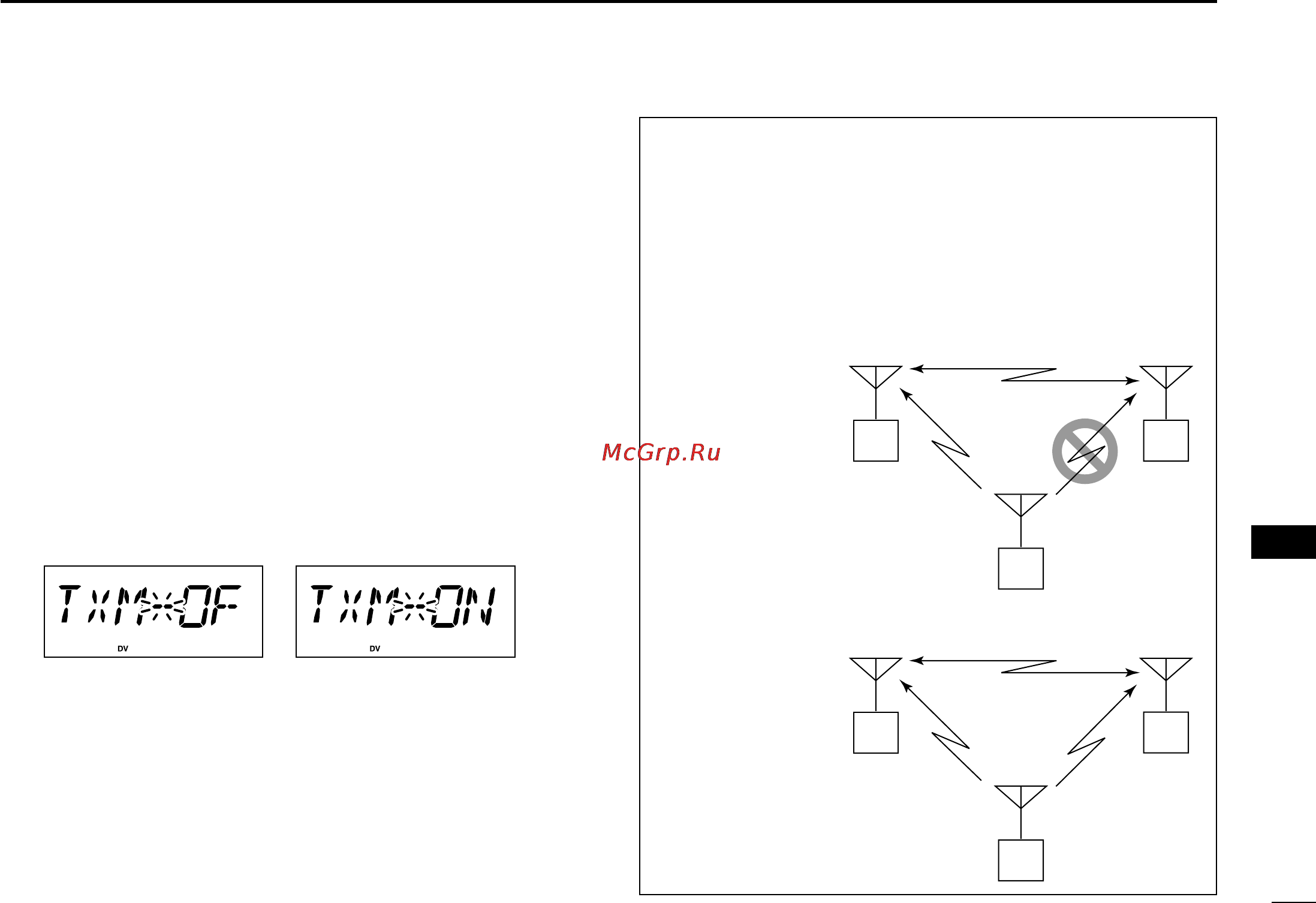

t Push [S.MW•MW] to select the message transmission set-
ting, then rotate [DIAL] to select “TXM-ON.”
y Push [M/CALL•PRIO], [TONE•T-SCAN•BK], [LOW•DUP]
or [MONI•DTMF•EMR] to exit message set mode.
u Push [PTT] to transmit and send the selected message si-
multaneously.
• How to use the break-in?
While operating with the call sign squelch, the squelch
never opens (no audio sounds) even if a call is received,
unless your own call sign (“MyCALL”) is specified.
However, when the call including the “BK ON” signal
(break-
in call) is received, the squelch will open and audio sounds
even if the call is specified for another station.
Station A Station B
Station C
• Station C calling to Station A with “BK OFF”
Station A Station B
Station C
• Station C calling to Station A with “BK ON”
Station A and B are
communicating us-
ing the call sign
squelch
Station A and B are
communicating us-
ing the call sign
squelch
Station B never hears that
Station C calling Station A.
Station B also hears that Sta-
tion C is calling Station A.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 84
