74
11
DIGITAL MODE OPERATION
11

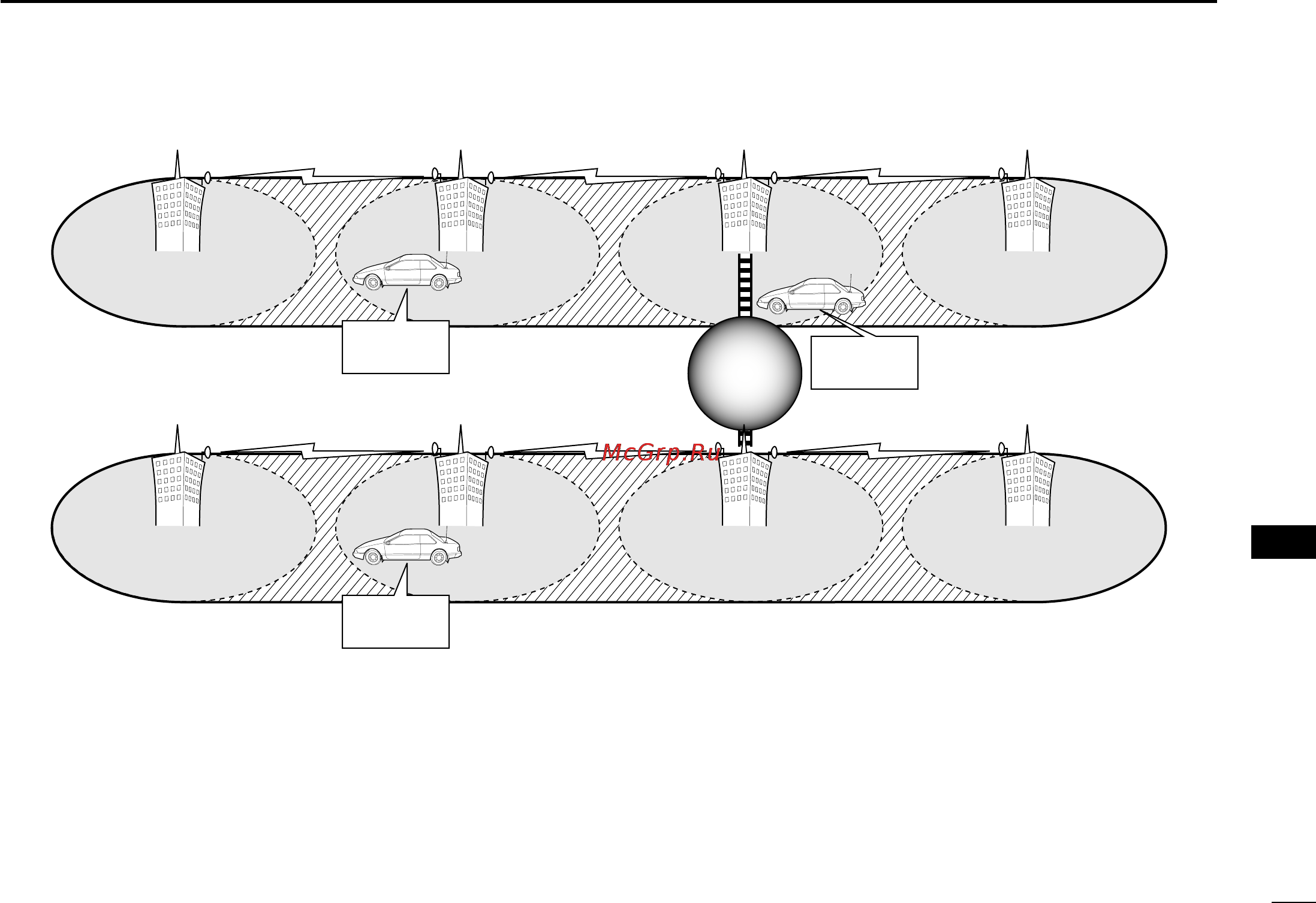

Area 1
Zone A
• Setting examle 2
Repeater 1
: A11111
Area 2 Repeater 2
: A22222
Area 3
(Gateway)
Repeater 3
: A33333
Area 4 Repeater 4
: A44444
Zone B
Area 6 Repeater 6
: B66666
Area 7
(Gateway)
Repeater 7
: B77777
Area 8 Repeater 8
: B88888
Internet
network
Internet
network
Area 5 Repeater 5
: B55555
Station C
: B6666C
Station A
: A2222A
Station B
: A3333B
❑ The setting when the Station A is
calling the Station C
MyCALL : A2222A
UrCALL : B6666C
RPT1 C : A22222
RPT2 C : A33333 G
❑ The setting when the Station A is
making a CQ call in area 8
MyCALL : A2222A
UrCALL : /B88888
RPT1 C : A22222
RPT2 C : A33333 G
❑ The setting when the Station B is
calling the Station C
MyCALL : A3333B
UrCALL : B6666C
RPT1 C : A33333
RPT2 C : A33333 G
