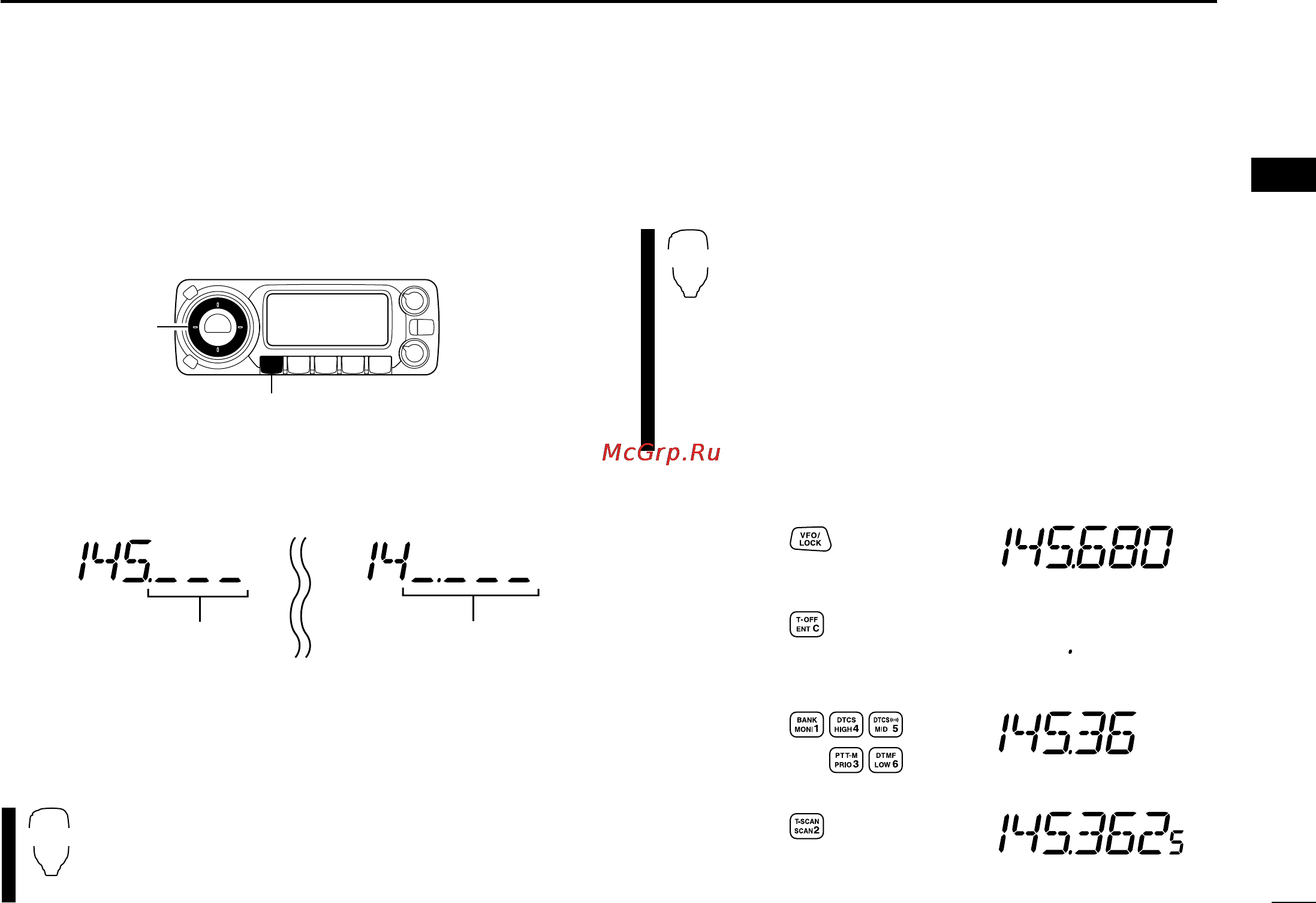

SETTING A FREQUENCY
2
■ Using the tuning dial
qRotate [DIAL] to set the frequency.
• If VFO mode is not selected, push [V/MHz•SCAN] to select VFO
mode.
• The frequency changes in the selected tuning steps. (p. 13)
w
To change the frequency in 1 MHz (10 MHz for some versions)
steps, push [V/MHz•SCAN], then rotate [DIAL].
• Pushing and holding [V/MHz•SCAN] for 1 sec. starts scan func-
tion. If scan starts, push [V/MHz•SCAN] again to cancel it.
■ Using the [
YY
]/[
ZZ
] keys
➥ Push [
YY
] or [
ZZ
] to select the desired frequency.
• Pushing and holding [
YY
]/[
ZZ
] for 1 sec. activates a
scan. If scan starts, push [
YY
]/[
ZZ
] or [
CLR
A(MW)] to
cancel it.
■ Using the keypad
The frequency can be directly set via numeral keys on the mi-
crophone.
z Push [VFO/LOCK] to select VFO mode, if nec-
essary.
x Push [
ENT
C(T-OFF)] to activate the keypad for
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
ENT
C(T-OFF)]
to clear the input, then repeat input from the 1st digit.
• Pushing [
CLR
A(MW)] clears input digits and retrieves
the frequency.
Push
Push
Push
Push
[EXAMPLE]: Setting frequency to 145.3625 MHz.
ENT
C
YZ
While 1 MHz tuning step is
selected, the digit below
100 kHz disappear.
While 10 MHz tuning step
is selected, the digit below
1 MHz disappear.
[DIAL]
[V/MHz•SCAN]
