79
11
DIGITAL MODE OPERATION
For your information
When the call that is specifying your own call sign is received,
the station and the using repeater call signs being used can
be set for operation automatically.
• When “Auto Received Call sign Set”
(p. 99) is set to ON, the
stored station call sign in “RXCALL” is set to “UrCALL” au-
tomatically.
• When “Auto Received Repeater Call sign Set”
(p. 100) is set
to ON, the stored station call sign in “RXRPT1” is set to
“RPT2 C” and “RXRPT2” is set to “RPT1 C” automatically.
■ Copying the call sign
DD
Copying the call sign memory contents
This function is convenient when saving additional notes for
areas
(for mobile operation) or unit number/initials (if several
transceivers are available), or modifying a part of the current call
sign.
q During VFO mode, push [SET•LOCK] to enter call sign set
mode.
• Rotate [DIAL] to select “CALL” if necessary.
w Push [SET•LOCK] or [S.MW•MW] several times to select
Important!
The set call signs with the “One-touch reply using the call
record” operation as at below left are for temporary opera-
tion only. Therefore, the set call signs will be erased when
another call sign is set.
• Never saved into a call sign memory.
• When “NoCALL” is displayed, the “One-touch reply using the call
record” operation won’t be performed.
If you want to save the set call signs, see “Copying the set
call sign contents for temporary operation”
(p. 79) for details.

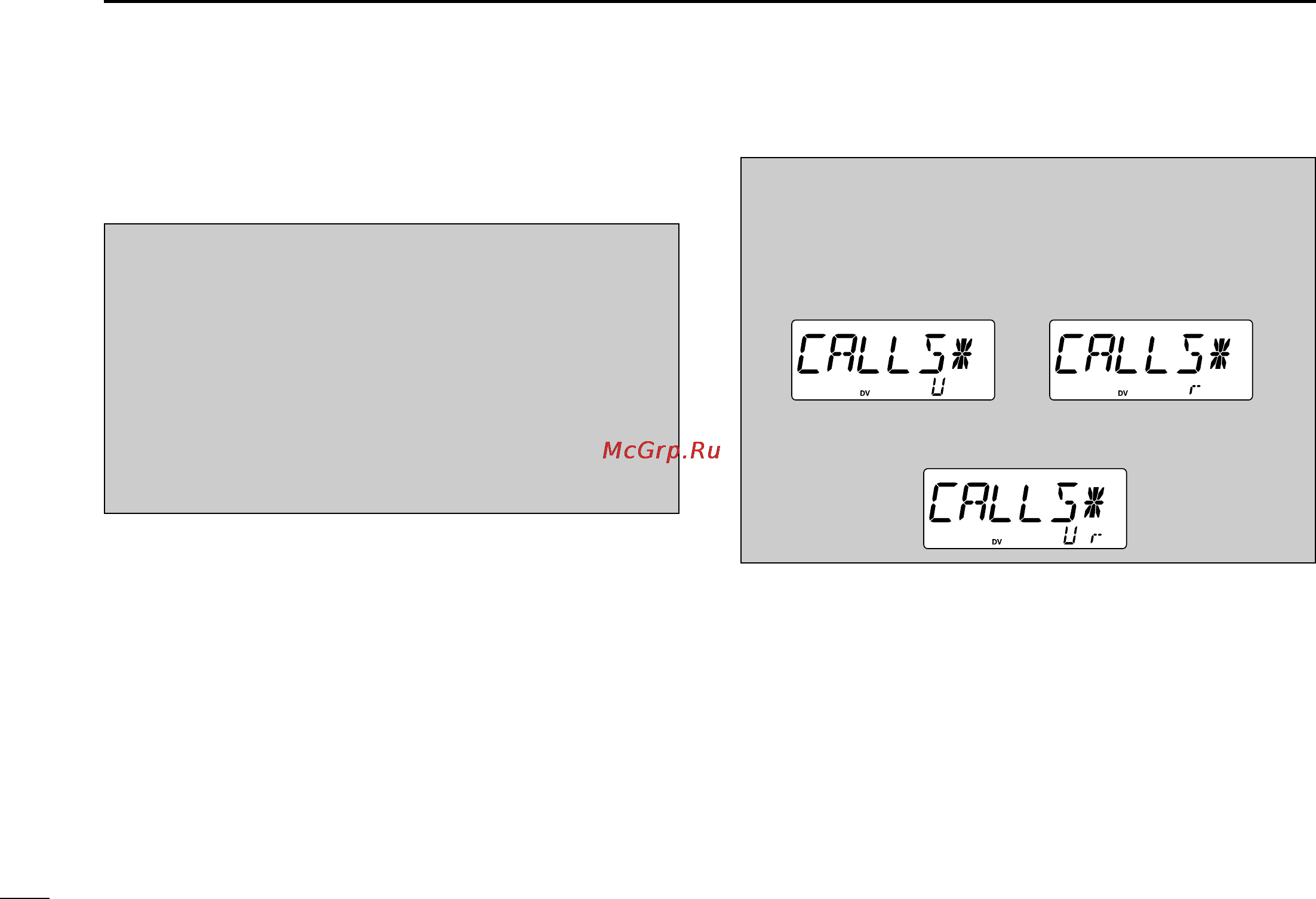

NOTE:
When call sign memories are full
(no blank channel is avail-
able), the call sign is unable to be saved and the function
display shows the following indication.
• When no blank channel is
available in “UrCALL”
• When no blank channel is
available in “RPT1/2 C”
• When no blank channel is available
in both “UrCALL” and “RPT1/2 C”
ID-800H_1.qxd 2007.06.14 3:09 PM Page 79
