94
12
OTHER FUNCTIONS
12
Set mode items
for Analog mode
• RX position indication
• Auto reply • Digital code
• Auto data
transmission
• Auto RxCall Set
• Auto RxCall display
• Auto MyCall display
• Digital monitor
• Digital repeater setting• Auto Rx message display• GPS setting
• Auto position
transmission
• GPS message indication
• My position indication
Push
: Push (front panel); or (microphone)
: Push (front panel); or (microphone)
Sentence formatter
pgs. 95–98
• Auto Rx Repeater
Call Set
DD

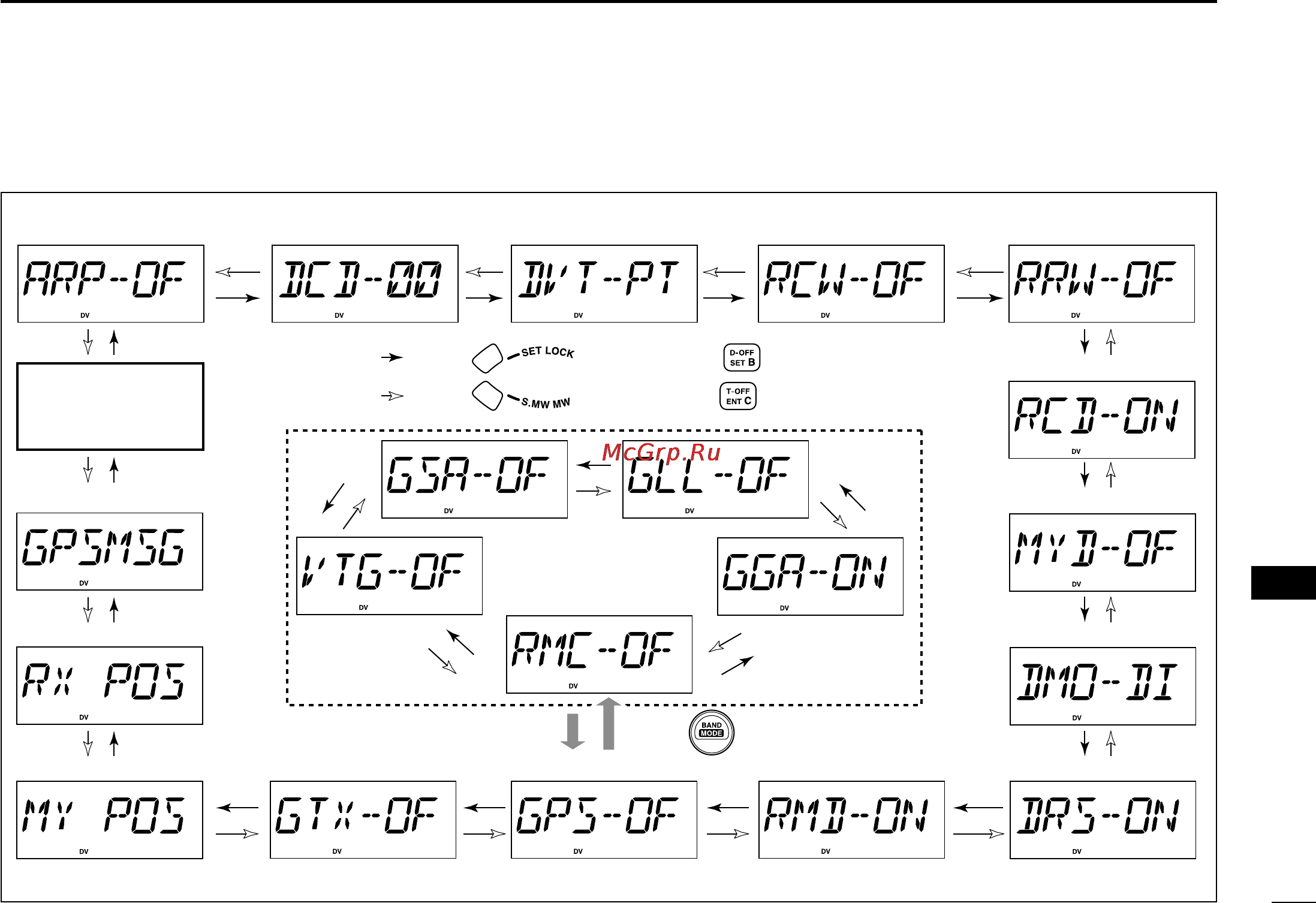

Set mode items (DV mode)
These items appear when set mode is accessed from the digital (DV) mode only.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 94
