Icom ID-800H [51/144] Memory operation
![Icom ID-800H [51/144] Memory operation](/views2/1074464/page51/bg33.png)
34
5
MEMORY OPERATION
5
Channel names can also be programmed via the mi-
crophone.
z Push [FUNC] then [
CLR
A(MW)] momentarily.
•“!” and memory channel number blink.
x Push [
YY
]/[
ZZ
] to select the memory/call channel to be as-
signed memory names.
c Push [BAND].
• Frequency readouts disappear and a cursor blinks.
v Push [
YY
]/[
ZZ
] to select the desired character.
• The selected character blinks.
b Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] to move the cur-
sor to left or right, respectively.
n Repeat steps v and b until the desired channel names
are displayed.
m Push [FUNC], and then push and hold [
CLR
A(MW)] for
1 sec. to program the name and exit the channel name
programming condition.

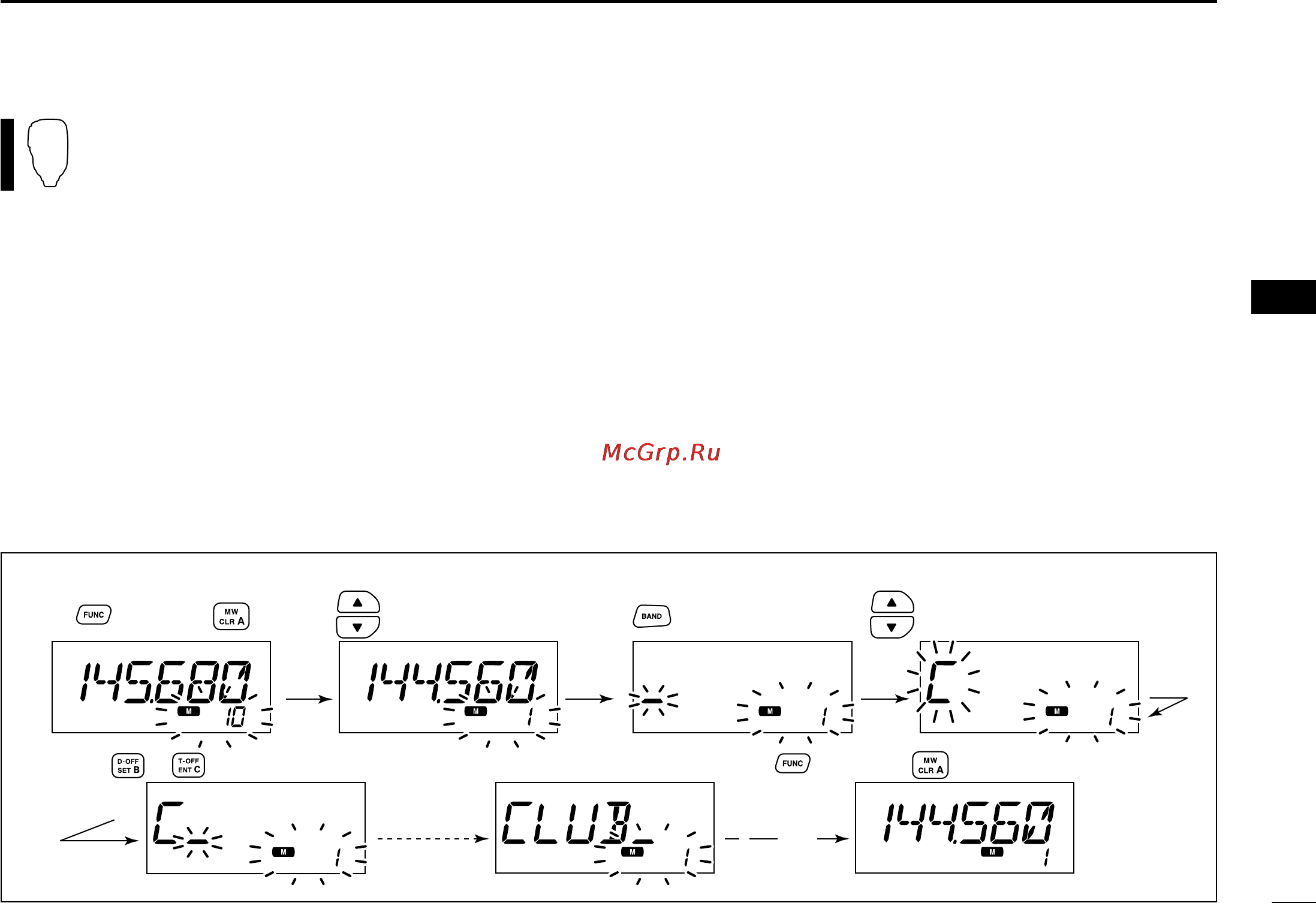

[EXAMPLE]: Programming “CLUB” into memory channel 1.
Push
Repeat the
previous
steps.
Beep
Beep
Beep
“
“
“
“
“
Push to select the channel. Push to select the character
Push or to move the cursor.
Push , then push .
Push , then push for 1 sec.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 34
