MEMORY OPERATION
35
DD

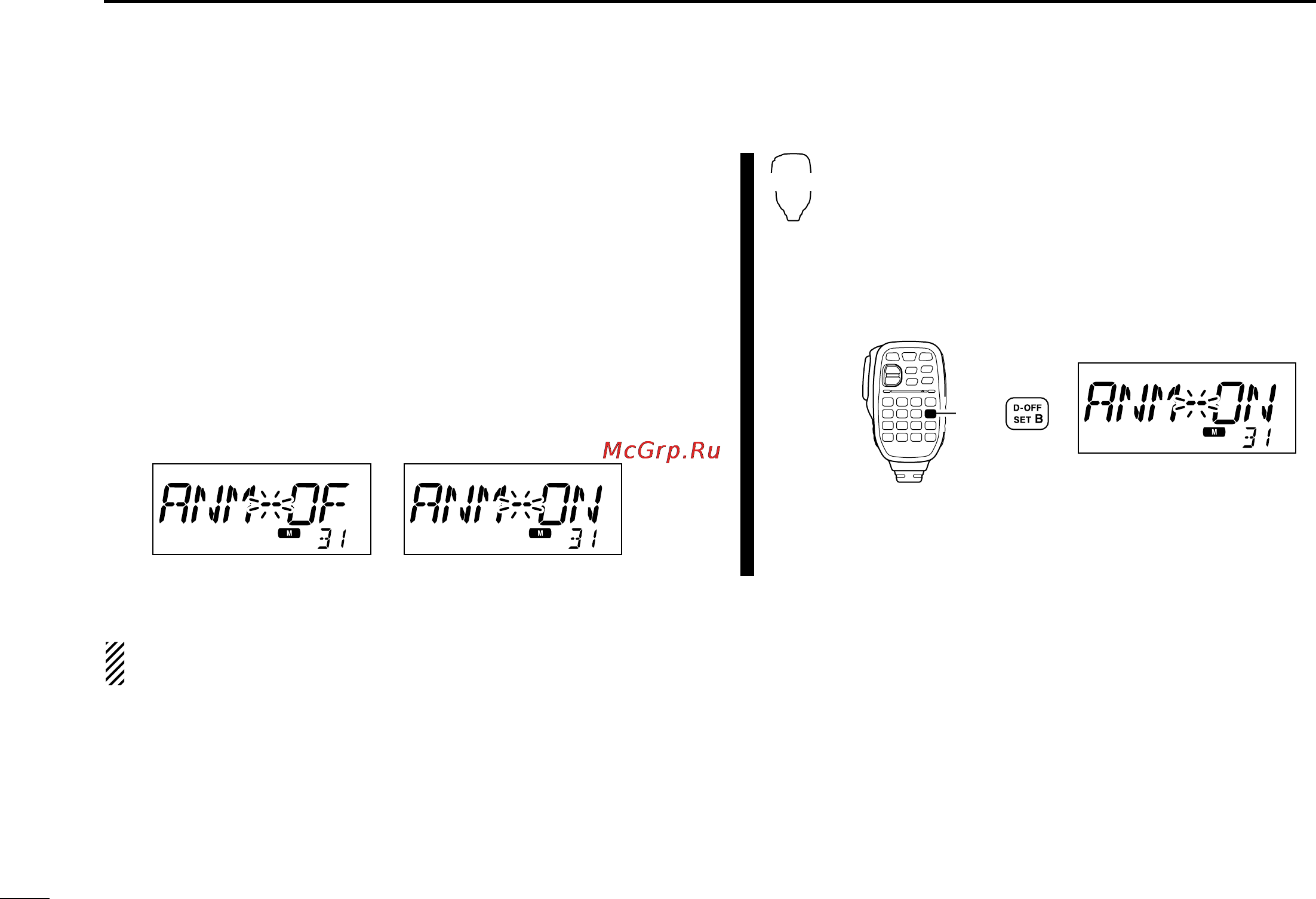

To indicate the channel name [
The channel name indication can be set for independent
memory channels.
q Push [M/CALL•PRIO] to select the memory mode.
w Rotate [DIAL] to select the desired memory channel to be
indicated the channel name.
e Push [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select “SET,” if “CALLS” or “MESSAG” is dis-
played.
r Push [SET•LOCK] or [S.MW•MW] several times to select
“ANM” item.
t Rotate [DIAL] to turn the memory name indication ON.
y Push any key below the display to exit set mode.
NOTE: When no memory name is programmed, the stored
frequency is displayed.
z Push [MR/CALL] to select the memory mode.
x Push [
YY
] or [
ZZ
] to select the desired memory
channel to be indicated the channel name.
c Push [
SET
B(D-OFF)] to enter set mode.
• Push [
YY
] or [
ZZ
] to select “SET,” if necessary.
v Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] until
“ANM” appear.
b Push [
YY
] or [
ZZ
] to set the memory name indi-
cation ON and OFF.
n Push [
CLR
A(MW)] to exit set mode.
Push
SET
B
