112
12
OTHER FUNCTIONS
12
e Sets the desired stand-by condition.
• Selects VFO, memory or call channel.
• Scan or priority watch operation can also be selected.

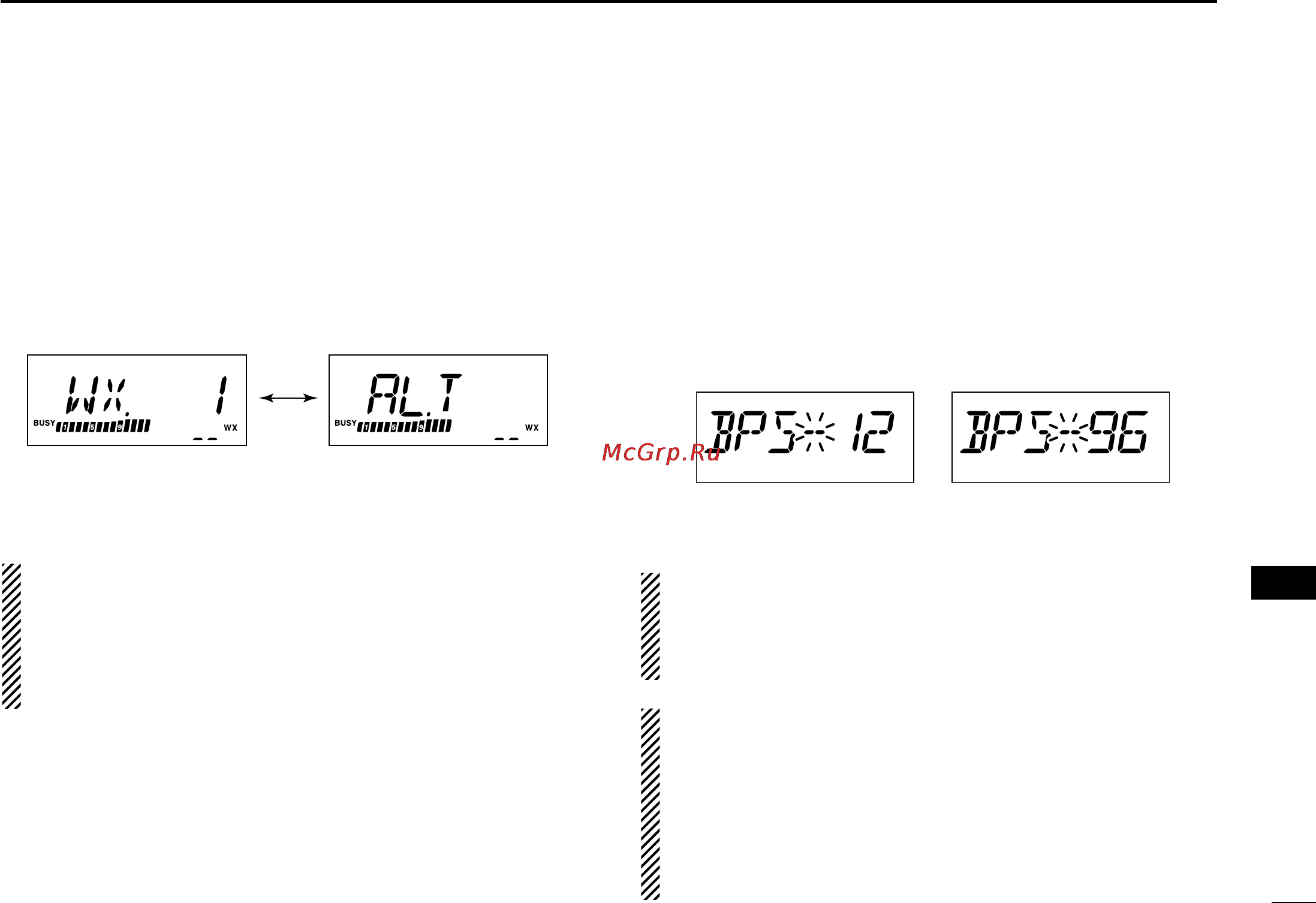

r When the alert is detected, a beep sounds and the follow-
ing indication will be displayed.
t Turn the weather alert function OFF in set mode.
NOTE: While receiving a signal (on a frequency other than
the weather alert ON frequency), the receiving signal or
audio will be interrupted momentarily every 5 sec.
(approx.)
in case the alert function is turned ON. This symptom is
caused by the WX alert function. To cancel these symp-
toms, set the weather alert item OFF in set mode.
■ Packet operation
D Data speed
For packet operation, the transceiver can be set to one of two
data speeds: 1200 bps or 9600 bps.
q While pushing
[SET•LOCK],
push and hold [PWR] for
1 sec. to enter initial set mode.
w Push
[SET•LOCK]
or [S.MW•MW] to select ‘BPS.’
e Rotate [DIAL] to select the desired data speed.
r Push
[PWR]
to exit initial set mode.
For 1200 bps operation—
• Disconnect the microphone plug from the microphone
connector during data transmission, otherwise the data
signal and voice signal are simultaneously transmitted.
For 9600 bps operation—
• When the transceiver is set for 9600 bps data transmis-
sion in set mode, the microphone signal is automatically
cut. Therefore, it is not necessary to disconnect the mi-
crophone plug from the connector in this case.
•
When pushing [PTT] during data transmission, data trans-
mission is interrupted and voice signals have priority.
Shows above indications alternately.
