26
4
REPEATER OPERATION
4
■ Offset frequency [
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
Independent offset frequencies can be set for each operating
frequency.
qPush [BAND•MODE] and rotate [DIAL], then push
[BAND•MODE] to select the desired frequency band.
wSelect the desired mode/channel you wish to set the offset
frequency, such as VFO mode or memory/call channel.
• The offset frequency can be independently programmed into
each mode or channel.
ePush [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select “SET,” if “CALLS” or “MESSAG” is dis-
played.
rPush [SET•LOCK] or [S.MW•MW] until “DUP” and offset
frequency appear.
tRotate [DIAL] to set the desired offset frequency.
yPush any key (other than [V/MHz•SCAN]) below the dis-
play to exit set mode.
z Push [BAND] and [
YY
]/[
ZZ
], then push [BAND]
to select the desired band.
• Enter the desired frequency via the keypad if neces-
sary.
x Select the desired mode/channel you wish to
set the offset frequency, such as VFO mode or
memory/call channel.
• The offset frequency can be independently pro-
grammed into each mode or channel.
c Push [
SET
B(D-OFF)] to enter set mode.
• Push [
YY
] or [
ZZ
] to select “SET,” if necessary.
v Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] until
“DUP” and offset frequency appear.
b Push [
YY
] or [
ZZ
] to set the desired offset.
•
Direct frequency entry from the keypad is not possible.
n Push [
CLR
A(MW)] to exit set mode.
NOTE: The offset frequency can be set in a memory/call
channel temporarily. However, the set frequency is cleared
once another memory channel or VFO mode is selected.
To store the offset frequency permanently, overwrite the
channel information.

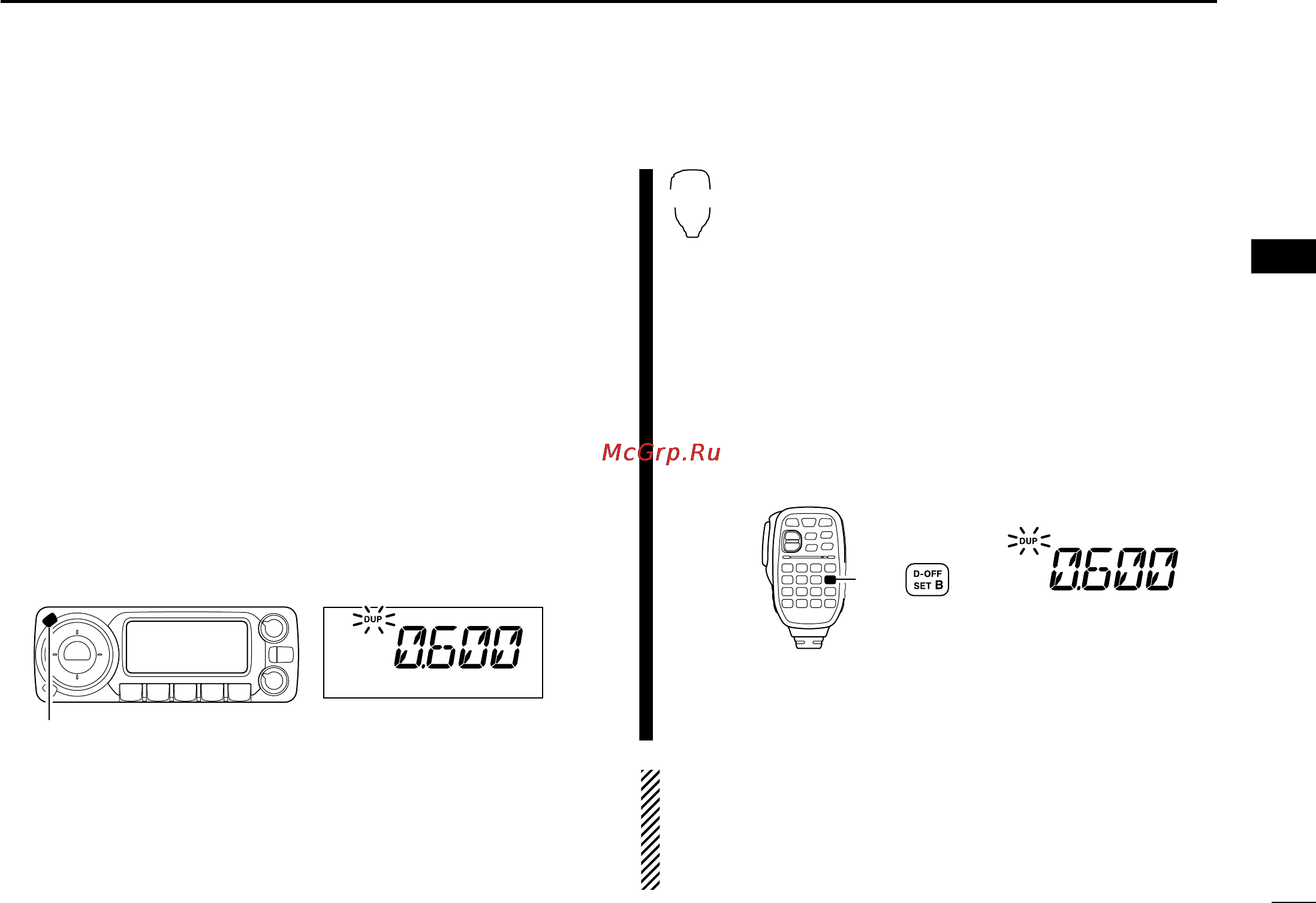

Push
SET
B
[SET•LOCK] “DUP” and offset frequency appea
r
ID-800H_1.qxd 2007.06.14 3:09 PM Page 26
