BASIC OPERATION
3
■ Audio mute function
This function temporarily mutes the audio without disturbing
the volume setting.
➥ Push [FUNC] then [
SQL
YY
D(MUTE)] to mute
audio signals.

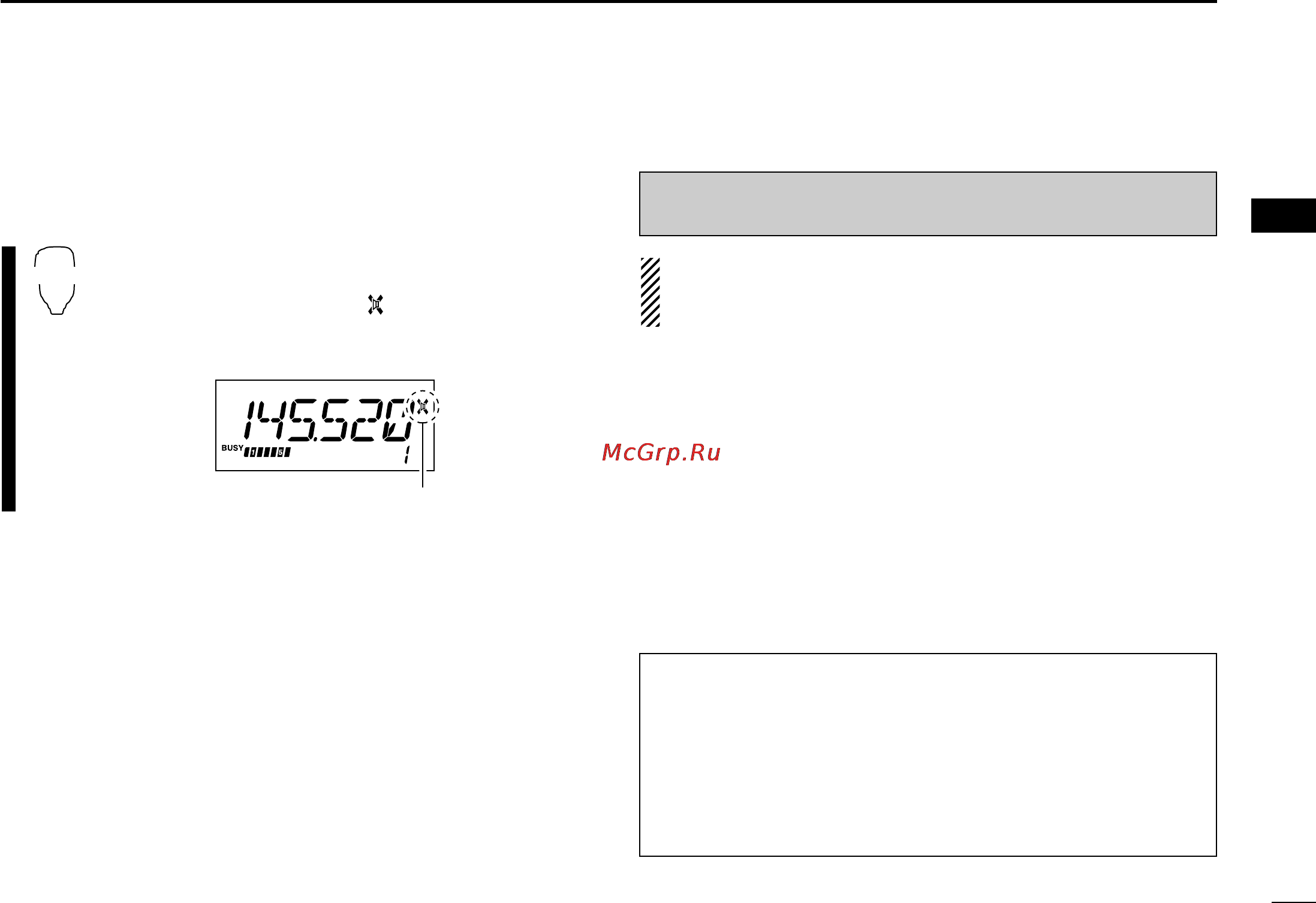

• The audio mute indicator, “” appears.
• Push [
CLR
A(MW)] (or any other key) to cancel the
function.
■ Transmitting
NOTE: To prevent interference, listen on the channel be-
fore transmitting by pushing [MONI•DTMF] on the front
panel or [
MONI
1(BANK)] on the microphone.
qSelect the frequency band. (p. 11)
wSet the operating frequency. (pgs. 11, 12)
• Select output power if desired. See p. 19 for details.
ePush and hold [PTT] to transmit.
•“$” appears.
• The S/RF indicator shows the output power selection.
• A one-touch PTT function is available. See p. 19 for details.
rSpeak into the microphone using your normal voice level.
• DO NOT hold the microphone too close to your mouth or speak
too loudly. This may distort the signal.
tRelease [PTT] to return to receive.
IMPORTANT! (for 55/50 W transmission):
The ID-800H is equipped with a current detector circuit to
protect the power amplifier circuit from high current flowing.
When a high SWR (Standing wave Ratio) antenna or no an-
tenna is connected, or when the connected power supply’s
voltage includes, the transceiver reduces transmit output
power to 10–20 W (approx.) automatically.
CAUTION: Transmitting without an antenna will damage
the transceiver.
Appears
MUTE
