POCKET BEEP AND TONE SQUELCH
10
i When a signal with the matching tone is received, the
transceiver emits beep tones and blinks “S.”
• Beep tones sound for 30 sec. and “S” blinks. To stop the
beeps and blinking manually, push any key. When the beep
tones are not stopped manually, “S” continues blinking until
[PTT] is pushed (see step o).
o Push [PTT] to answer.
•“S” disappears and cancels the pocket beep function auto-
matically.
!0 Push [TONE•T-SCAN] several times until “T SQL” or
“DTCS” disappears to cancel the tone squelch or DTCS
squelch function.
z Set the operating frequency.
x Program the CTCSS tone frequency or DTCS
code in set mode.
➥ Push [
SET
B(D-OFF)] to enter set mode.
• Push [
YY
] or [
ZZ
] to select “SET,” if necessary.
➥ Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)]
several times until “CT” for tone squelch or
“DT” for DTCS squelch appears.

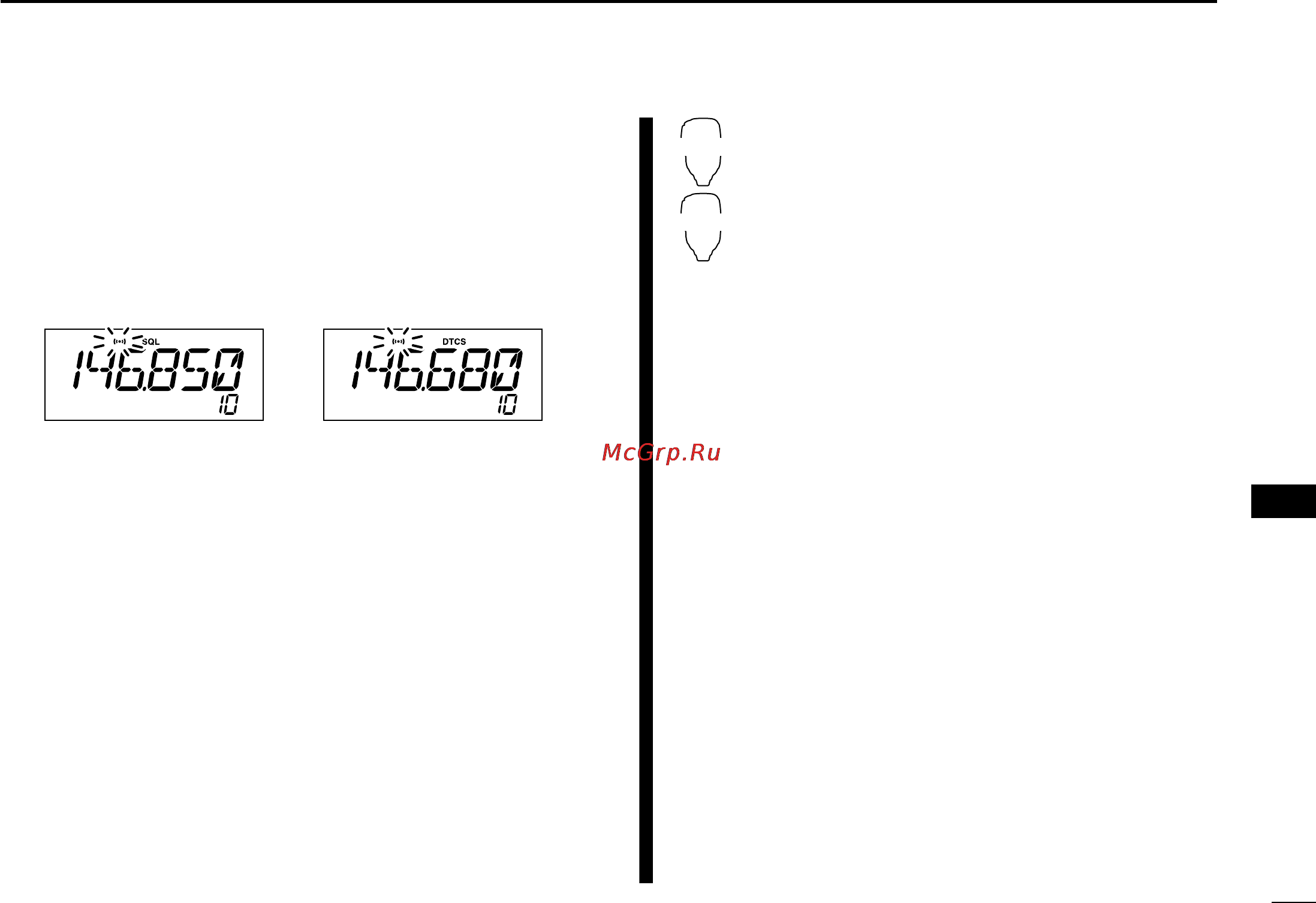

•“T SQL” blinks when tone squelch (“CT”), or
“DTCS” blinks when DTCS squelch (“DT”) is
selected.
➥ Push [
YY
]/[
ZZ
] to select the desired tone fre-
quency or DTCS code.
➥ Push [
SET
B(D-OFF)] to select “DTP” then
push [
YY
]/[
ZZ
] to select the DTCS polarity.
➥ Push [
CLR
A(MW)] to exit set mode.
c Push [FUNC] then push [
DUP
+ 8(TSQL
SS
)]
or [
MID
5(DTCS
SS
)] to turn ON the pocket
beep with tone squelch or DTCS squelch, re-
spectively.
v When a signal with the matching tone is re-
ceived, the transceiver emits beep tones for
30 sec. and blinks
“S.”
b Push [PTT] to answer or push [
CLR
A(MW)]
to stop the beeps and blinking.
•“S” disappears and cancels the pocket beep
function automatically.
n To cancel the tone squelch or DTCS squelch
function, push [FUNC] then [
ENT
C(T-OFF)].
•“T SQL” or “DTCS” disappears.
TSQLS
DTCSS
