MEMORY OPERATION
■ Programming a memory channel

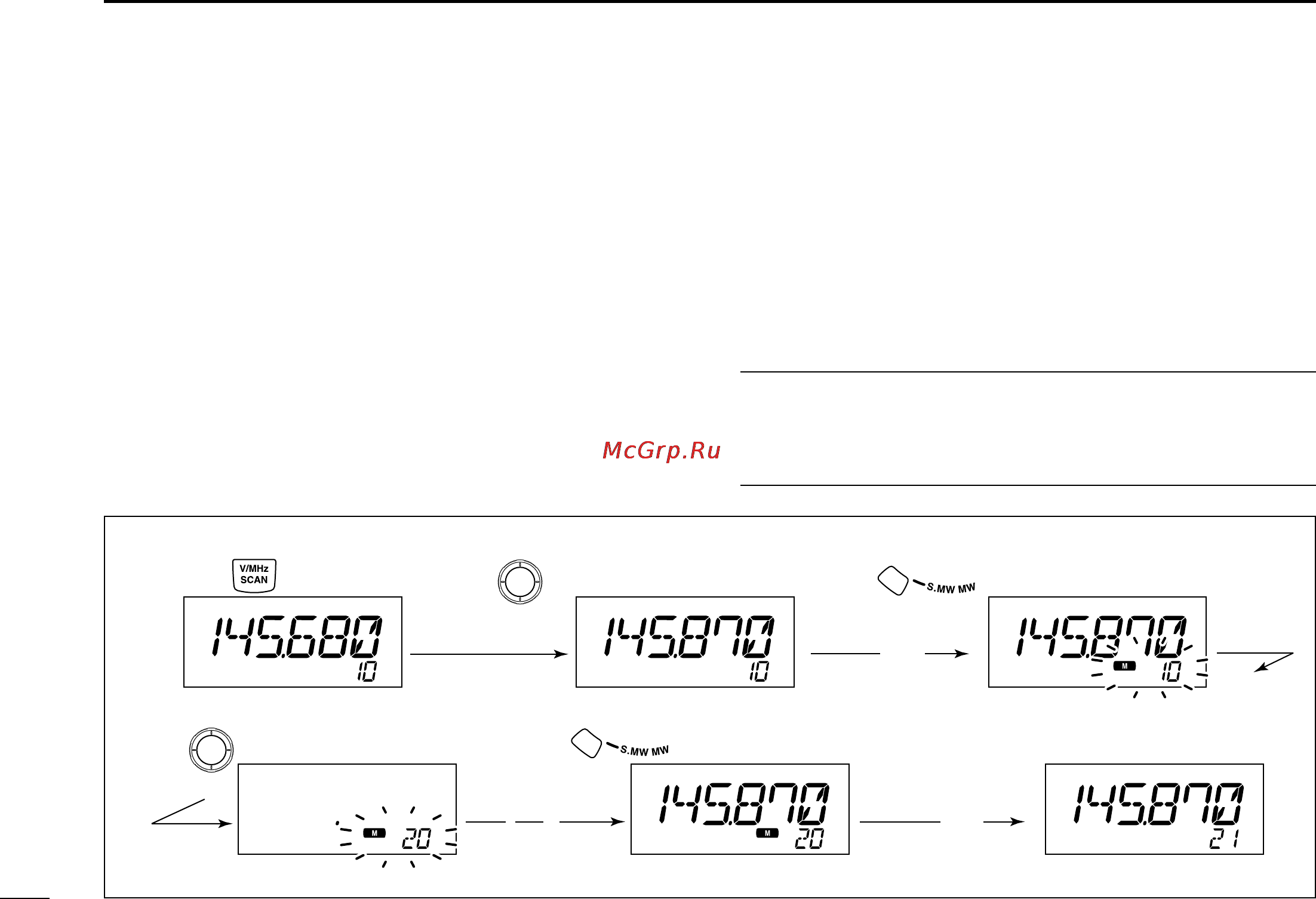

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the controller.
Push
Rotate for setting frequency, etc.
Push .
Rotate
Push for 1 sec. and continue to push
➠
Beep
“
Beep
Beep
Beep
“
“
“
“
“
Beep
“
VFO settings, including the set mode contents such as sub-
audible tone frequency or offset, can be programmed into a
memory channel.
qSet the desired frequency.
➥ Push [V/MHz•SCAN] to select VFO mode.
➥ Set the frequency using [DIAL].
➥ Set other data (e.g. tone frequency, duplex information,
etc.) if required.
wPush [S.MW•MW].
•“!” indicator and the memory channel number blink.
eRotate [DIAL] to select the memory channel to be pro-
grammed.
• Memory channels not yet programmed are blank.
rPush and hold [S.MW•MW] for 1 sec. to program.
• 3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [S.MW•MW] after programming.
✔CONVENIENT
Memory programming can be performed in versatile ways
e.g. memory channel to the same (or different) memory chan-
nel, memory channel to the call channel, etc.
