DIGITAL MODE OPERATION
DD
Your own call sign programming
Your own call sign must be programmed for both digital voice
and low-speed data communications
(including GPS transmis-
sion).

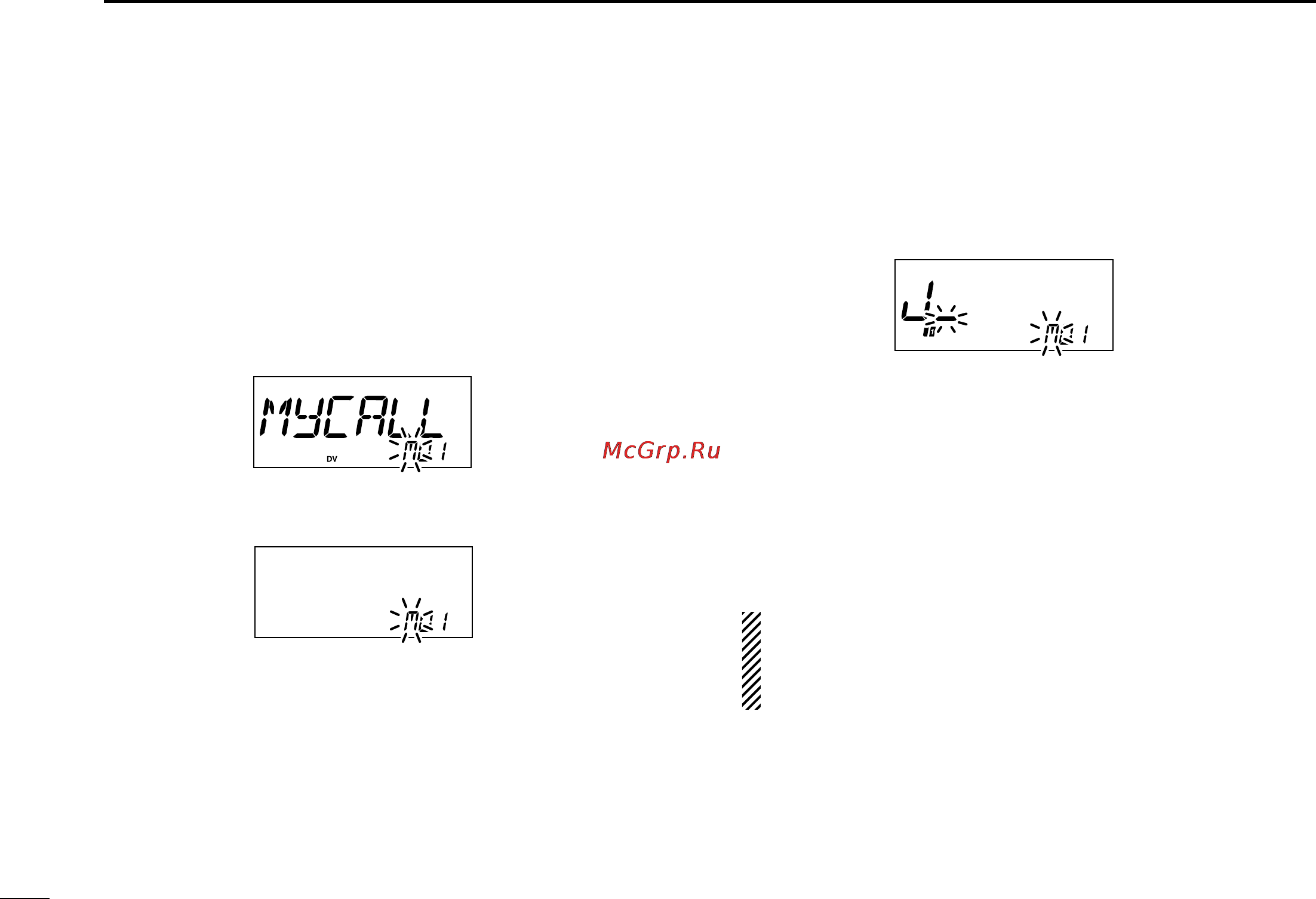

q Push [SET•LOCK] to enter call sign set mode.
• Rotate [DIAL] to select “CALLS,” if “SET” or “MESSAG” is dis-
played.
w Push
[SET•LOCK]
or [S.MW•MW] several times to select
“MyCALL,” then push [BAND•MODE].
e Rotate [DIAL] to select the desired call sign channel from
“M01” to “M06.”
r Push [BAND•MODE] for 1 sec. to enter call sign program-
ming mode.
• The 1st digit blinks.
t Rotate [DIAL] to select the desired character or code.
• Push [SET•LOCK] or [S.MW•MW] to move the cursor right or
left, respectively.
y Push [SET•LOCK] to select 2nd digit, then rotate [DIAL]
to select the desired character or code.
• 2nd digit blinks (1st digit stops blinking).
• Repeat this step for programming your own call sign.
u Push [BAND•MODE] for 1 sec. to save the call sign and
enter the note programming mode.
• Up to a 4-digit of note (operating radio type or area) can be set.
i Push [BAND•MODE] for 1 sec. to save the note and exit
the note programming mode.
o Repeat steps e to i to program other call sign channels.
!0 Push one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
NOTE: During the call sign programming mode
(r to u),
push [V/MHz•SCAN] to clear the entered call sign
(the cur-
sor returns to the 1st digit position), push [V/MHz•SCAN]
again to display the previously saved call sign.
