Icom ID-800H [55/144] I memory bank setting
![Icom ID-800H [55/144] I memory bank setting](/views2/1074464/page55/bg37.png)
38
5
MEMORY OPERATION
5

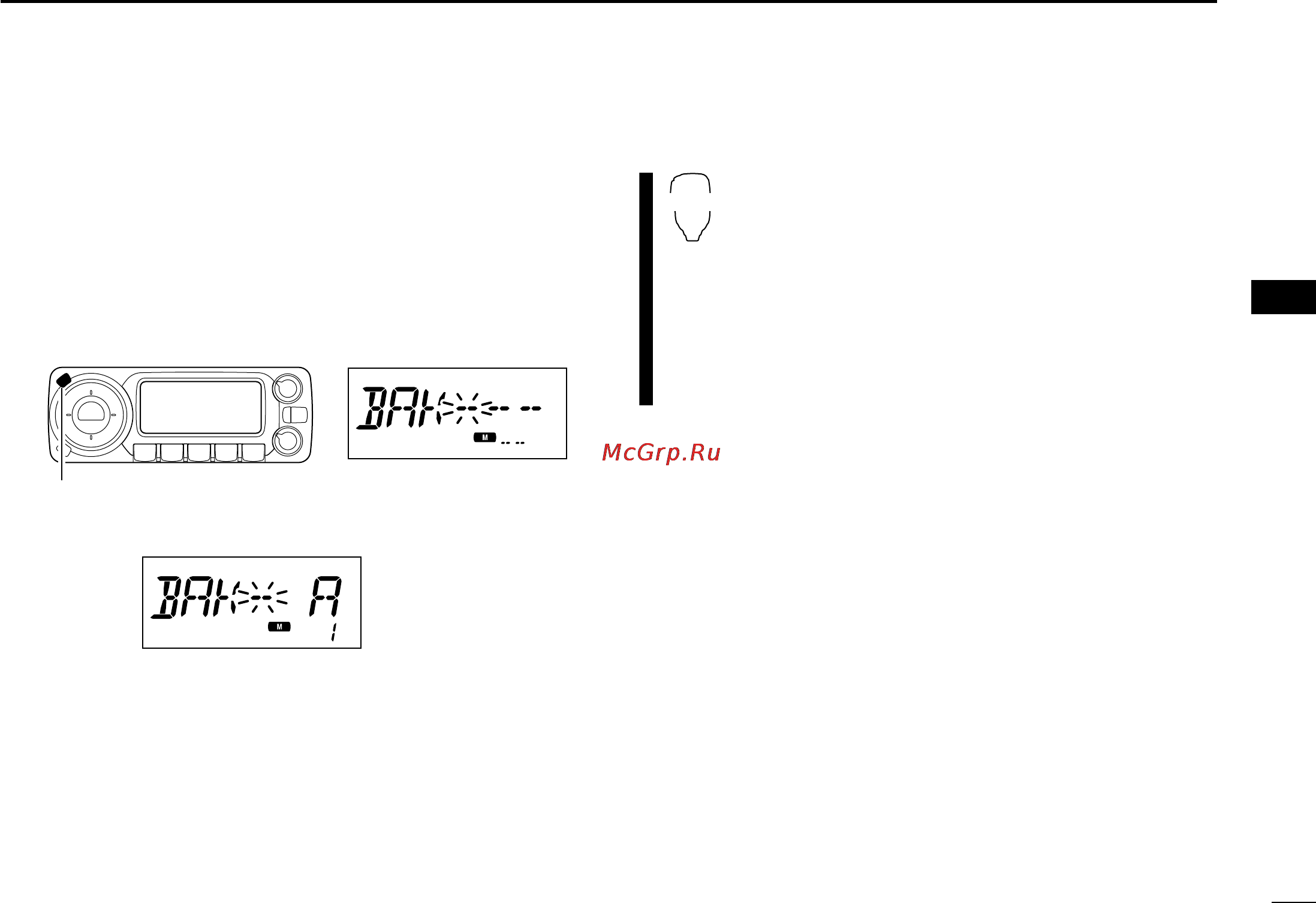

q Push [M/CALL•PRIO] several times to select memory
mode, then select the desired memory channel via [DIAL].
w Push [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select “SET,” if “CALLS” or “MESSAG” is dis-
played.
e Push [SET•LOCK] or [S.MW•MW] several times until
“BAK” appears.
r Rotate [DIAL] to select the desired bank.
t Push any key below the display to assign the channel to
the bank and exit set mode.
z Push [MR/CALL] then select the desired mem-
ory channel via [
YY
]/[
ZZ
] or keypad.
x Push [
SET
B(D-OFF)] to enter set mode.
• Push [
YY
] or [
ZZ
] to select “SET,” if necessary.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “BAK” appears.
v Push [
YY
]/[
ZZ
] to select the desired bank.
b Push [
CLR
A(MW)] to assign the channel to the
bank and exit set mode.
SET
B
[SET•LOCK]
■ Memory bank setting [
ID-800H_1.qxd 2007.06.14 3:09 PM Page 38
