41
6
CALL CHANNEL OPERATION
■ Programming a call channel
Operating frequency, duplex information, subaudible tone in-
formation (tone encoder or tone squelch ON/OFF and its fre-
quency) can be programmed into the call channel.
q Set the desired frequency in VFO mode.
➥ Push [V/MHz•SCAN] to select VFO mode.
➥ Set the frequency using [DIAL].
➥ Set other data as desired.
w Push [S.MW•MW] momentarily.
e Rotate [DIAL] to select the desired call channel.
•“!” indicator and “C1” or “C2” blink.
r Push and hold [S.MW•MW] for 1 sec. to program.
• 3 beeps sound and the unit returns to VFO mode automatically.
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency.
➥ Set other data as desired.
x
Push [FUNC], then [
CLR
A(MW)] momentar-
ily.
c Select the call channel via [
YY
] or [
ZZ
].
v Push [FUNC], and then push and hold
[
CLR
A(MW)] for 1 sec. to program.
• 3 beeps sound and the unit returns to VFO
mode automatically.
MW
[Y]/[Z]
VFO/LOCK

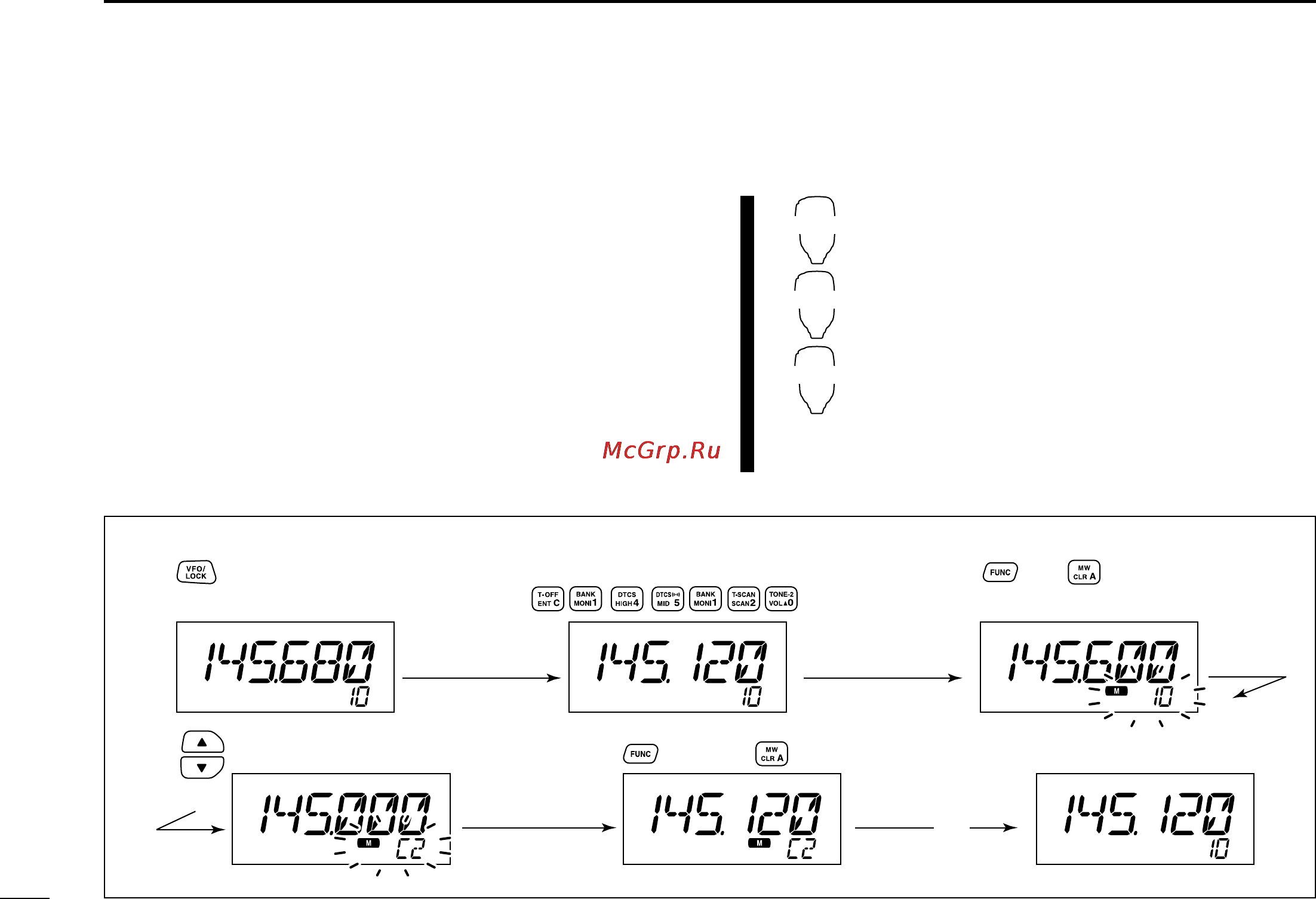

[EXAMPLE]: Programming 145.120 MHz into the call channel 2 via the microphone.
Set the frequency.
Push to select VFO mode.
Push , then .
Push , then push for 1 sec.
➠
Push until “C2” appears.
Beep
Beep
Beep
“
“
“
“
“
