Icom ID-800H [8/144] Quick reference guide
![Icom ID-800H [8/144] Quick reference guide](/views2/1074464/page8/bg8.png)
I
QUICK REFERENCE GUIDE
■ Installation

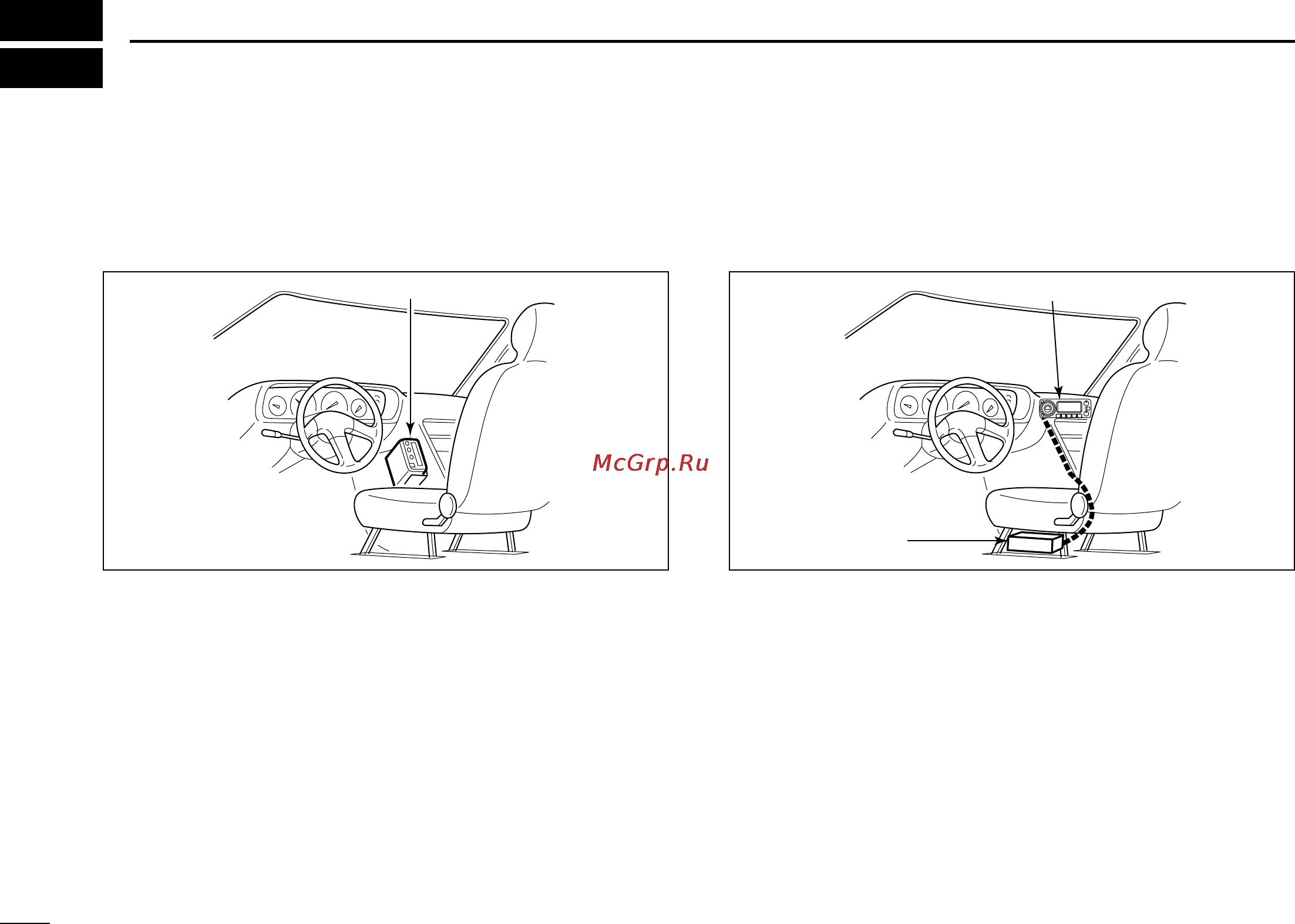

D Installation methods
• Single body installation
• The supplied mounting bracket (or optional MB-17A) can be
used for the main unit installation.
• Remote installation
• The supplied OPC-600/R
SEPARATION CABLE
can be used for
remote installation.
• Optional OPC-601/R
SEPARATION CABLE
(7 m; 23 ft) is avail-
able for extend installation.
• Optional MB-58
REMOTE CONTROLLER BRACKET
and MB-65
MOUNTING BASE
are available for increasing front panel
mounting possibilities.
• Optional OPC-440
MICROPHONE CABLE
(5.0 m; 16.4 ft) and
OPC-647 (2.5 m; 8.2 ft) are available to extend the micro-
phone cable.
• Optional OPC-441
SPEAKER CABLE
(5.0 m; 16.4 ft) is avail-
able to extend the speaker cable.
Main unit
Front panel
Transceiver
ID-800H_1.qxd 2007.06.14 3:08 PM Page I
