OTHER FUNCTIONS
DD

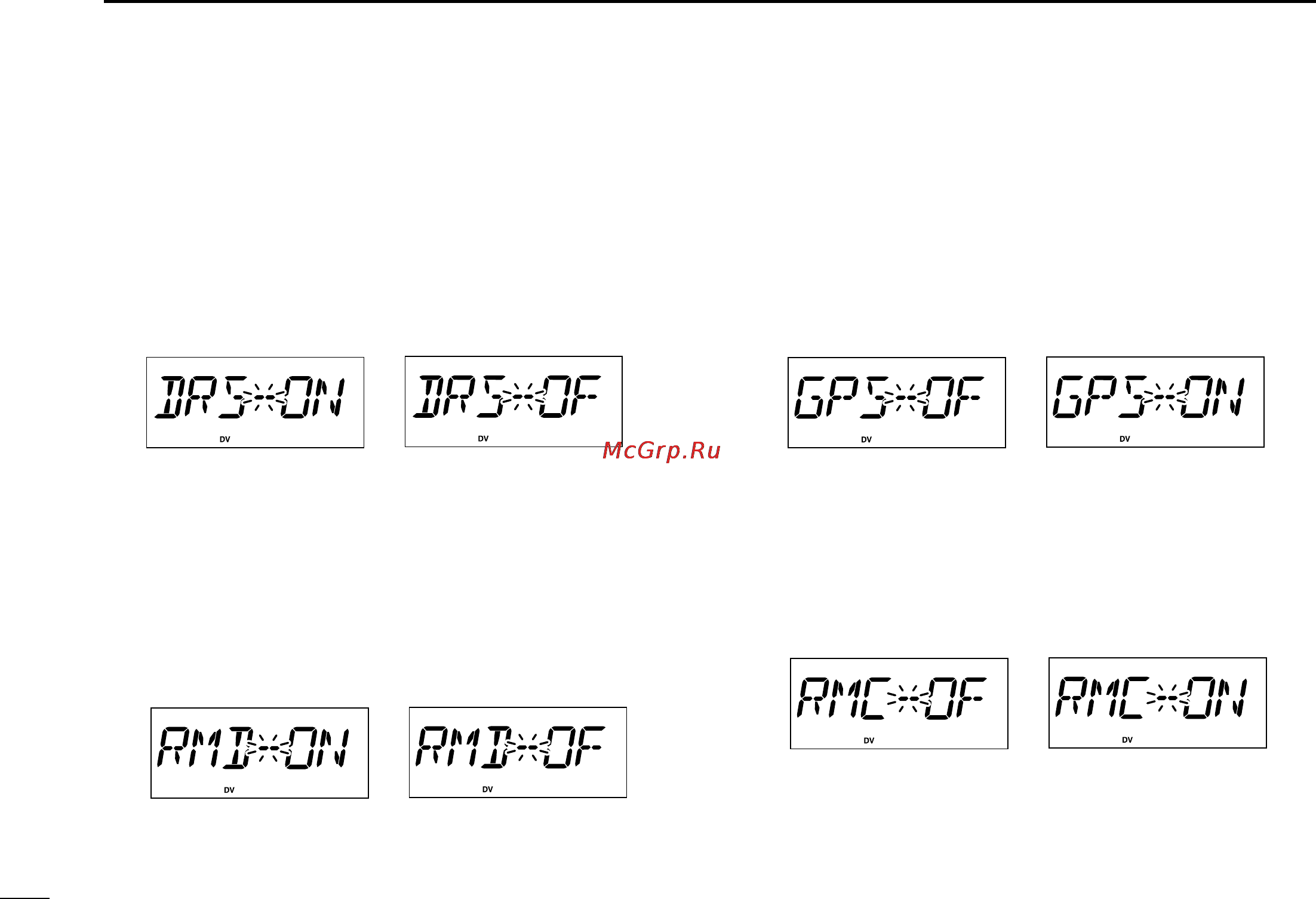

Digital Repeater setting
☞ This item appears when set mode is accessed from digital
(DV) mode only.
When accessing the repeater’s call sign is different as your
programmed, the repeater call sign can be stored into “RPT1
C” automatically by reading the repeater’s transmission. The
stored repeater’s call sign can be re-called when selecting the
repeater call sign. (default: ON)
DD
Auto RX message Display
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Sets auto received message display function ON and OFF.
When this setting is set to ON, the transceiver automatically
indicates the received message. (default: ON)
DD
GPS setting
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Sets the current position indication ON and OFF. When a
GPS receiver (compatible with an RS-232 output/NMEA for-
mat/4800 bps) is connected to [DATA] socket and this setting
is set to ON, the transceiver can indicate the current position
(Latitude and Longitude). (default: OFF)
• Sentence formatter setting
q While selecting “GPS” setting item, push [BAND•MODE]
to enter the sentence formatter setting condition.
w Push
[SET•LOCK]
or [S.MW•MW] to select the desired
sentence formatter to be activated.
• RMC, GGA, GLL, GSA and VTG are selectable.
e Rotate [DIAL] to select “ON” to activate the sentence for-
matter.
r Repeat steps w and e to set the link condition.
• Only three sentence formatters are activated at same time.
