MEMORY OPERATION
36
5
■ Memory clearing
Contents of programmed memories can be cleared (blanked),
if desired.
q Push [V/MHz•SCAN] to select VFO mode.
w Push [S.MW•MW] momentarily.
•“!” indicator and the memory channel number blink.
e Rotate [DIAL] to select the memory channel to be cleared.
• Memory channels not yet programmed are blank.
r Perform the following operation within 1.5 sec.
- Push [S.MW•MW] momentarily.
- Push and hold [S.MW•MW] for 1 sec.
• 3 beep sound, then the contents of the selected memory are
cleared.
•“!” indicator and the channel number blink.
• When clearing the call channel, the current VFO conditions are
re-programmed into the call channel automatically.
t Push [V/MHz•SCAN] to return to VFO mode.
NOTE: BE CAREFUL! — the contents of cleared memo-
ries CANNOT be recalled.

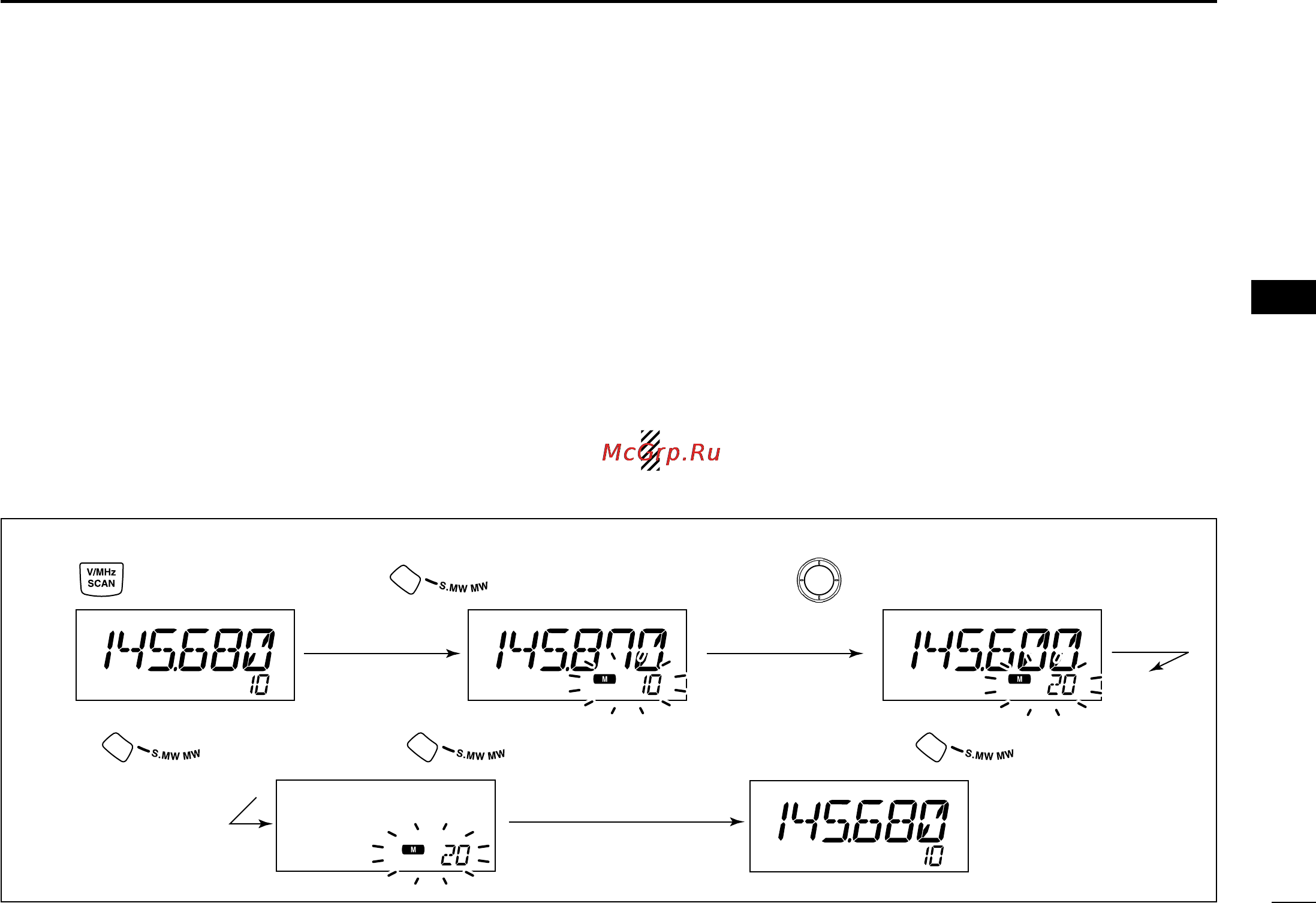

[EXAMPLE]: Clearing memory channel 20.
Push to select VFO.
Rotate for selecting memory channel.
Push .
Push any switch, except .
Push momentarily, then push again for 1 sec.
Beep
Beep
Beep
“
“
“
“
“
