DIGITAL MODE OPERATION
DD
Station call sign programming
Station call sign must be programmed for the specified sta-
tion call as well as repeater operation in both digital voice and
low-speed data communications.

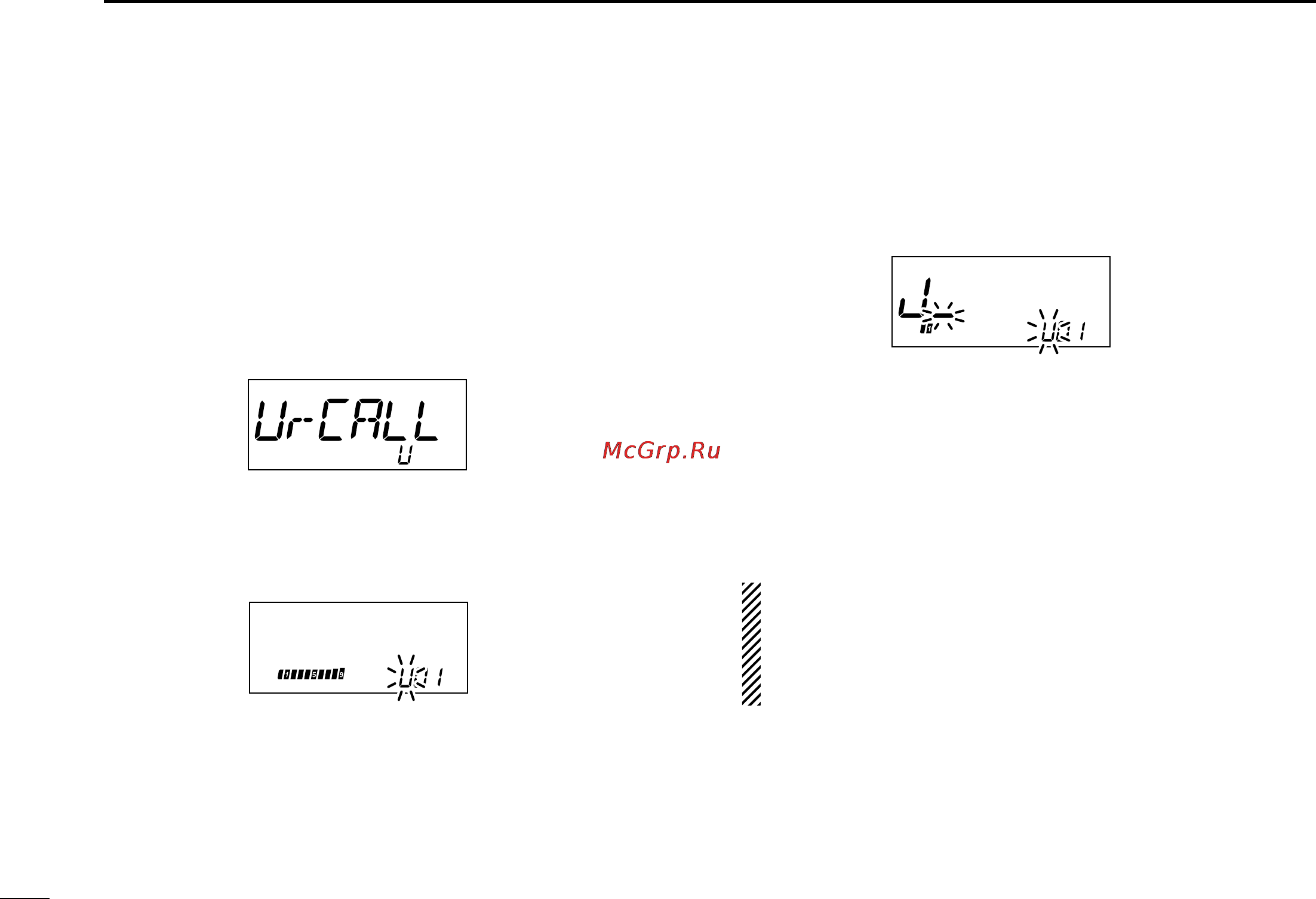

q Push [SET•LOCK] to enter call sign set mode.
• Rotate [DIAL] to select “CALLS,” if “SET” or “MESSAG” is dis-
played.
w Push
[SET•LOCK]
or [S.MW•MW] several times to select
“UrCALL,” then push [BAND•MODE].
e Rotate [DIAL] to select the desired call sign channel.
•“U” indication blinks.
•“U01” to “U99” are available.
•
The call sign “CQCQCQ” is preprogrammed in the channel “U- -.”
r Push [BAND•MODE] for 1 sec. to select call sign pro-
gramming mode.
• The 1st digit blinks.
t Rotate [DIAL] to select the desired character or code.
• Push [SET•LOCK] or [S.MW•MW] to move the cursor right or
left, respectively.
y Push [SET•LOCK] to select 2nd digit, then rotate [DIAL]
to select the desired character or code.
• 2nd digit blinks (1st digit stops blinking).
• Repeat this step for programming station call sign.
u Push [BAND•MODE] for 1 sec. to save the call sign.
i Rotate [DIAL] to select an another channel from “U01” to
“U99.”
o Repeat steps e to u to program other station call sign
channels.
!0 Push one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
NOTE: During the call sign programming mode (r to y),
push [V/MHz•SCAN] to clear the entered call sign
(the cur-
sor returns to the 1st digit position), push [V/MHz•SCAN]
again to select “CQCQCQ,” “/” and the previously saved
call sign.
