5
1
PANEL DESCRIPTION
!6TONE/DIGITAL SQUELCH INDICATORS
❍ While in the analog (FM) mode operation
➥ “T” appears while the subaudible tone encoder is in
use.
(p. 21)
➥ “T SQL” appears while the tone squelch function is in
use.
(p. 55)
➥ “DTCS” appears while the DTCS squelch function is
in use.
(p. 55)
➥ “S” appears with the “T SQL” or “DTCS” indicator
while the pocket beep function
(with CTCSS or DTCS)
is in use. (p. 55)
❍ While in the digital (DV) mode operation
➥ “DSQL” appears while the digital call sign squelch
function is in use.
(p. 86)
➥ “CSQL” appears while the digital code squelch func-
tion is in use.
(p. 86)
➥ “S” appears with the “DSQL” or “CSQL” indicator
while the pocket beep function
(with DSQL or CSQL)
is in use. (p. 85)
!7DUPLEX INDICATORS (p. 21)
“DUP” appears when plus duplex, “DUP –” appears when
minus duplex (repeater) operation is selected.

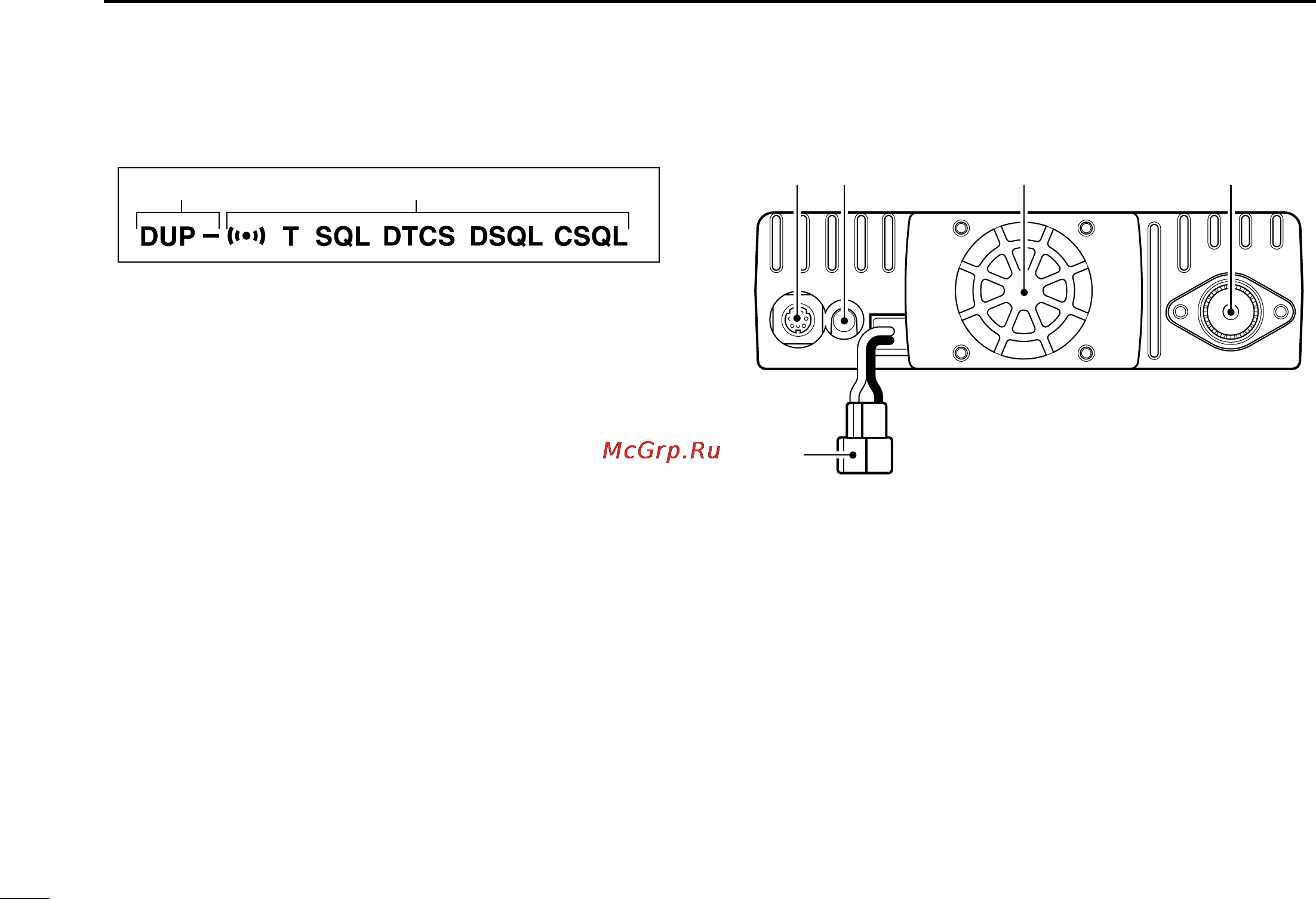

■ Rear Panel
qDATA SOCKET [DATA]
Connects a TNC (Terminal Node Controller), etc. for data
communications.
• See p. 6 for connection information.
wEXTERNAL SPEAKER JACK [SP]
Connects an 8 Ω speaker.
• Audio output power is more than 2.0 W.
eCOOLING FAN
Rotates while transmitting.
Also rotates while receiving depending on the setting in ini-
tial set mode.
(p. 107)
wre
t
q
!7 !6
ID-800H_1.qxd 2007.06.14 3:09 PM Page 5
