103
12
OTHER FUNCTIONS
DD

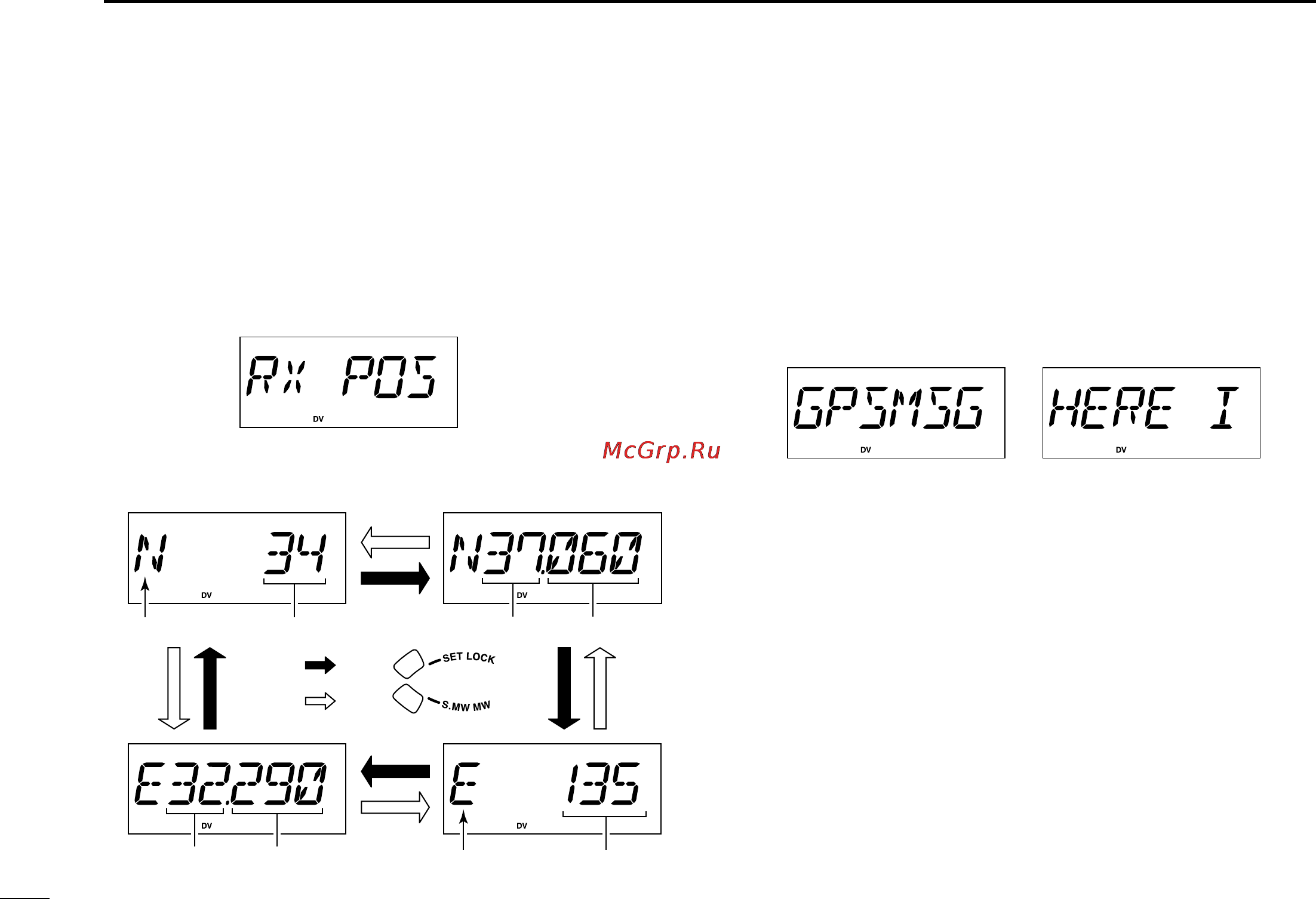

GPS received position indication
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Indicates a received position information from the other trans-
ceiver.
➥ Select “Rx POS,” then push [BAND•MODE] to enter the
received position indication.
• Latitude and longitude data appear alternately by pushing
[SET•LOCK] or [S.MW•MW]. (see below)
DD
GPS received message indication
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Indicates a received message with the GPS transmission
from the other transceiver.
➥ Select “GPSMSG,” then push [BAND•MODE] to enter the
received message indication when the message is at-
tached.
DegreesNorth or South
Minutes Seconds
DegreesEast or West
Minutes Seconds
Push
Push
