REPEATER OPERATION
D Subaudible tones
q Select the frequency band, mode/channel you wish to set
the subaudible tones, such as VFO mode or memory/call
channel.
w Push [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select “SET,” if “CALLS” or “MESSAG” is dis-
played.
e Push [SET•LOCK] or [S.MW•MW] several times until “T”
and “rT” appear; or until “TSQL” and “CT” appear for tone
squelch or pocket beep use.
• When “d” is displayed in place of the 100 MHz digit, cancel the
DTMF memory encoder in advance. (p. 53)
r Rotate [DIAL] to select and set the desired subaudible fre-
quency.
t Push any key below the display to exit set mode.

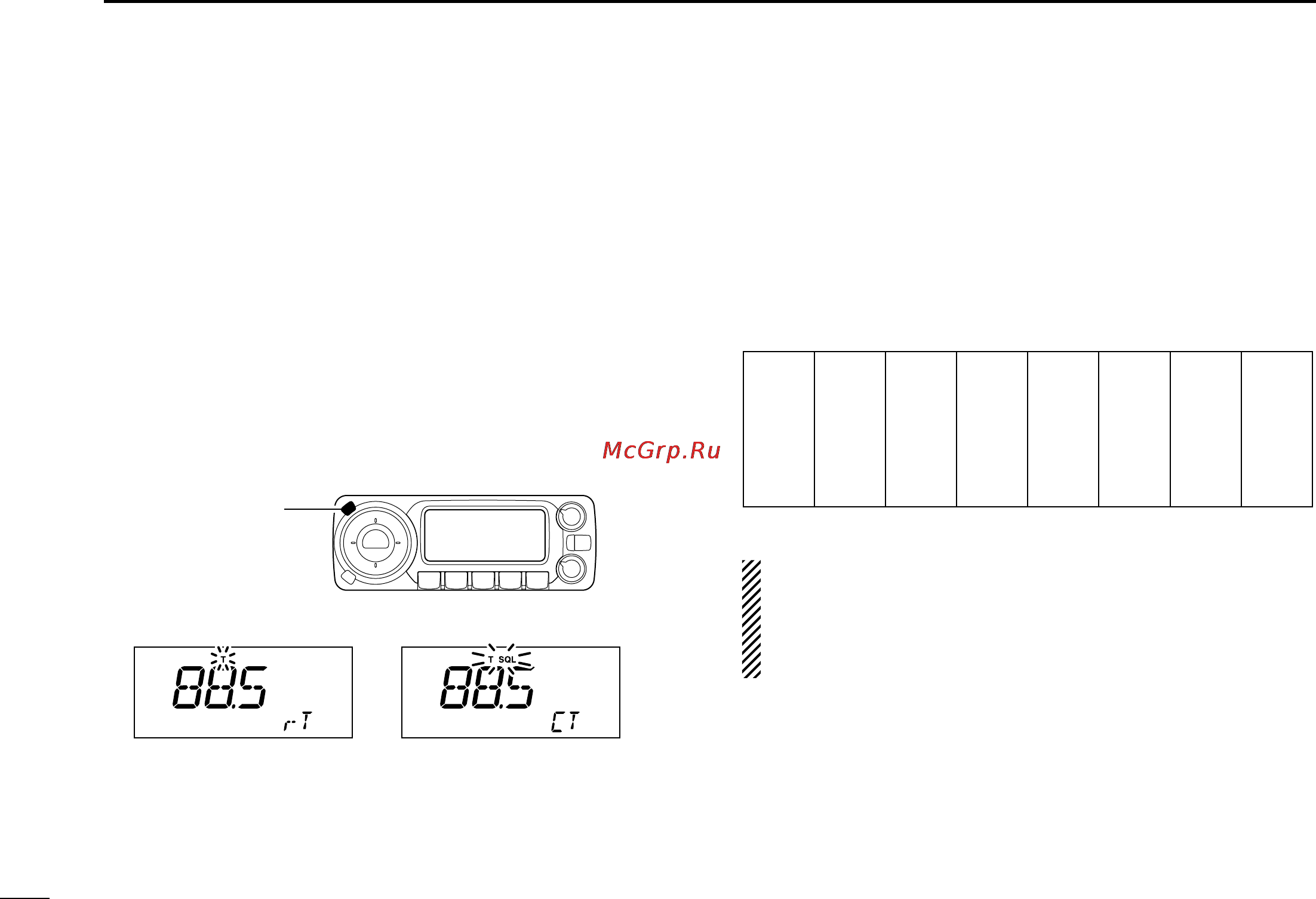

• Subaudible tone frequency list
(unit: Hz)
NOTE: The subaudible tone encoder frequency can be set
in a memory/call channel temporarily. However, the set fre-
quency is cleared once another memory channel or VFO
mode is selected. To store the tone frequency permanently,
overwrite the channel information.
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
[SET•LOCK]
“T” and “rT” appears
“TSQL” and “CT” appears
