Icom ID-800H [69/144] Dtmf memory encoder
![Icom ID-800H [69/144] Dtmf memory encoder](/views2/1074464/page69/bg45.png)
52
9
DTMF MEMORY ENCODER
9

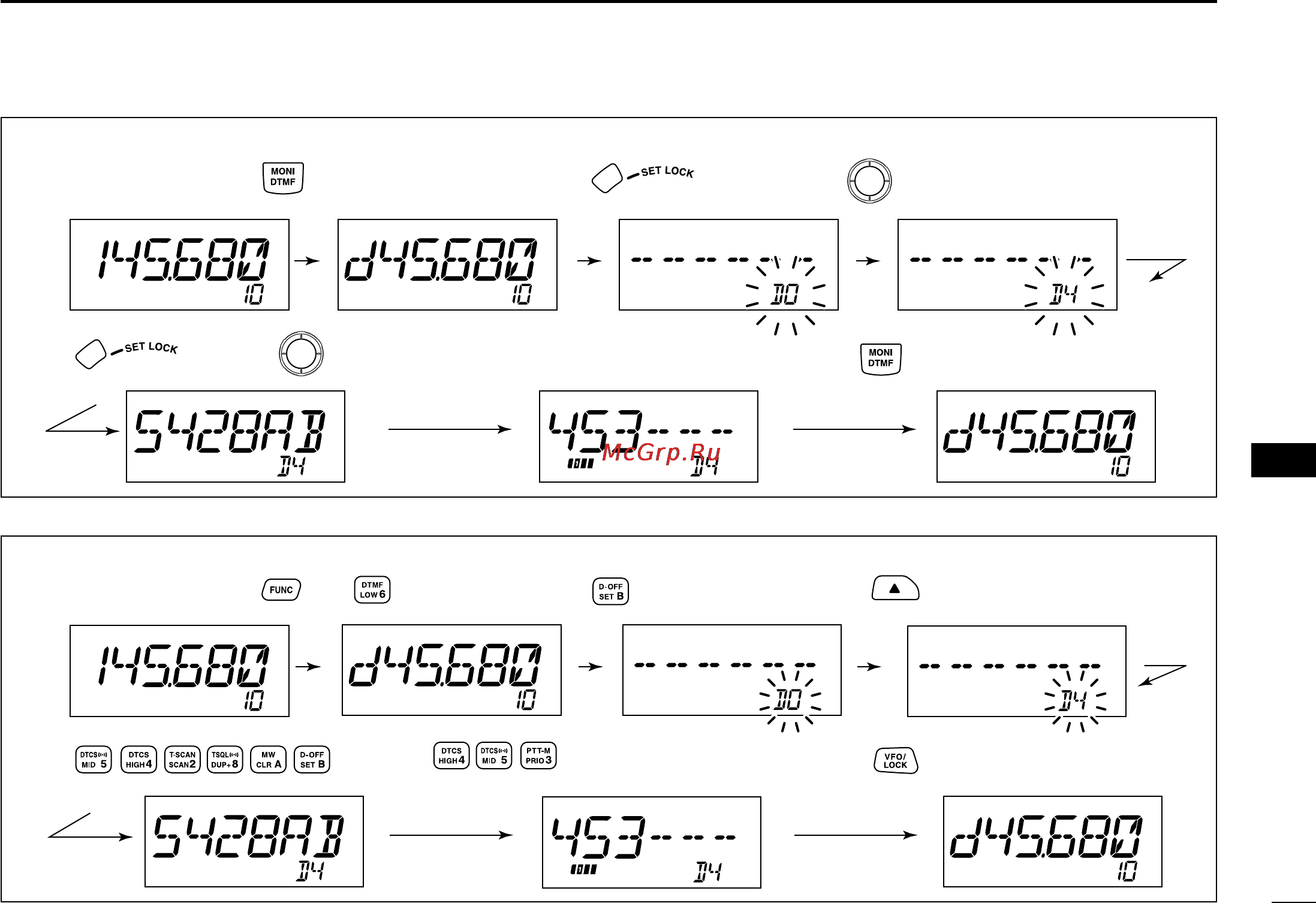

[EXAMPLE]: Programming “5428AB453” into DTMF memory channel “D4” via controller.
Push
Push then rotate
Repeat the previous step until
the desired code is entered.
Push
RotatePush for 1 sec.
[EXAMPLE]: Programming “5428AB453” into DTMF memory channel “D4” via microphone
Push
Push
Push
Push
Push then .
ID-800H_1.qxd 2007.06.14 3:09 PM Page 52
