Icom ID-800H [114/144] Other functions
![Icom ID-800H [114/144] Other functions](/views2/1074464/page114/bg72.png)
97
12
OTHER FUNCTIONS
DD

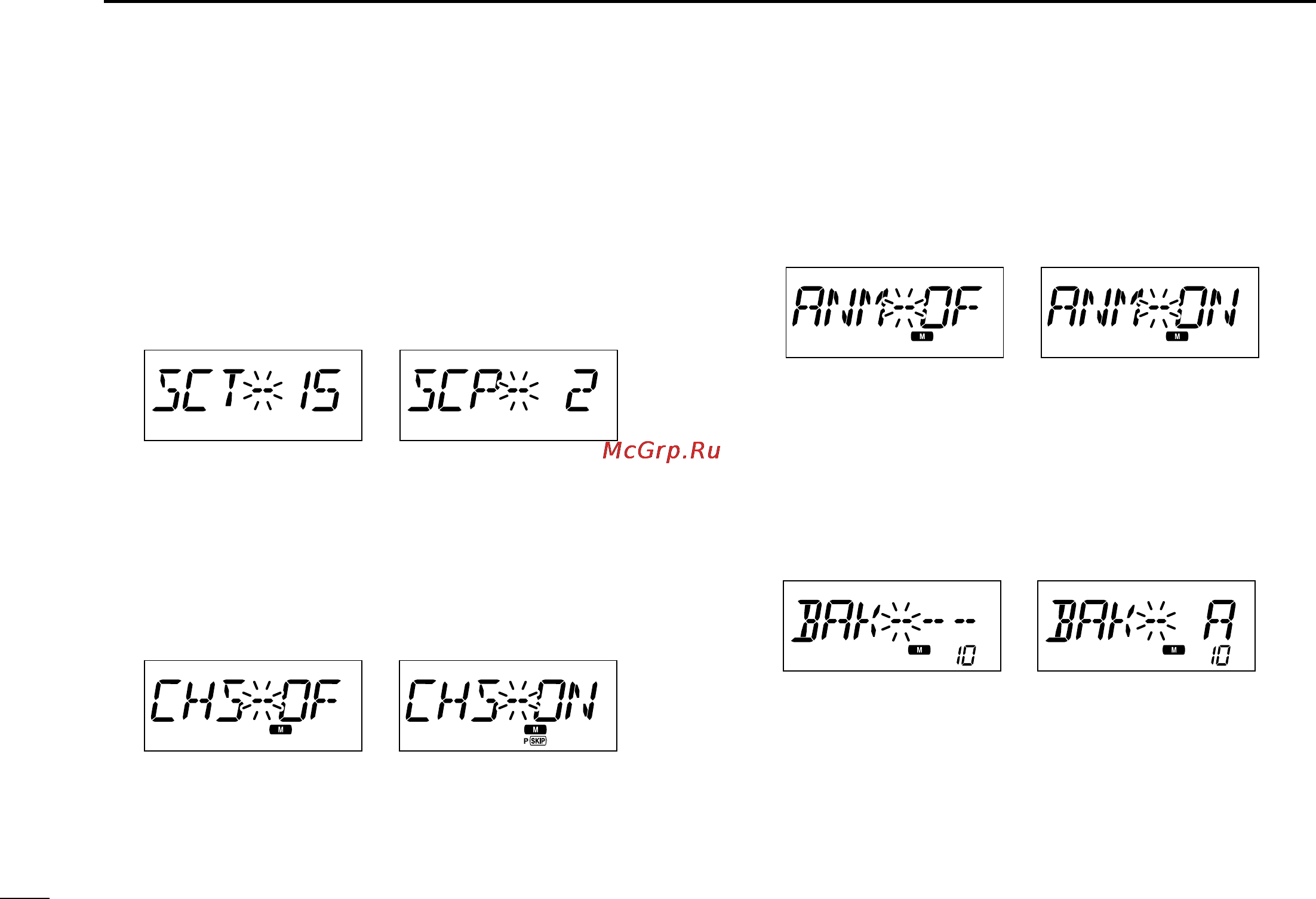

Scan resume timer
Selects scan resume timer from SCT-15 (default), SCT-10,
SCT-5 and SCP-2.
• SCT-15/10/5 : Scan pauses for 15/10/5 sec., then re-
sumes.
• SCP-2 : Pause on a signal until signal disap-
pears, then resumes 2 sec. after the sig-
nal disappears.
DD
Channel skip setting
☞ This item appears when set mode is accessed from memory
mode only.
Sets channel skip setting from ON and OFF for memory skip
scan operation.
DD
Memory name setting
☞ This item appears when set mode is accessed from memory
mode only.
Sets memory name setting from ON (appear) and OFF (not
appear; default) for memory name appearance.
DD
Memory bank setting
☞ This item appears when set mode is accessed from memory
mode only.
Sets the desired memory bank (A to J and OFF) to assign the
regular memory channels.
• “~” or “P ~” appears
when set to “ON.”
• Default setting
ID-800H_1.qxd 2007.06.14 3:09 PM Page 97
