110
12
OTHER FUNCTIONS
12
DD

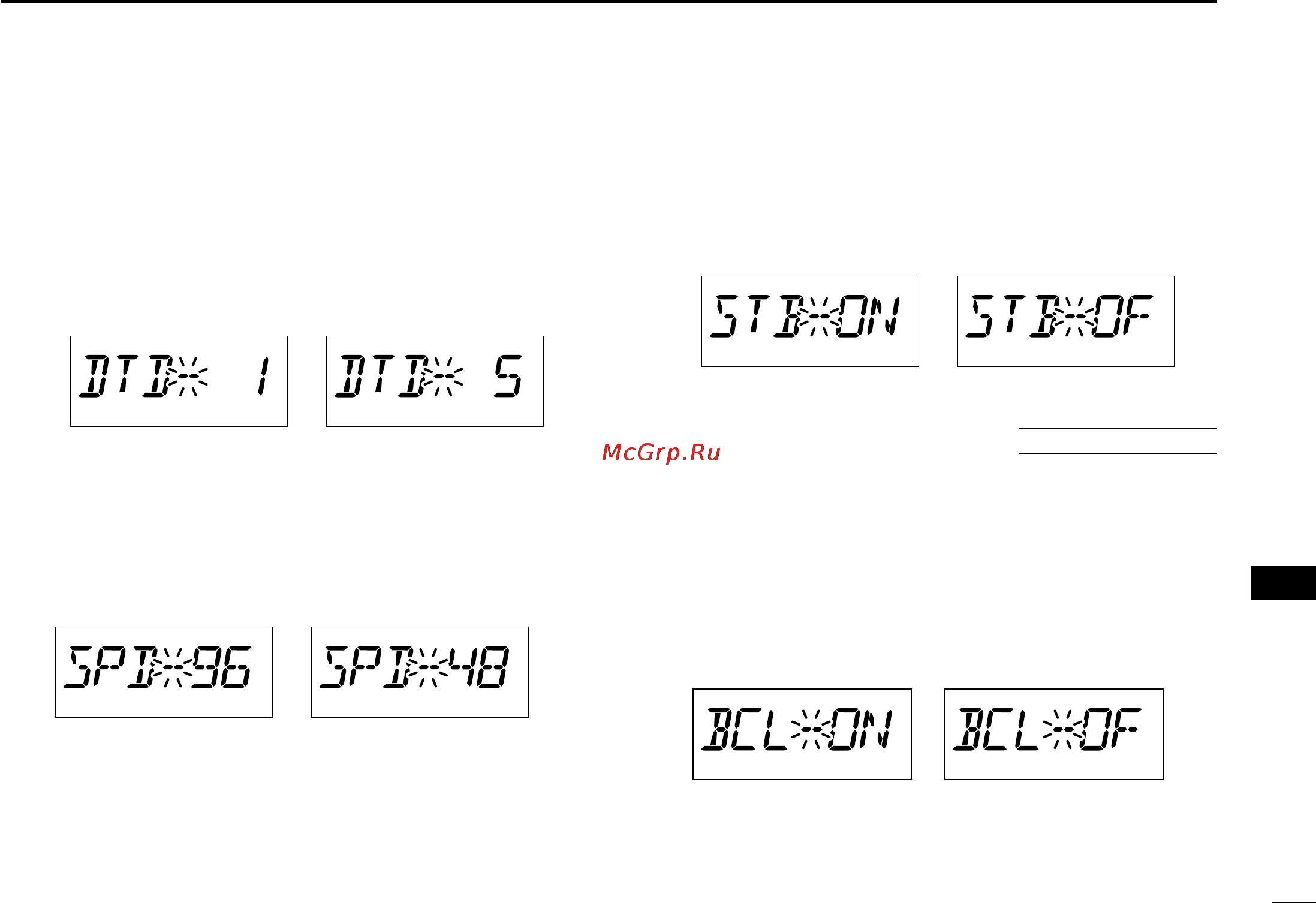

DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
• 1 : 100 msec. interval; 5.0 cps rate (default)
• 2 : 200 msec. interval; 2.5 cps rate
• 3 : 300 msec. interval; 1.6 cps rate
• 5 : 500 msec. interval; 1.0 cps rate
DD
Data Speed
Select the communication speed between the transceiver and
PC for low-speed data communication from 4800 bps or 9600
bps. (default: 9600 bps)
DD
Standby Beep
Turns the beep emission capability ON and OFF when the
communicating station finishes transmitting or the receive sig-
nal disappears. while in the digital mode operation.
(default: ON)
DD
Busy lockout
The busy lockout function inhibits the transmission while re-
ceiving a signal on the selected frequency to prevent interfer-
ence to another stations.
ON : The transmission with [PTT] is inhibited and
beeps sound while the selected frequency is in
busy. (default)
OFF : The transmission with [PTT] is possible even the
selected frequency is in busy.
U.S.A. version only
ID-800H_1.qxd 2007.06.14 3:09 PM Page 110
