100
12
OTHER FUNCTIONS
12
DD

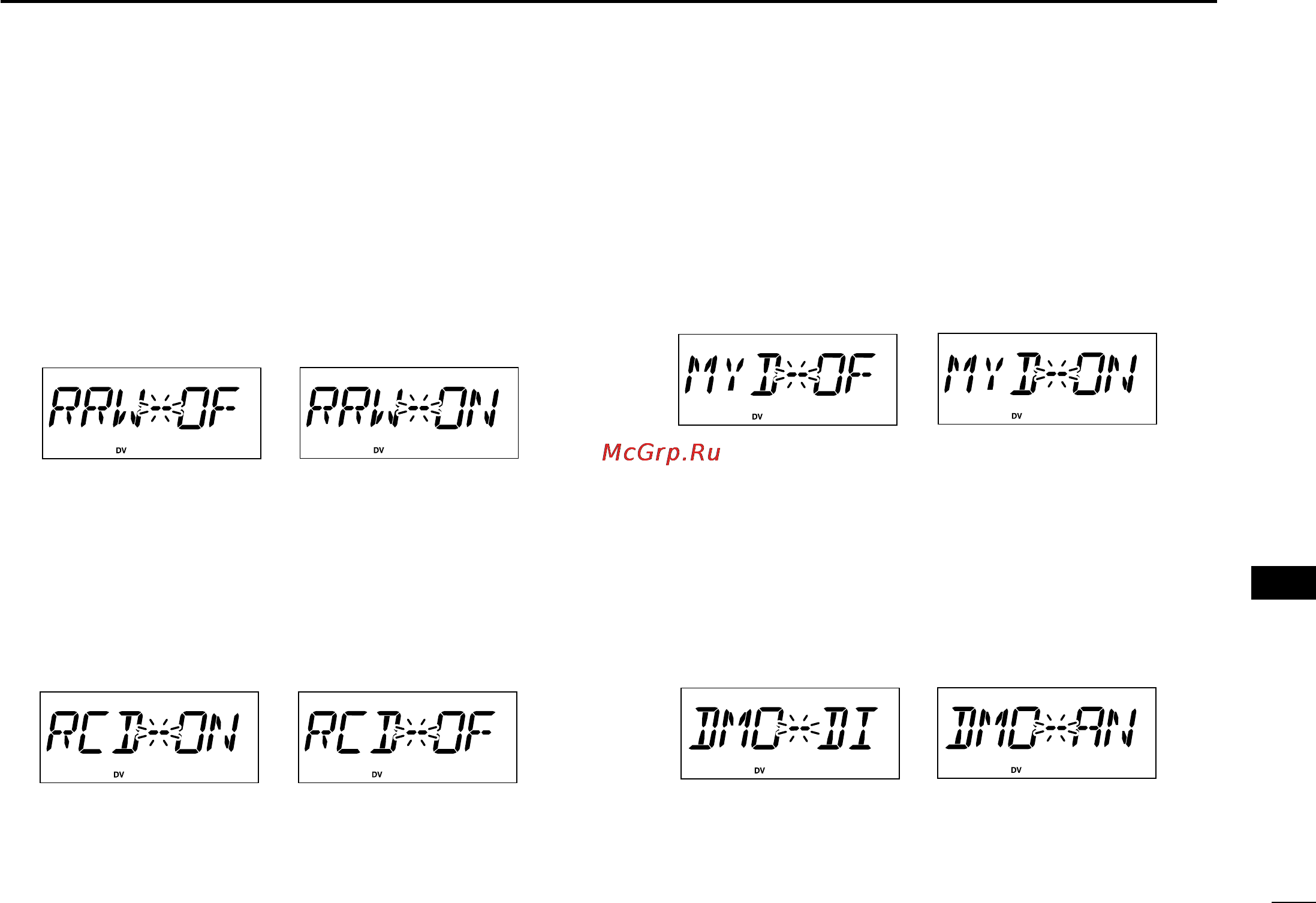

Auto Received Repeater Call sign Set
☞ This item appears when set mode is accessed from digital
(DV) mode only.
When an individual station call via the repeater is received,
the repeater call sign can be stored automatically.
(default: OFF)
The set call sign cannot be re-called when another repeater
call sign is set, if the call sign has not been saved.
DD
Auto Received Call sign Display
☞ This item appears when set mode is accessed from digital
(DV) mode only.
When an individual station call is received, the calling station
call sign can be indicated automatically. (default: ON)
DD
Auto MyCALL Display
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Sets auto MyCALL display function ON and OFF. When this
setting is set to ON, the transceiver automatically indicates
your programmed call sign at turning power ON or digital
mode transmission. (default: OFF)
DD
Digital Monitor
☞ This item appears when set mode is accessed from digital
(DV) mode only.
Sets the desired monitoring mode during digital mode opera-
tion from “DI (Digital)” and “AN (Analog).” (default: DI)
Select “ANALOG” when using FM mode for monitoring.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 100
