31
5
MEMORY OPERATION
■
Copying memory contents
This function copies a memory channel’s contents to VFO (or
another memory/call channel). This is useful when searching
for signals around a memory channel frequency and for re-
calling the offset frequency, subaudible tone frequency etc.
D Memory/call➪VFO
q Select the desired memory or call channel.
➥ Push [M/CALL•PRIO] several times to select memory
mode or call channel, then rotate [DIAL] or push
[BAND•MODE] to select the desired memory or call
channel respectively.
w Push and hold [S.MW•MW] for 1 sec. to transfer the se-
lected memory/call channel contents to the VFO.
• VFO mode is selected automatically.
z Select the memory/call channel to be
transferred.
➥ Push [MR/CALL] to select memory mode,
then select the desired memory channel
via [
YY
]/[
ZZ
] or keypad.
➥ Push and hold [MR/CALL] for 1 sec. then
push [BAND] to select the desired call
channel.
x
Push [FUNC], and then push and hold
[
CLR
A(MW)] for 1 sec. to transfer the selected
memory/call channel contents to the VFO.
• VFO mode is selected automatically.
MR/CALL
MW
BAND
[Y]/[Z]

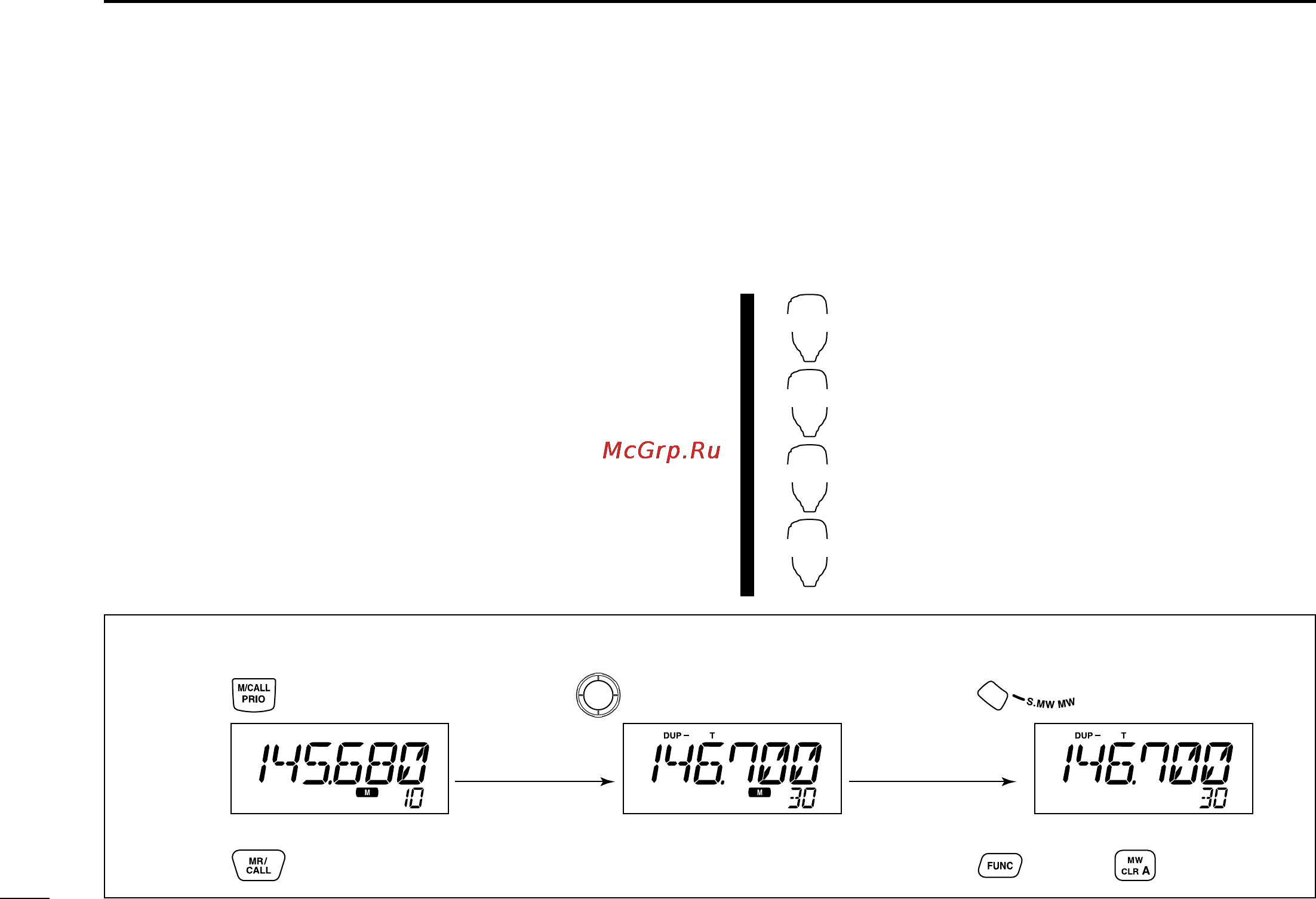

[EXAMPLE]: Transferring memory channel 30 contents to VFO.
Push to select memory mode.
Front panel operation:
HM-133 operation:
Push to select memory mode.
Rotate for selecting memory channel.
Push [Y]/[Z] to select memory channel.
Push for 1 sec.
Push then push for 1 sec.
