![Icom ID-800H [142/144] Mode arrangement](/img/pdf.png)
Icom ID-800H [142/144] Mode arrangement
![Icom ID-800H [142/144] Mode arrangement](/views2/1074464/page142/bg8e.png)
125
15

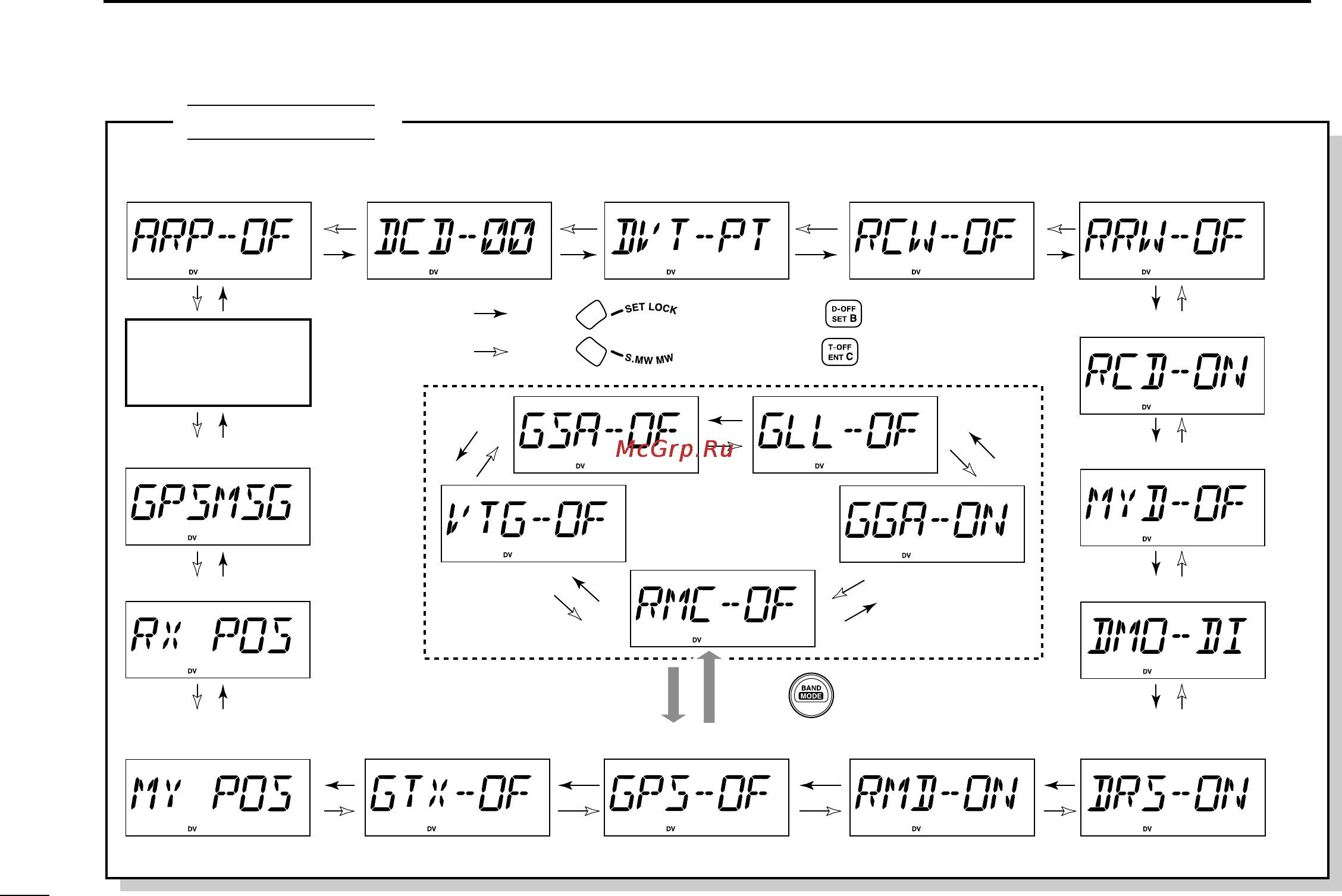

MODE ARRANGEMENT
DV SET MODE
• RX position indication (p. 103)
• Auto reply (p. 99) • Digital code (p. 99)
• Auto data
transmission (p. 99)
• Auto RxCall Set (p. 99)
• Auto Rx RepeaterCall
Set (p. 100)
•
Auto RxCall display (p. 100)
•
Auto MyCall display (p. 100)
• Digital monitor (p. 100)
• Digital repeater setting
(p. 101)
• Auto Rx message
display (p. 101)
• GPS setting (p. 101)
• Auto position
transmission (p. 102)
•
GPS message indication (p. 103)
• My position indication
(p. 102)
Push
: Push (front panel); or (microphone)
: Push (front panel); or (microphone)
Sentence
formatter
Set mode items
for Analog mode
pgs. 95–98
ID-800H_1.qxd 2007.06.14 3:09 PM Page 125
