48
7
SCAN OPERATION
7
■ Scan resume condition
The scan resume condition can be selected as timer or pause
scan. The selected resume condition is also used for priority
watch.
(p. 50)
q Push
[SET•LOCK]
to enter set mode.
• Rotate [DIAL] to select “SET,” if “CALLS” or “MESSAG” is dis-
played.
w Push
[SET•LOCK]
or [S.MW•MW] several times until
“SCT” or “SCP” appears as shown above.
• When “d” is displayed in place of the 100 MHz digit, cancel the
DTMF memory encoder in advance. (p. 53)
e Rotate [DIAL] to set the desired timer:
•“SCT-15” : Scan pauses 15 sec. while receiving a signal.
•“SCT-10” : Scan pauses 10 sec. while receiving a signal.
•“SCT-5” : Scan pauses 5 sec. while receiving a signal.
•“SCP-2” : Scan pauses until the signal disappears and then
resumes 2 sec. later.
r Push any key below the display to exit set mode.
[
z Push [BAND] and [
YY
]/[
ZZ
], then push [BAND] to
select the desired band.
x Push [
SET
B(D-OFF)] to enter set mode.
• Push [
YY
] or [
ZZ
] to select “SET,” if necessary.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “SCT” or “SCP” appears as shown at
left.
v Push [
YY
] or [
ZZ
] to select the scan resume condi-
tion.
• See item e at left for scan resume condition details.
b Push [
CLR
A(MW)] to exit set mode.
SET
B

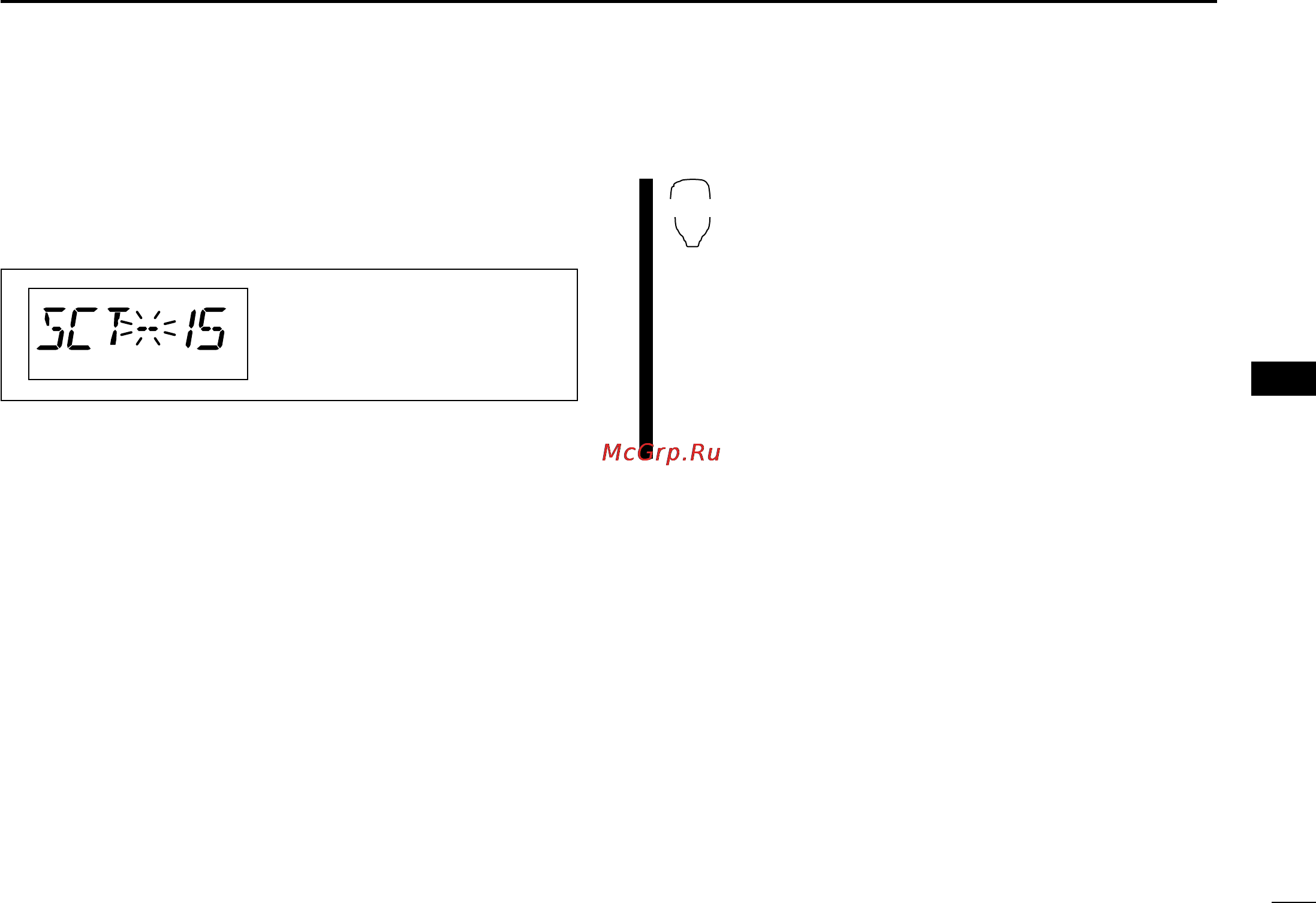

The display shows that the
scan will resume 15 sec. after
it stops.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 48
