22
4
REPEATER OPERATION
4

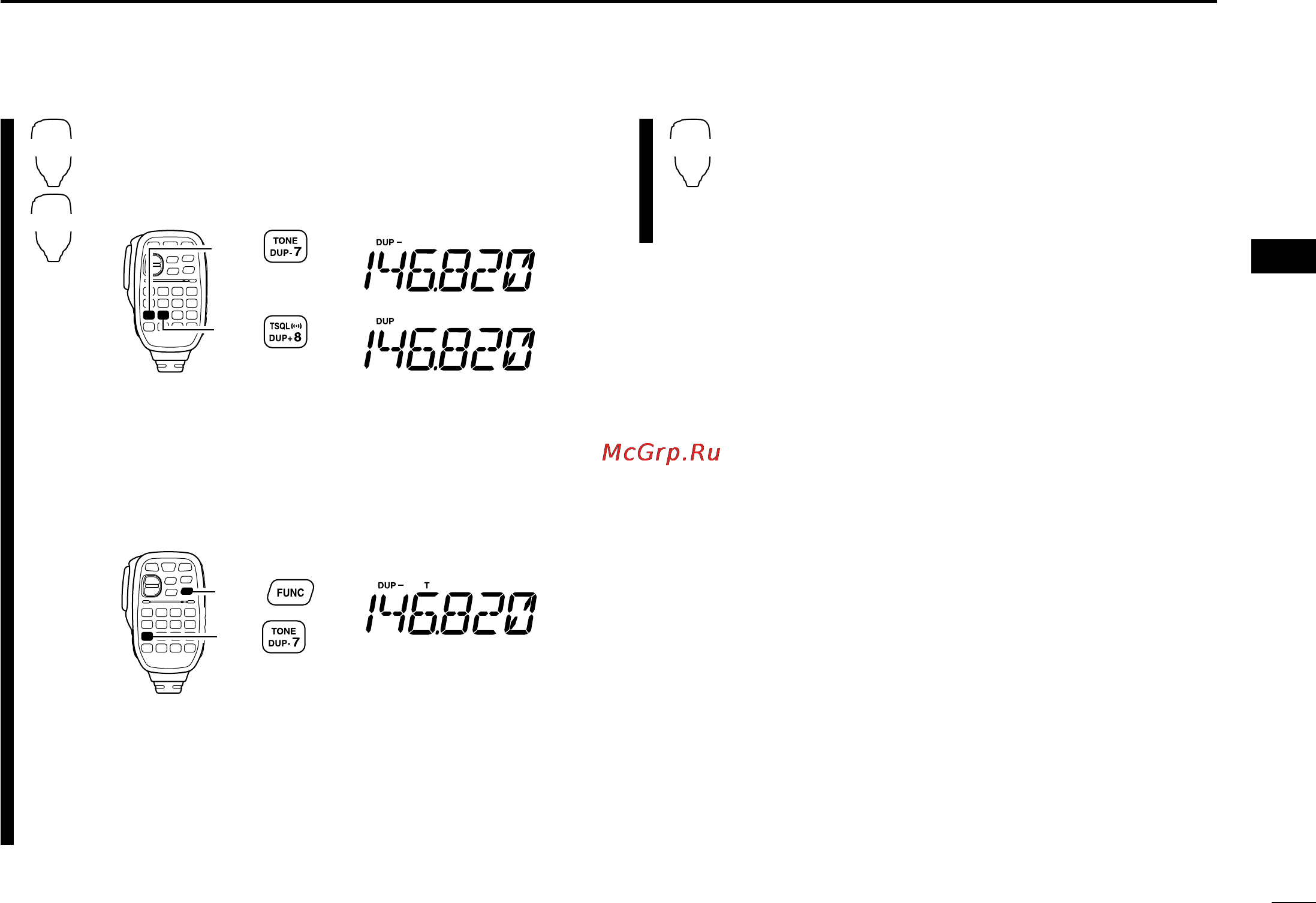

z Set the receive frequency (repeater output fre-
quency). (pgs. 11, 12)
x Push [
DUP
– 7(TONE)] to select minus duplex;
push [
DUP
+ 8(TSQL
SS
)] to select plus duplex.
c Push [FUNC] then [
DUP
– 7(TONE)] to turn ON
the subaudible tone encoder according to re-
peater requirements.
• Refer to p. 24 for the tone frequency setting.
• When the repeater requires a different tone system,
see p. 25.
v Push and hold [PTT] to transmit.
b Release [PTT] to receive.
n Push [
MONI
1(BANK)] to check whether the
other station’s transmit signal can be received
directly.
m Push [
SIMP
9(TSQL)] to return to simplex oper-
ation.
•“DUP” or “DUP–” indicator disappears.
, To turn OFF the subaudible tone encoder, push
[FUNC] then [
ENT
C(T-OFF)].
SIMP
9
Push ,
then .
Push
Push
DUP–
7
DUP+
8
ID-800H_1.qxd 2007.06.14 3:09 PM Page 22
