96
12
OTHER FUNCTIONS
12
DD

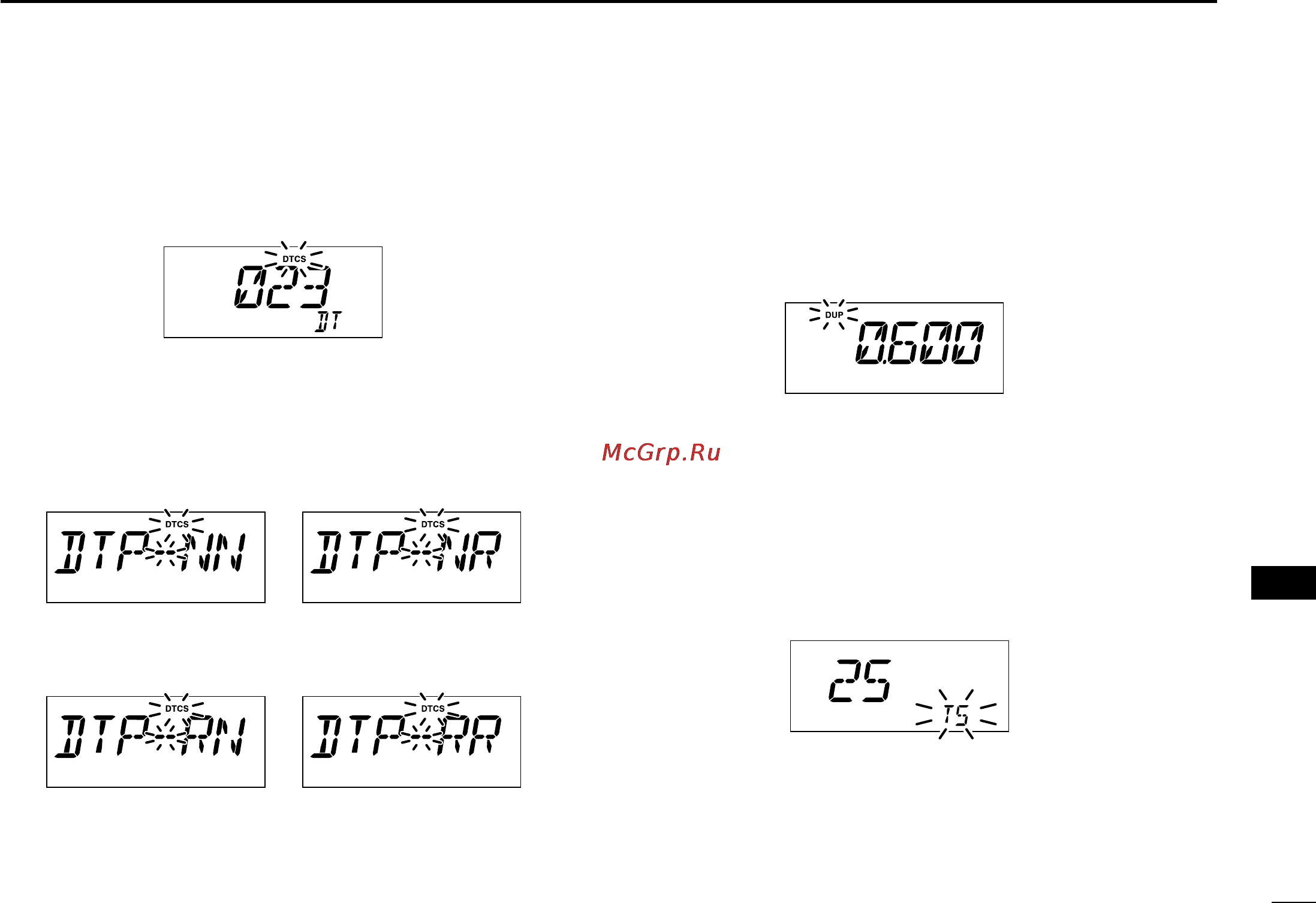

DTCS code
Sets DTCS code (both encoder and decoder) for DTCS
squelch operation. Total of 104 codes are available.
(default: 023)
DD
DTCS polarity
Sets DTCS polarities for transmission and reception from
“NN,” “NR,” “RN” and “RR.” (default: NN)
DD
Offset frequency
Sets the duplex offset frequency within 0 to 20 MHz range.
During duplex (repeater) operation, transmit frequency shifts
the set frequency.
(Default value may differ depending on operating frequency
band and versions.)
DD
Tuning step
Selects tuning step from 5,* 6.25,* 10, 12.5, 15, 20, 25, 30,
50, 100 and 200 kHz for [DIAL] or [
YY
]/[
ZZ
] operation.
(Default value may differ depending on operating frequency
band and versions.)
*Not selectable in 900 MHz band.
• Transmit : normal
Receive : normal
(default)
• Transmit : normal
Receive : reverse
• Transmit : reverse
Receive : normal
• Transmit : reverse
Receive : reverse
ID-800H_1.qxd 2007.06.14 3:09 PM Page 96
