DIGITAL MODE OPERATION
z Set the operating frequency, call signs and other
settings, such as repeater, as desired.
x Push [
SET
B (D-OFF)] to enter message set
mode.
• Push [
YY
] or [
ZZ
] to select “MESSAG” if necessary.
c Push [
SET
B(D-OFF)] or [
ENT
C (T-OFF)] several
times until “TXM-C” appears.
v Push [
YY
] or [
ZZ
] to select the desired message
channel.
b Push [
ENT
C(T-OFF)] then [
YY
] to select “TXM-
ON.”
n Push [
CLR
A(MW)] to exit message set mode.
m Push [PTT] to transmit and send the selected
message simultaneously.
DD
RX message indication
When a call with a message is received, the message can be
stored into the RX message record.
The message is cleared once turning power OFF, or over-
written when another message is received.

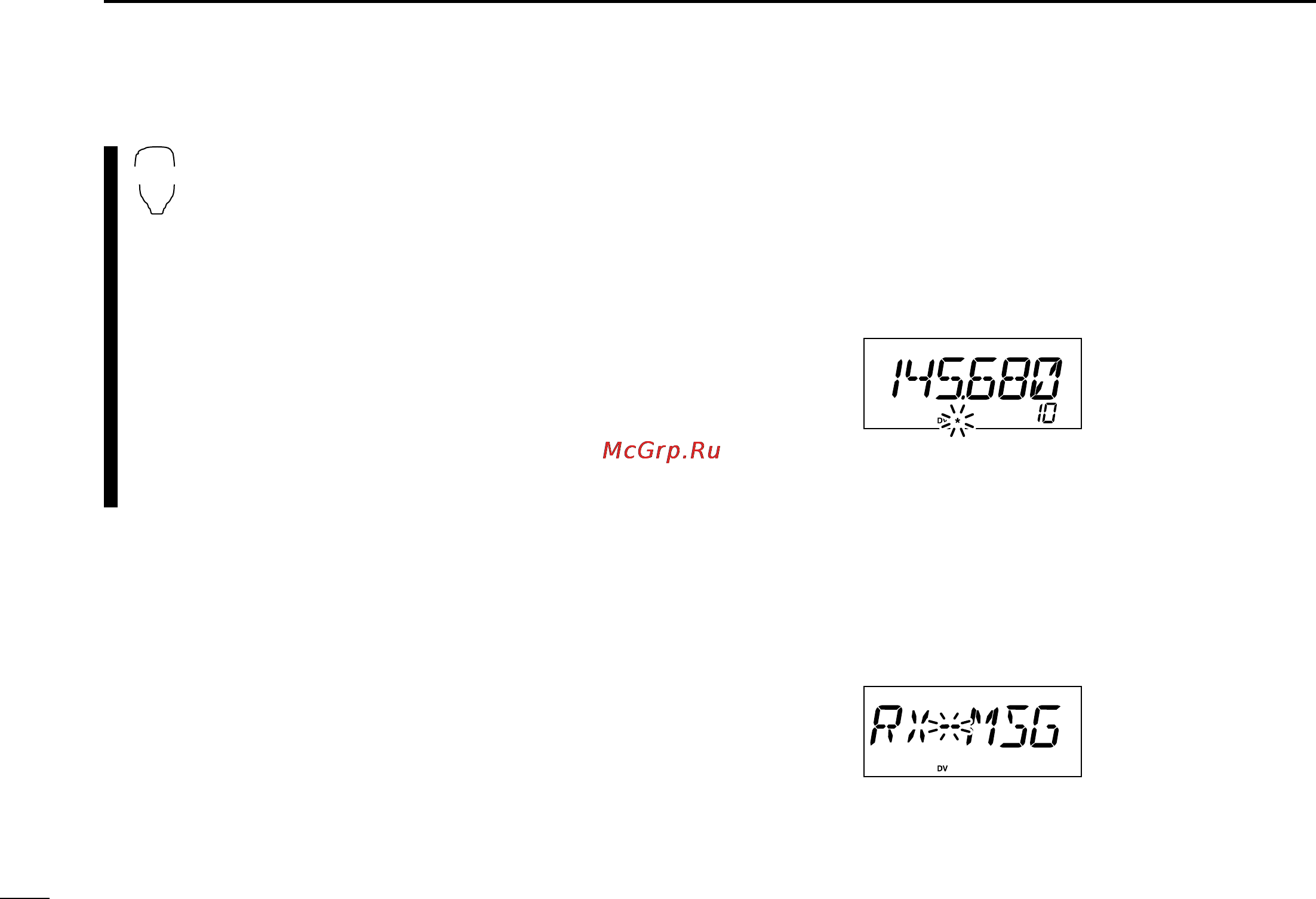

q When the call with a message is received, the digital mes-
sage indicator blinks.
w Push [SET•LOCK] to enter message set mode.
• Rotate [DIAL] to select “MESSAG,” if necessary.
e Push [SET•LOCK] or [S.MW•MW] several times until “RX-
MSG” or “RX-CAL” appears.
• When “RX-CAL” is displayed, rotate [DIAL] to select “RX-MSG.”
• When “RX-CAL” is selected, the station call sign, that the mes-
sage is send, is displayed at the next step.
Push [SET•LOCK] or [S.MW•MW] to display last 6-digit or first
6-digit of the call sign, respectively, in this case.
