32
5
MEMORY OPERATION
5
D Memory/call➪call/memory
q Select the memory/call channel to be transferred.
➥ Push [M/CALL•PRIO] several times to select memory
mode or call channel, then rotate [DIAL] or push
[BAND•MODE] to select the desired memory or call
channel respectively.
w Push [S.MW•MW] momentarily.
•“!” indicator and “-- -- --” indication blink, and shows VFO con-
ditions.
e Rotate [DIAL] to select the target memory channel.
•“C1” or “C2” blinks when the call channel is selected.
• Scan edge channels, 1A/1B, 2A/2B, 3A/3B, 4A/4B, 5A/5B can
also be selected.
r Push and hold [S.MW•MW] for 1 sec. to transfer the se-
lected memory/call channel contents to the target memory.
• The targeted memory and transferred contents are indicated.
z Select the memory/call channel to be trans-
ferred.
➥ Push [MR/CALL] to select memory mode,
then select the desired memory channel
via [
YY
]/[
ZZ
] or keypad.
➥ Push and hold [MR/CALL] for 1 sec. then
push [BAND] to select the desired call
channel.
x
Push [FUNC], then [
CLR
A(MW)] momentarily.
•“!” indicator and “-- -- --” indication blink, and
shows VFO conditions.
c Push [
YY
]/[
ZZ
] to select the target memory
channel.
•
“C1” or “C2” blinks when the call channel is selected.
• Scan edge channels can also be selected.
• The keypad cannot be used for the selection.
v Push [FUNC] then push [
CLR
A(MW)] for
1 sec. to transfer the selected memory/call
channel contents to the target channel.
• The targeted channel and transferred contents
are indicated.
MR/CALL
MW
BAND
[Y]/[Z]

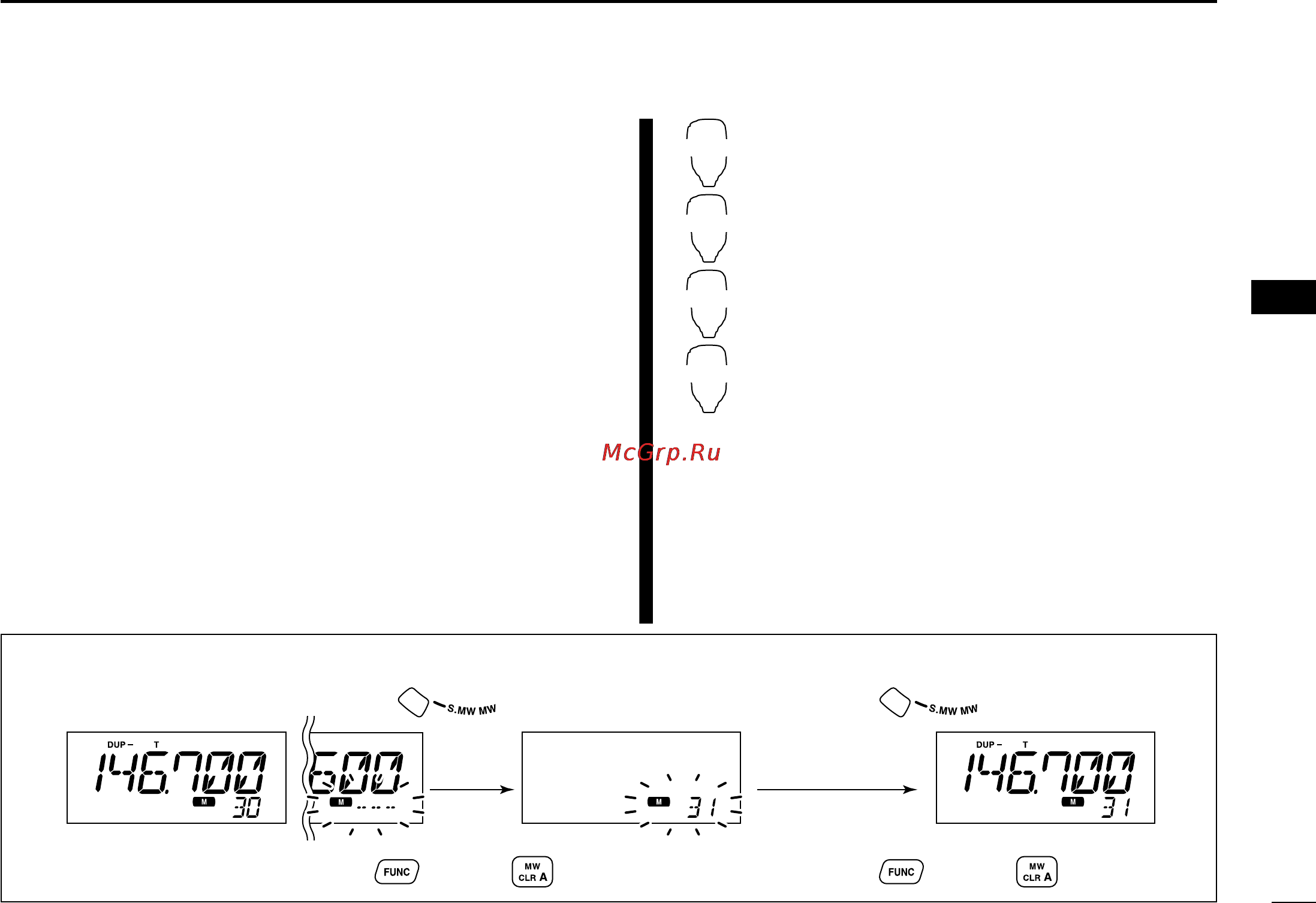

[EXAMPLE]: Transferring memory channel 30 contents to channel 31.
Select the target channel.
Push for 1 sec.
Push then push for 1 sec.
Select the memory channel, then push .
Select the memory channel, push then push .
Front panel operation:
HM-133 operation:
ID-800H_1.qxd 2007.06.14 3:09 PM Page 32
