117
12
OTHER FUNCTIONS
■ Data cloning
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or data
from a personal computer to a transceiver using the optional
CS-D800
CLONING SOFTWARE
.

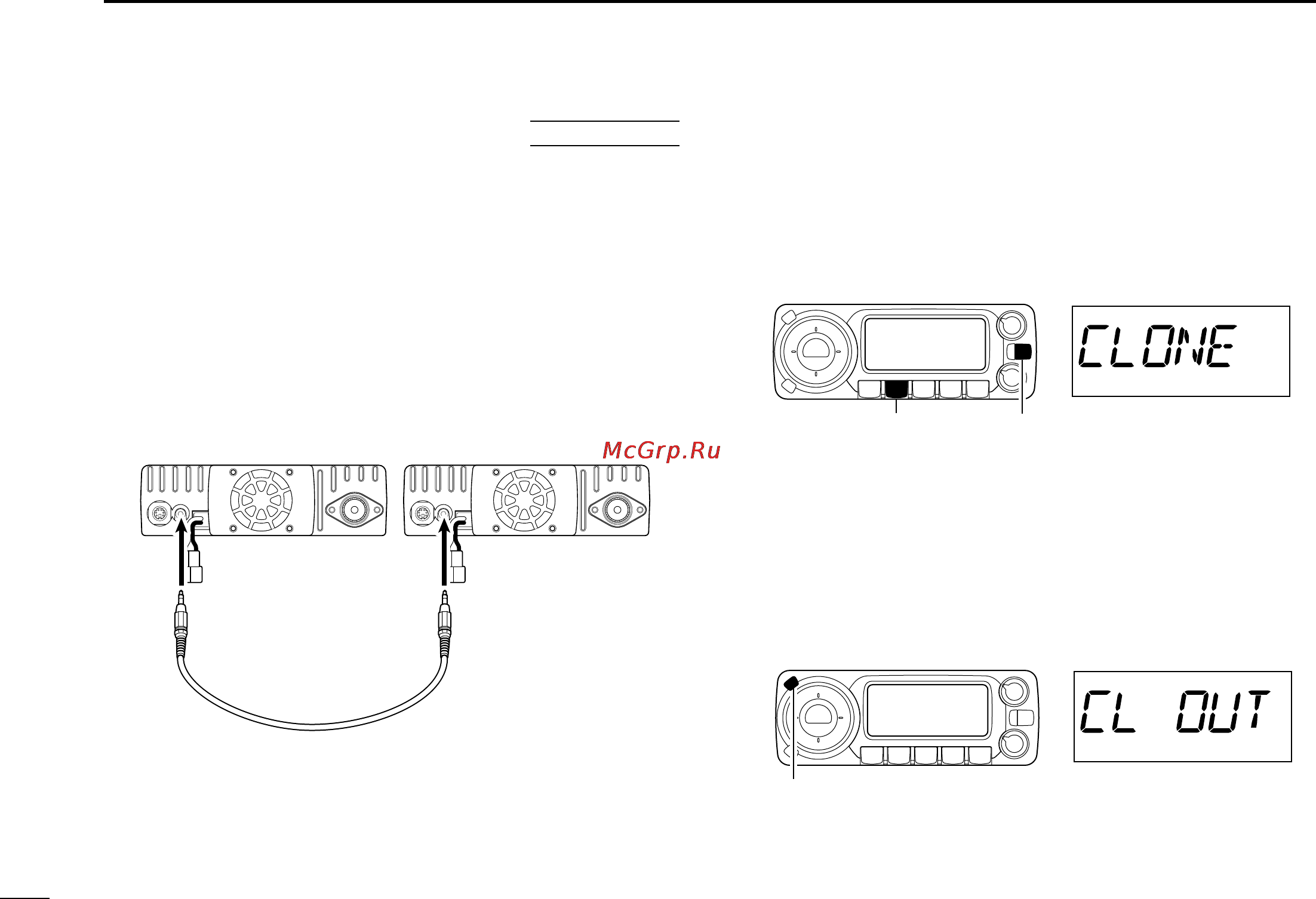

D Cloning between transceivers
q Connect the OPC-474 cloning cable to [SP] jack of the
master and sub-transceivers.
• The master transceiver is used to send data to the sub-trans-
ceiver.
w While pushing [M/CALL•PRIO], turn power ON to enter
cloning mode (master transceiver only— power on only for
sub-transceiver).
•“CLONE” appears and the transceivers enter the clone standby
condition.
e Push [SET•LOCK] on the master transceiver.
•“CL OUT” appears in the master transceiver’s display and the
S/RF indicators show that data is being transferred to the sub-
transceiver.
•“CL IN” appears automatically in the sub-transceiver’s display
and the S/RF indicators show that data is being received from
the master transceiver.
r When cloning is finished, turn power OFF, then ON to exit
cloning mode.
Pushing [SET•LOCK] start cloning.
While pushing [M/CALL•PRIO], turn power ON.
[PWR]
[M/CALL•PRIO]
To [SP]
To [SP]
AT
POWER ON
ID-800H_1.qxd 2007.06.14 3:09 PM Page 117
