OTHER FUNCTIONS
DD

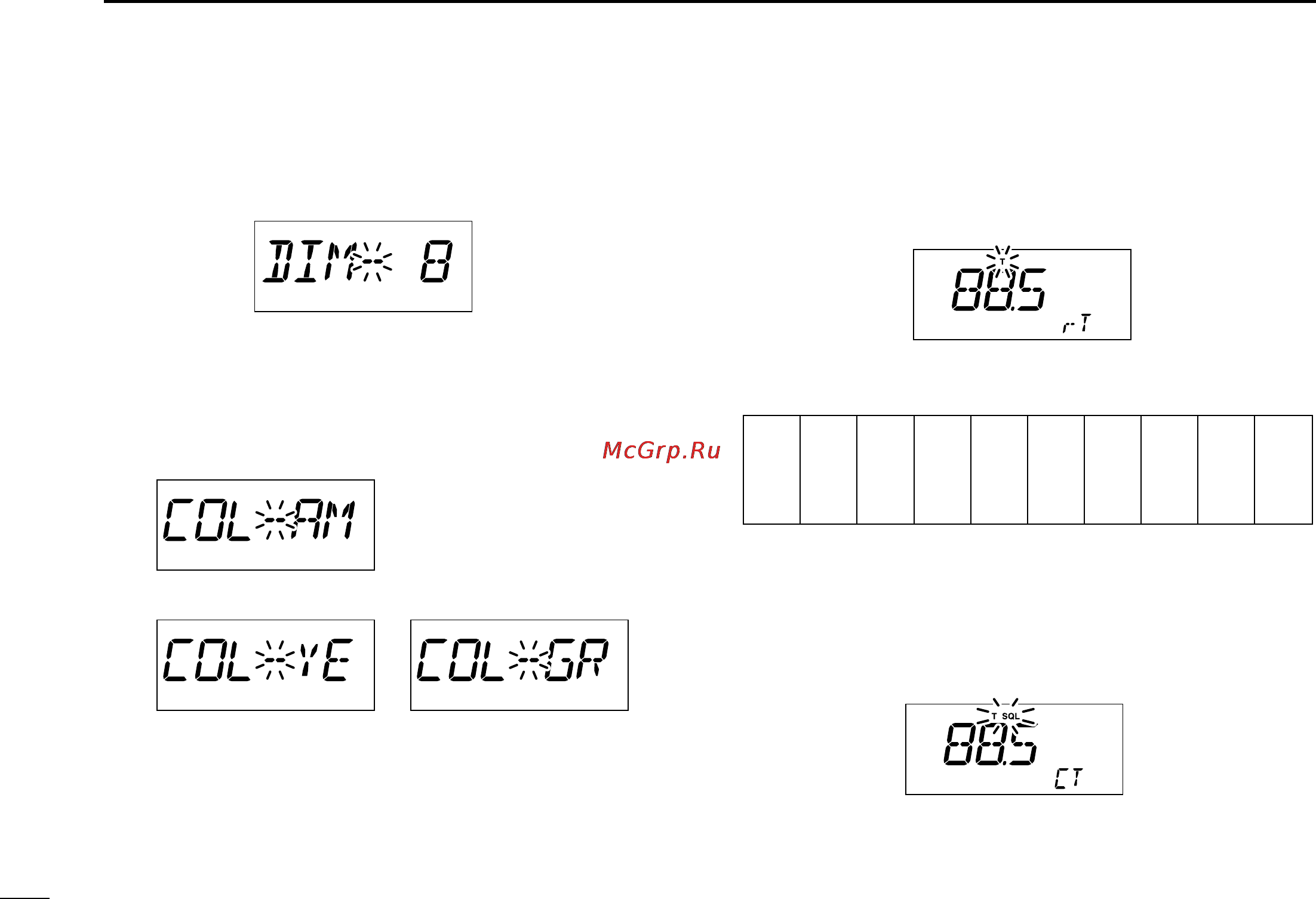

Display dimmer
Adjust to suit lighting conditions.
The levels 1 (dark) to 8 (bright: default) are available.
DD
Display color
The display color can be set to amber (default), yellow or
green.
DD
Repeater tone
Sets subaudible tone frequency (encoder only) for repeater
operation. Total of 50 tone frequencies (67.0–254.1 Hz) are
available. (default: 88.5 Hz)
• Available subaudible tone frequencies
DD
Tone squelch tone
Sets subaudible tone frequency (both encoder and decoder)
for tone squelch operation. Total of 50 tone frequencies
(67.0–254.1 Hz) are available. (default: 88.5 Hz)
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
• Yellow setting
• Amber setting (default)
• Green setting
ID-800H_1.qxd 2007.06.14 3:09 PM Page 95
