108
12
OTHER FUNCTIONS
12
DD

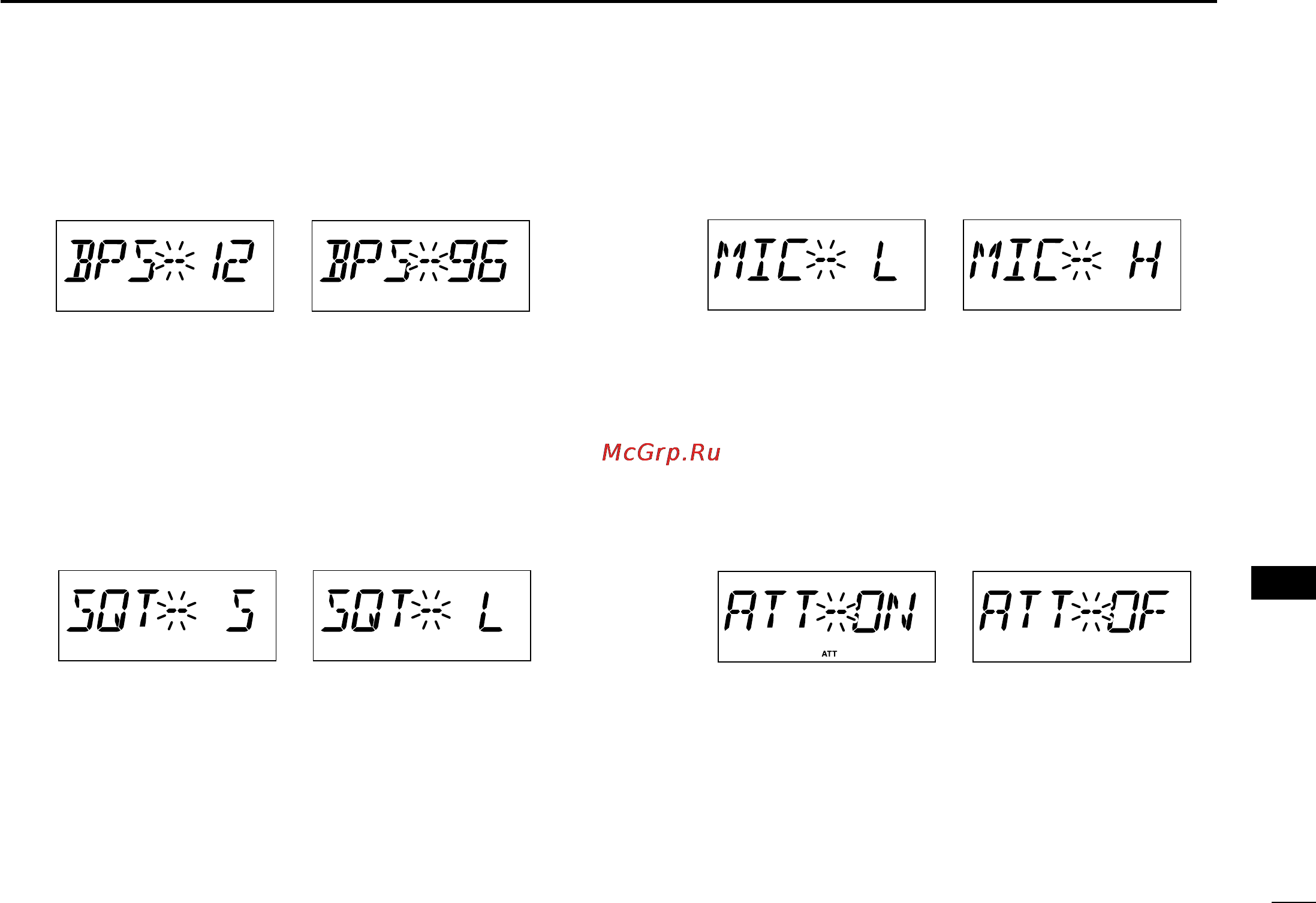

Data transmission speed
Selects the data transmission speed for packet operation
from 1200 bps and 9600 bps. (default: 1200 bps)
DD
Squelch delay
Selects squelch delay from short and long to prevent re-
peated opening and closing of the squelch during reception
of the same signal.
• S : Short squelch delay. (default)
• L : Long squelch delay.
DD
Microphone sensitivity
Selects the microphone sensitivity from high (H) and low (L)
to suits your preference. (default: Low)
DD
Squelch attenuator
Turns the squelch attenuator function ON (default) and OFF.
• ON : The squelch attenuator activates when [SQL]
control is set between 12 o’clock and fully
clockwise position.
• OF : The squelch attenuator does not function.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 108
